Mixed Layout Contact 75 Ohm Coaxial Plug for Belden 1855A
Mixed Layout Contact 75 Ohm Coaxial Plug for Belden 1855A

Mixed Layout Contact 75 Ohm Coaxial Plug for Belden 1855A

Product Code: 31D-0313-16

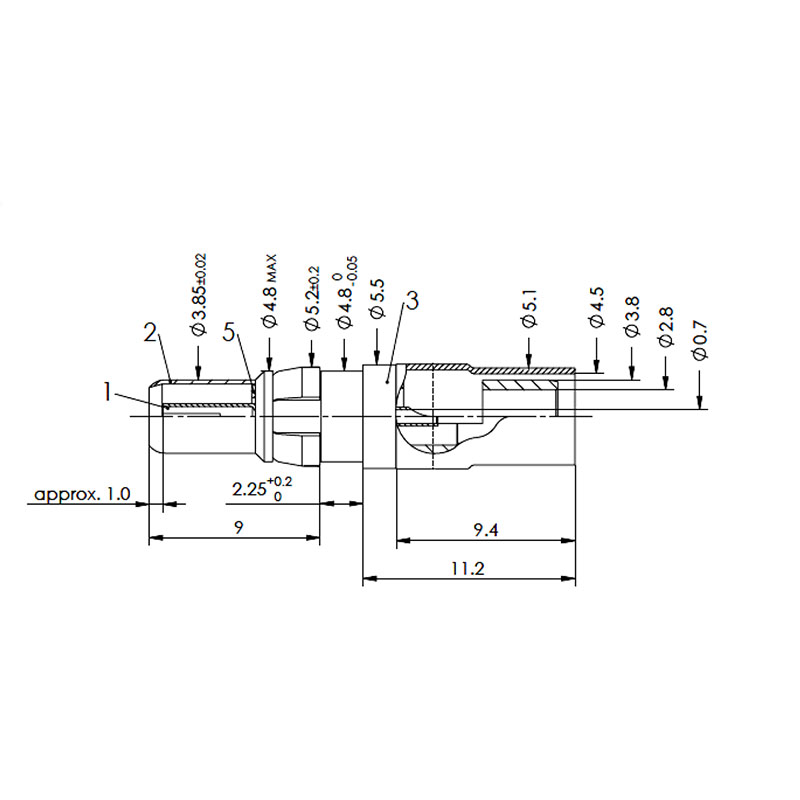

The 31D-013-16 is a Mixed Layout Contact 75 Ohm Coaxial Plug for Belden 1855A.

Impedance 75Ω
Current Rating 2A
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750V
Contact Resistance ≤2.7mΩ
Insulation Resistance ≥10GΩ
Pin Contact Cu Alloy with Au plating
Retaining Clip Cu Alloy
Socket Contact Cu Alloy
Temperature Range -55 to 135°C
Mating Cycles (Standard) ≥500
Mating Cycles (Low Cost) ≥200
Processing Hand Soldering
