SCA08-XXPFX-XXXX – M8 Front Fastening Plug Cable Assembly (A or B Code)

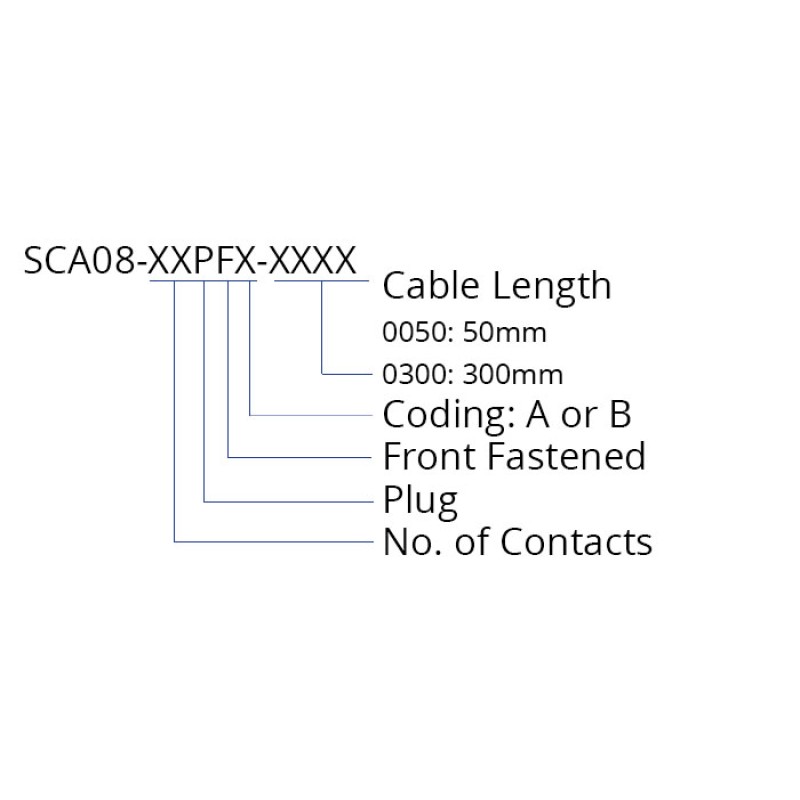

Product Code: SCA08-XXPFX-XXXX

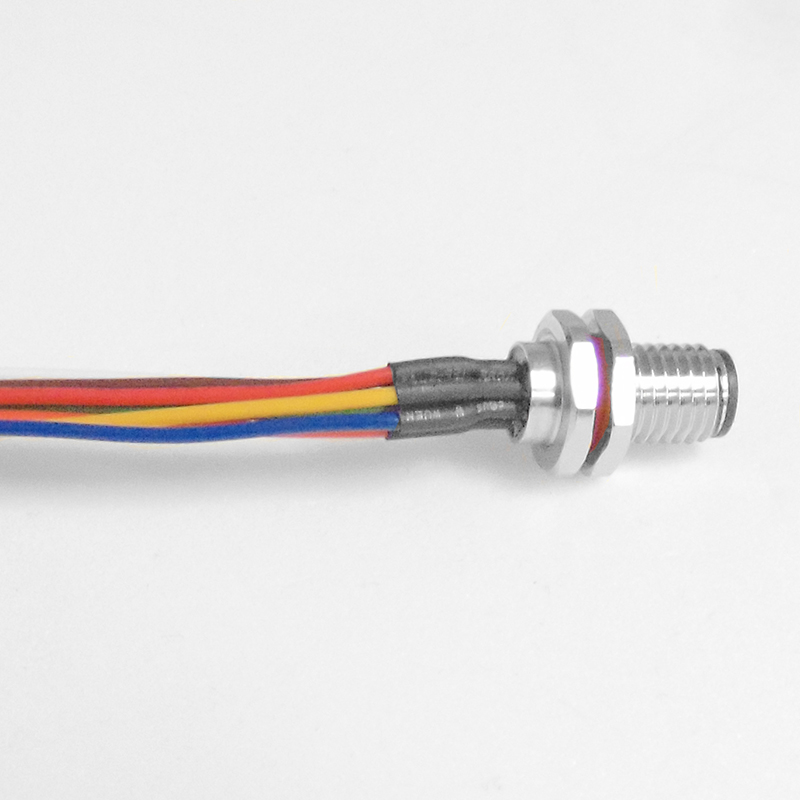

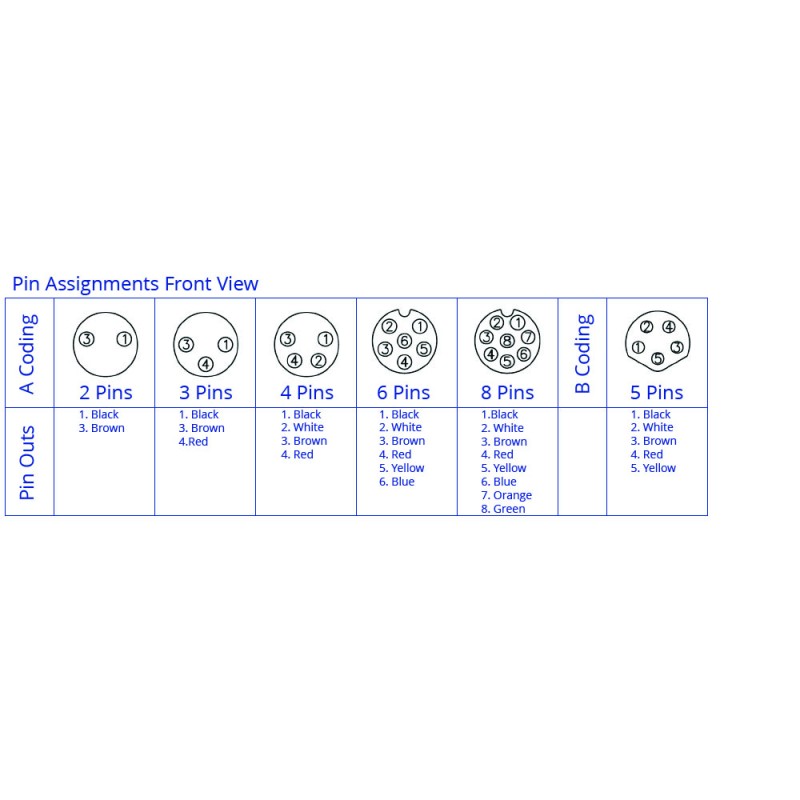

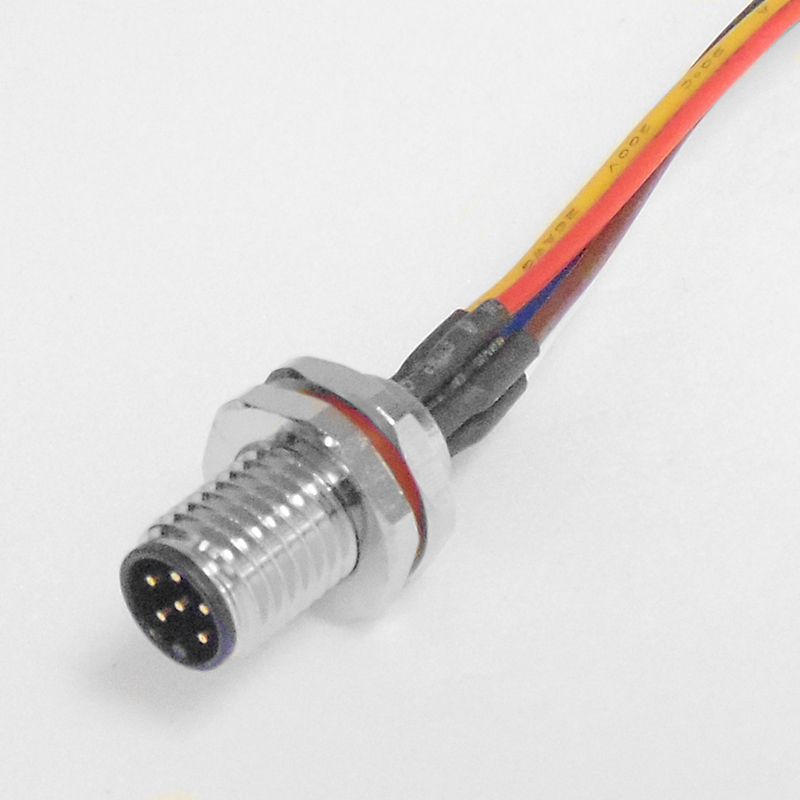

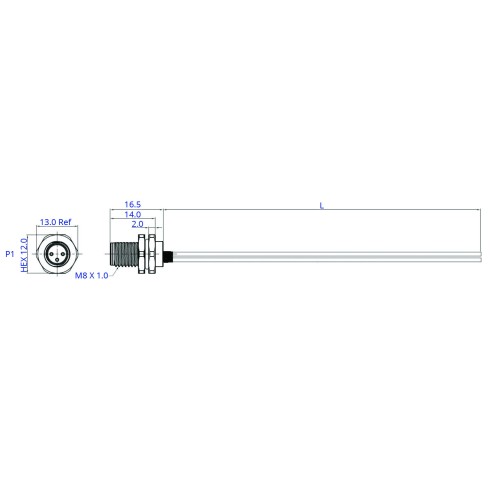

The SCA08-XXPFX-XXXX is an M8 front fastening panel mounted plug cable assembly with a stub end for completion with a termination of your choice. The M8 plug is available in an A or B coding with 2 to 8 pin options. The cable is available in a standard length of 50 or 300mm, but we can offer a bespoke cable assembly to any length and with any termination.

Features

Can be used for Power or signal pins
IP67 Waterproof rating
Suitable for a wide range of applications
Available in standard lengths of 50 or 300mm.
Can be supplied as a bespoke cable assembly with or without terminations to the other end.

Electrical

Contact Resistance	≤5mΩ
Insulation Resistance	Connector ≥100MΩ, Cable ≥10MΩ
Connector Type	Male
Current Rating	3A AC/DC (2 to 5 Pins), 1.5A AC/DC (6 to 8 Pins)
Voltage Rating	60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
