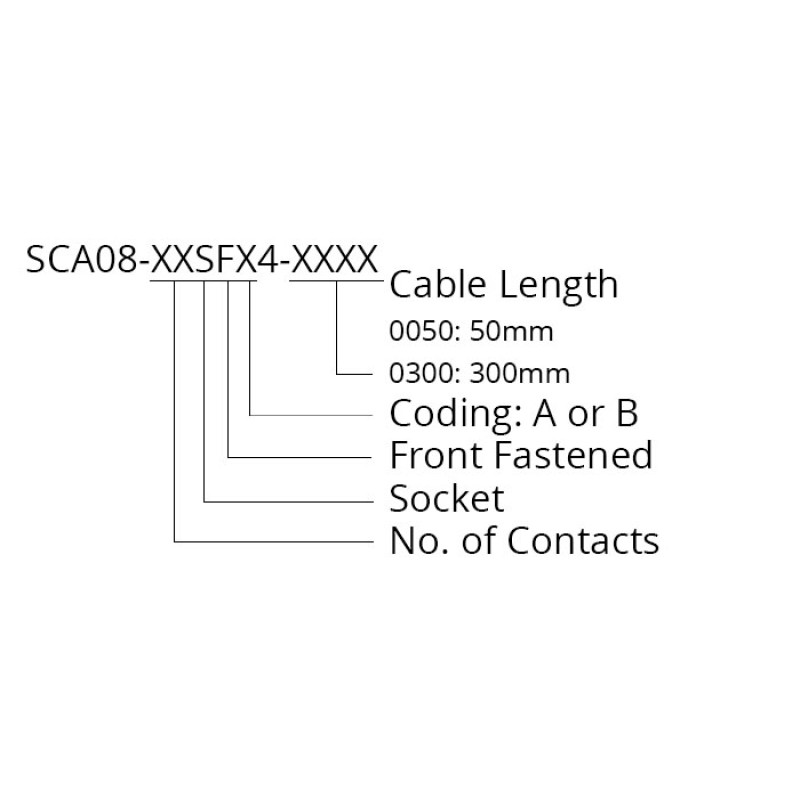

Product Code: SCA08-XXSFX4-XXXX

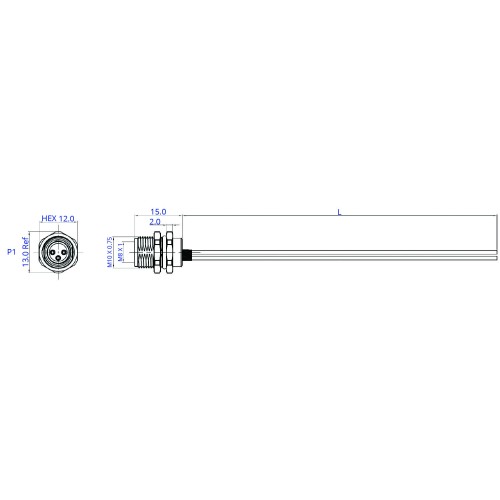

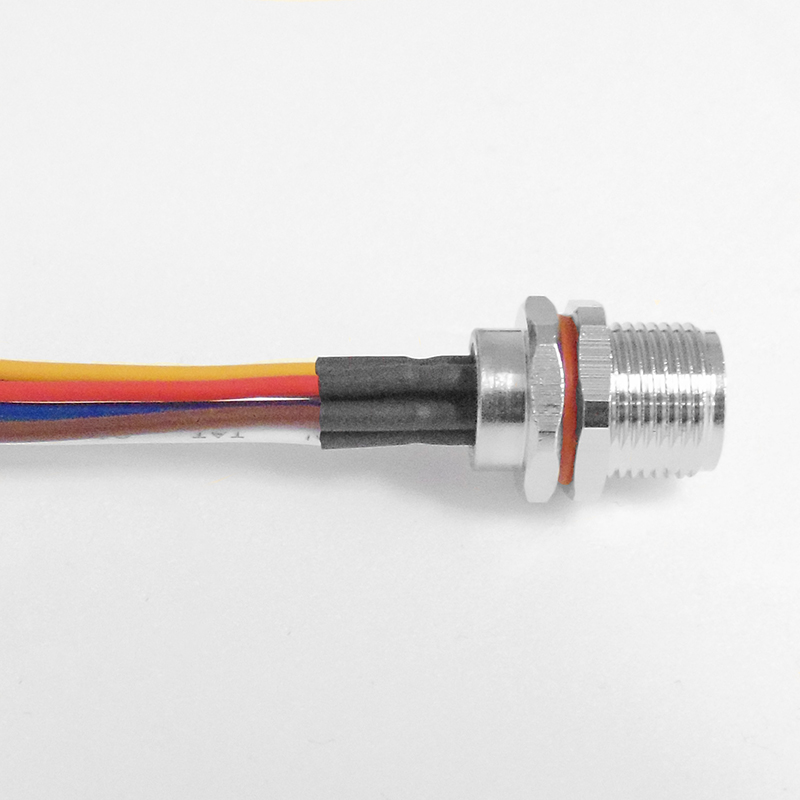

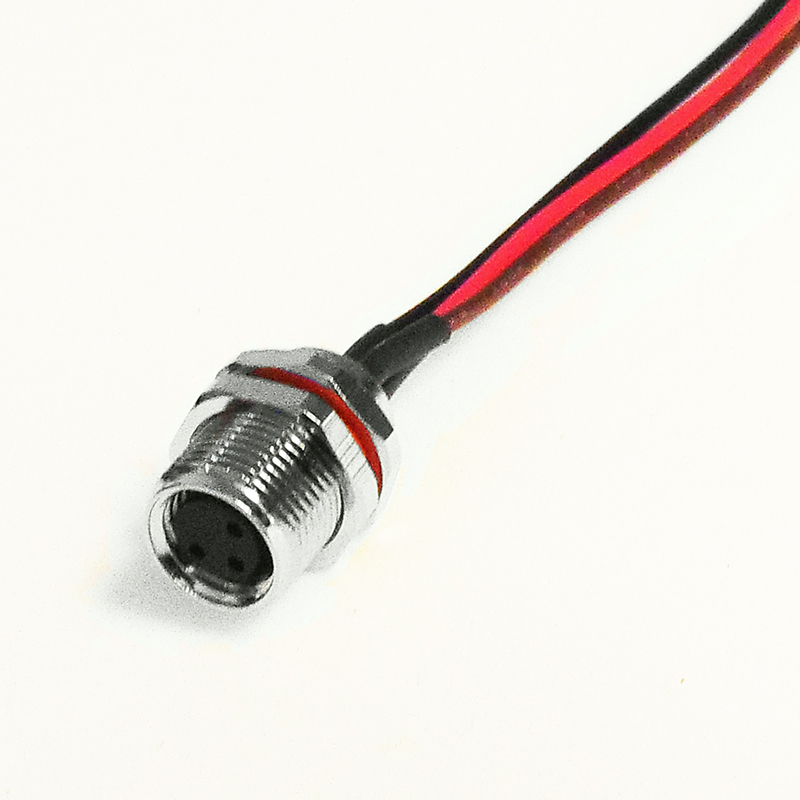

The SCA08-XXSFX4-XXXX is an M8 front fastening panel mount socket cable assembly with a stub end for completion with a termination of your choice. The M8 socket is available in an A or B coding with 2 to 8 pin options. The cable is available in a standard length of 50 or 300mm, but we can offer a bespoke cable assembly to any length and with any termination.

Features

  • Can be used for power or signal pins
  • IP67 Waterproof rating
  • Suitable for a wide range of applications
  • Available in standard lengths of 50 or 300mm
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end
Contact Resistance ≤5mΩ
Insulation Resistance Cable ≥10MΩ, Connector ≥100MΩ
Connector Type Female
Current Rating 1.5A AC/DC (6 to 8 Pins), 3A AC/DC (2 to 5 Pins)
Voltage Rating 60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Waterproof Rating IP67
Operating Temperature -40 to 100oC
Mounting Type Cable

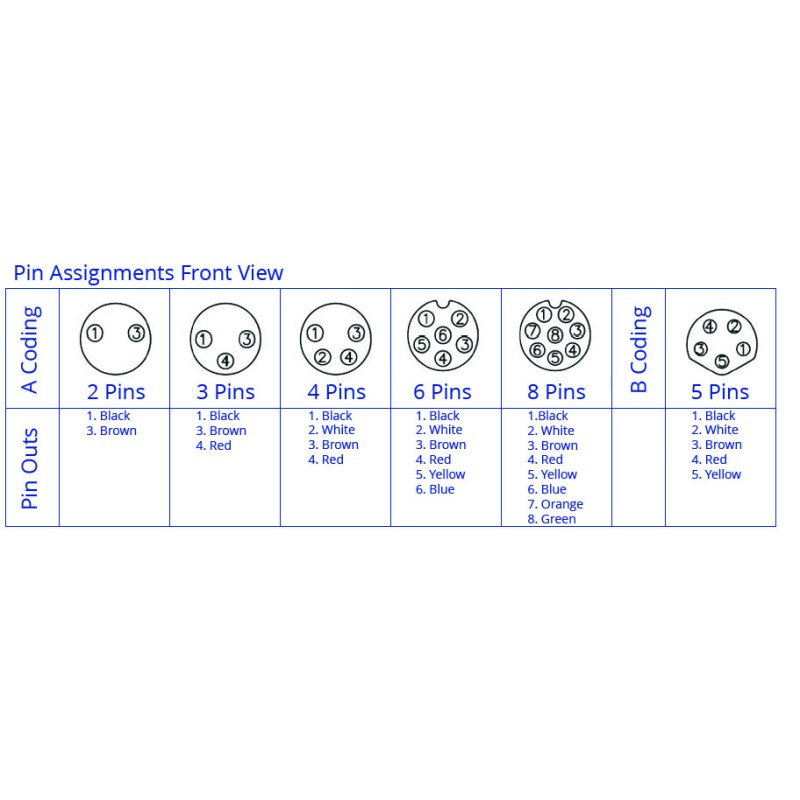

Coding A, B
Contact 2, 3, 4, 5, 6, 8
Connector Part Number CC08-XXP-FX-PM4
Fastening Front Fastening
