SCA12-08SFXX-XXXX – M12 Front Fastening Socket Cable Assembly (X Code)

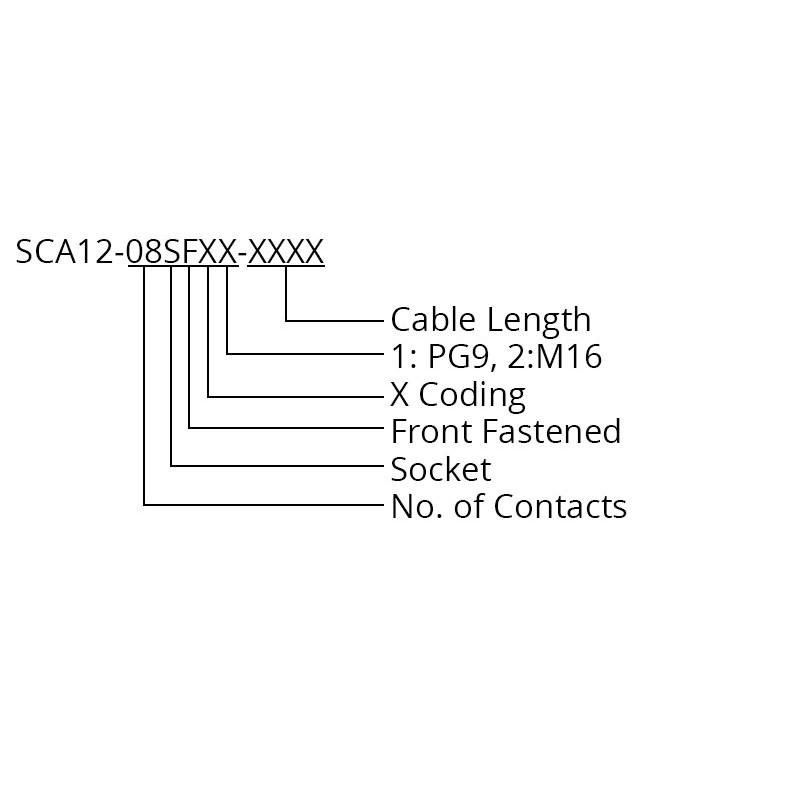

Product Code: SCA12-08SFXX-XXXX

The SCA12-08SFXX-XXXX is an M12 socket cable assembly with a stub end for completion with a termination of your choice. This M12 socket is an 8 pin, X code connector with a front fastening nut for panel mounting. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

  • IP67 Waterproof rating
  • Offering speeds up to 10Gbps
  • Suitable for a wide range of applications

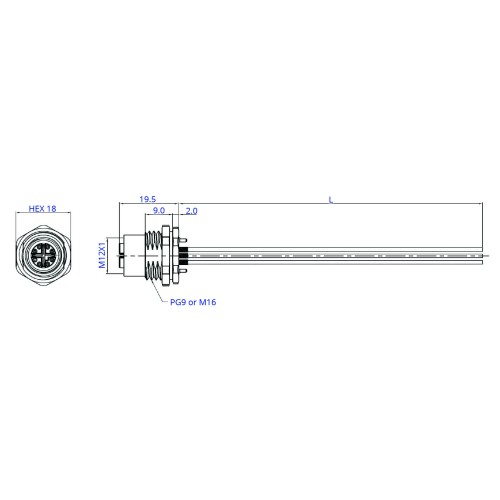

  • Available with a choice of nut size, PG9 or M16
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end.
Contact Resistance ≤5mΩ
Insulation Resistance Cable ≥10MΩ, Connector ≥100MΩ
Connector Type Female
Current Rating 0.5A
Voltage Rating 60V DC, 30V AC
Waterproof Rating IP67
Operating Temperature -25 to 85oC
Mounting Type Cable
Coding X

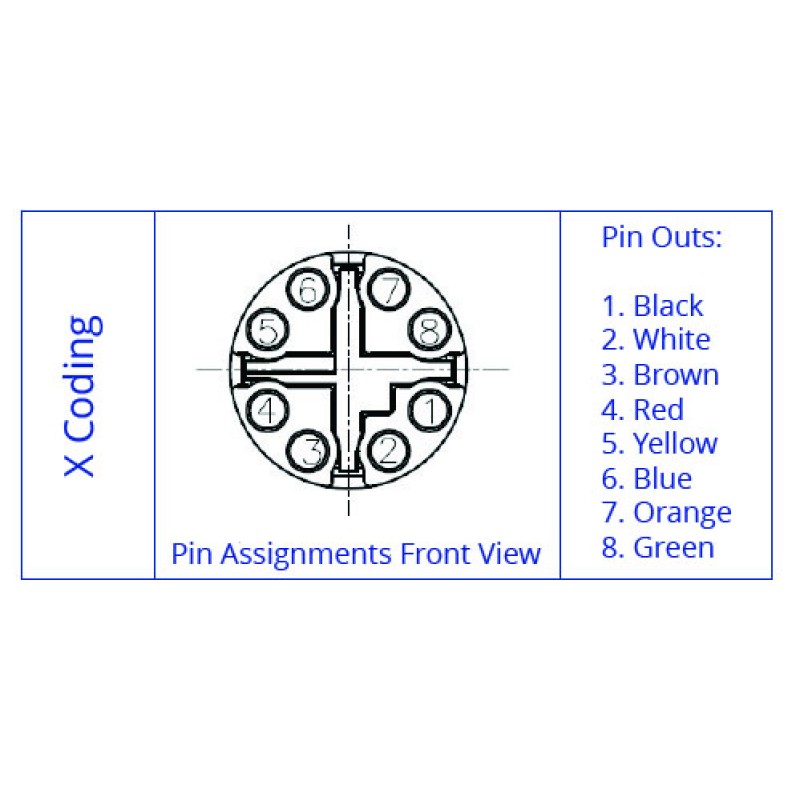

Contact 8
Connector Part Number CC12-08F-FX-PMSX
Fastening Front Fastening
