SCA12-XXPFXX-XXXX – M12 Front Fastening Plug Cable Assembly (A or D Code)

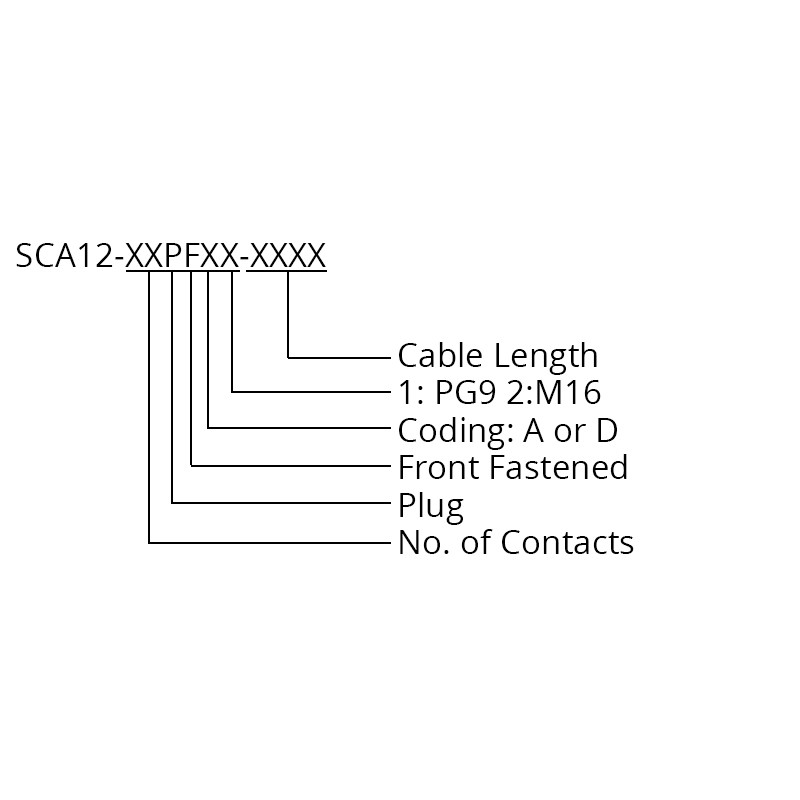

Product Code: SCA12-XXPFXX-XXXX

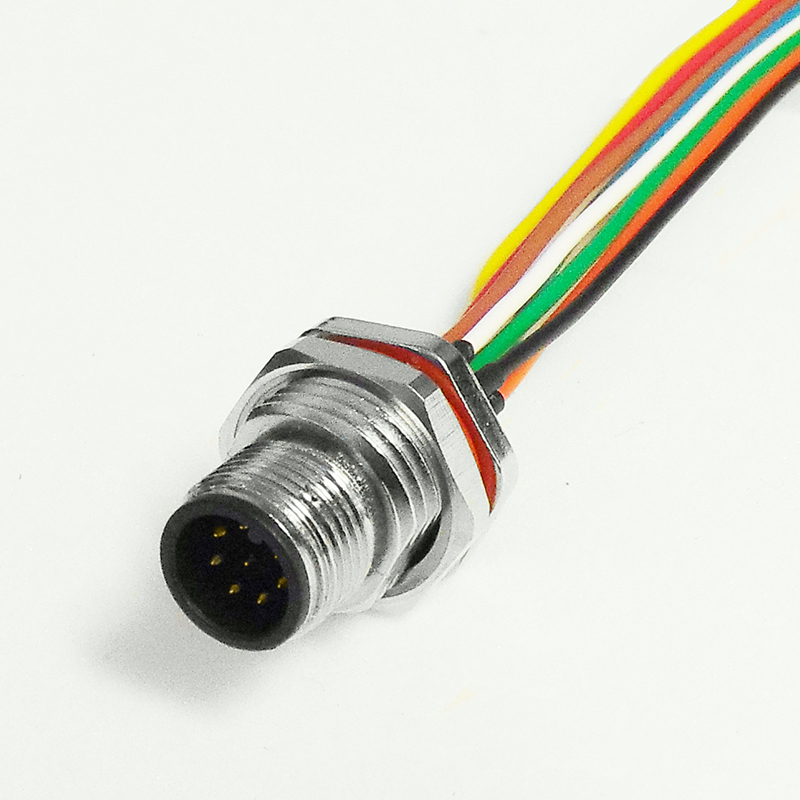

The SCA12-XXPFXX-XXXX is an M12 plug cable assembly with a stub end for completion with a termination of your choice. The M12 plug is available in an A or D coding with 2 to 12 pin options. The front panel mount fastening is available with either a PG9 or M16 size nut. The assembly can be supplied to yor required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

Can be used for power or signal pins
IP67 Waterproof rating
Suitable for a wide range of applications

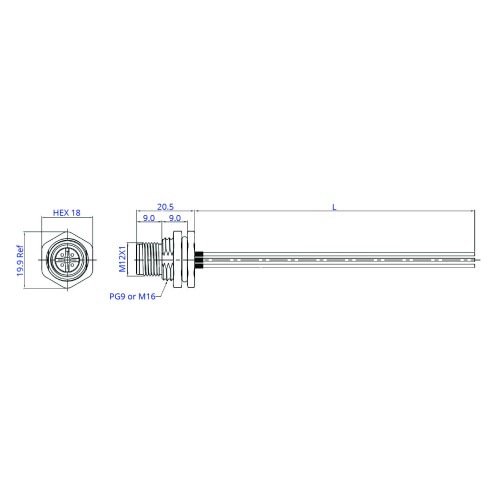

Available with a choice of nut size, PG9 or M16
Can be supplied as a bespoke cable assembly with or without terminations to the other end.

Electrical

Contact Resistance	≤5mΩ
Insulation Resistance	Cable ≥10MΩ, Connector ≥100MΩ
Connector Type	Male
Current Rating	4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins)
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins)
