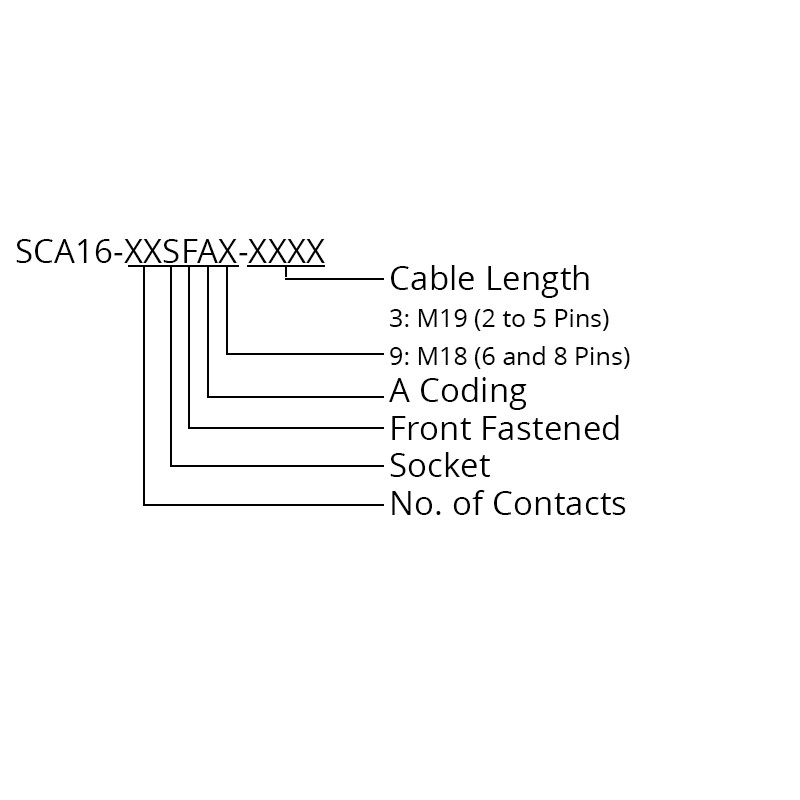

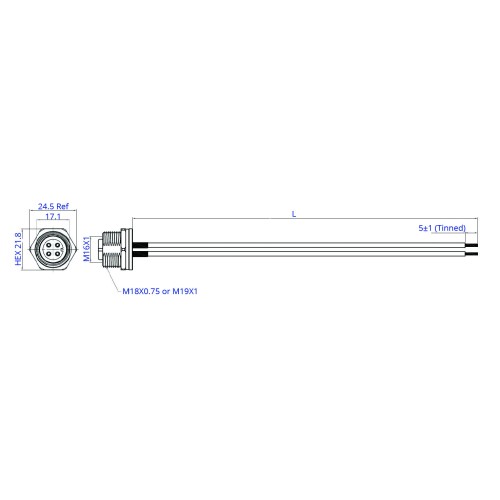

The SCA16-XXSFAX-XXXX is an M16 socket cable assembly which comes as standard with a stub end. The front fastening connector is available in an A coding and with 2 to 8 pin options. The connector is supplied with either an M18 or M19 nut, depending on the number of pins. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.
Features
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | Cable ≥10MΩ, Connector ≥100MΩ |
| Connector Type | Female |
| Current Rating | 10A AC/DC (2 to 5 Pins), 5A AC/DC (6 and 8 Pins) |
| Voltage Rating | 60V AC/DC |
| Waterproof Rating | IP67 |
| Operating Temperature | -40 to 100oC |
| Mounting Type | Cable |
| Coding | A |
| Contact | 2, 3, 4, 5, 6, 8 |
| Connector Part Number | CC16-XXS-FA-PMX |
| Fastening | Front Fastening |
The CC16-XXS-FA-PMX is a M16 circular socket connector which is available with 2 to 8 pin options in an A coding. The connector is front fastening panel mounted and features solder buckets to the rear for mounting on cable. The connector can be purchased as a single connector or as part as a standard cable assembly (part number SCA16-XXSFAX-XXXX) or a bespoke cable assembly with different termination options.
