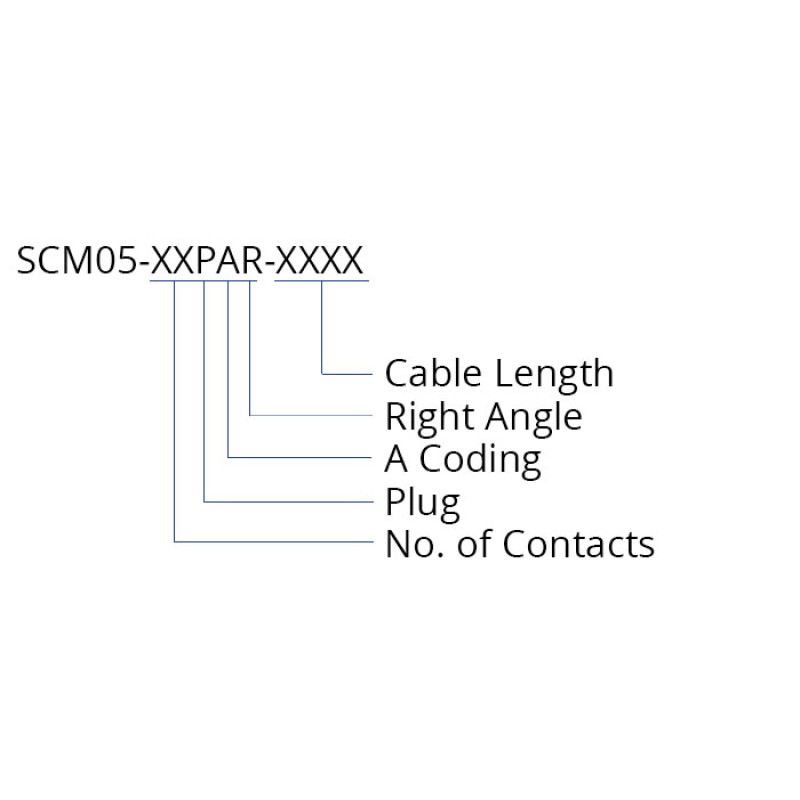

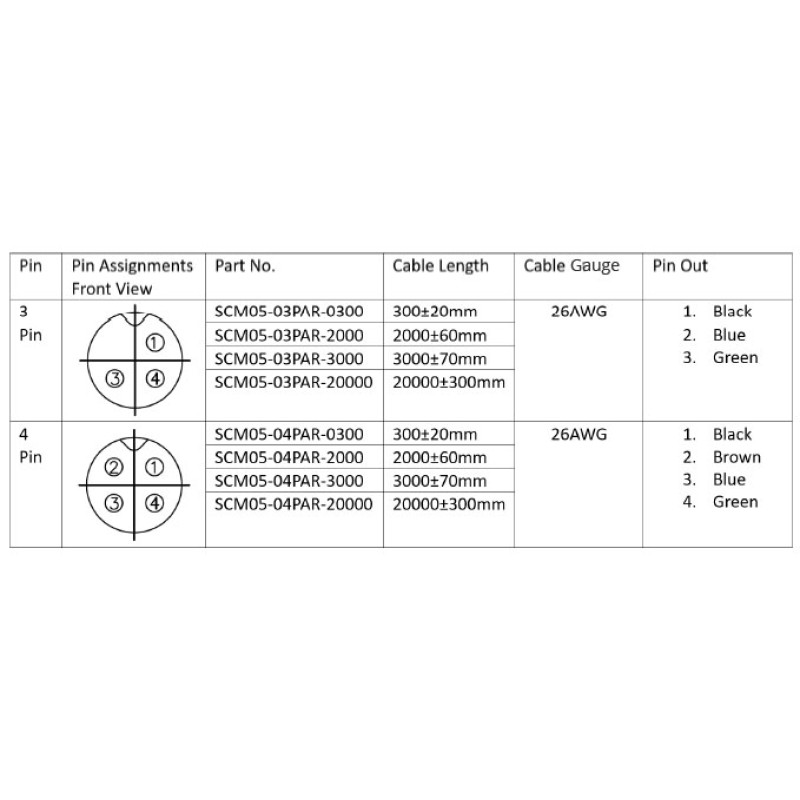

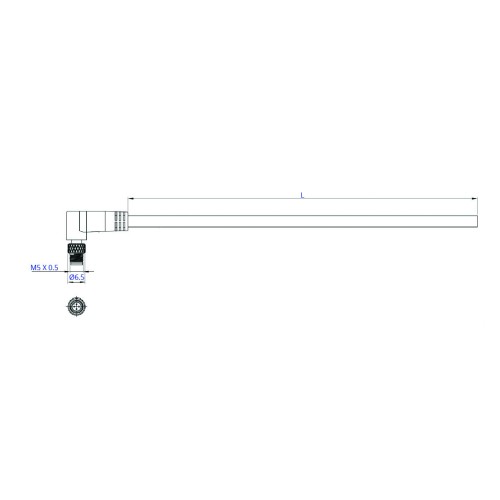

The SCM05-XXPAR-XXXX is an M5 overmoulded cable right angle plug assembly with a stub end. The plug is available with 3 or 4 pins in an A coding and the cable assembly is offered in standard lengths of 300mm, 2m, 3m and 20m. Bespoke cable assemblies of any length and with mixed or similar terminations are also available. This cable assembly offers a solution for sensor systems in demanding and harsh environments, providing speeds of up to 10Gbit/s.

Features

• Over-moulded cable assembly
• Can be used for Power or signal pins
• IP67 Waterproof rating
• Suitable for a wide selection of applications including automotive and process control
• Available in standard lengths of 300mm, 2m, 3m and 20m.
• Can be supplied as a bespoke cable assembly with or without terminations to the other end.
