SCM08-XXSXSS-XXXX – M8 Shielded Over-moulded Socket Cable Assembly (A or B Code)

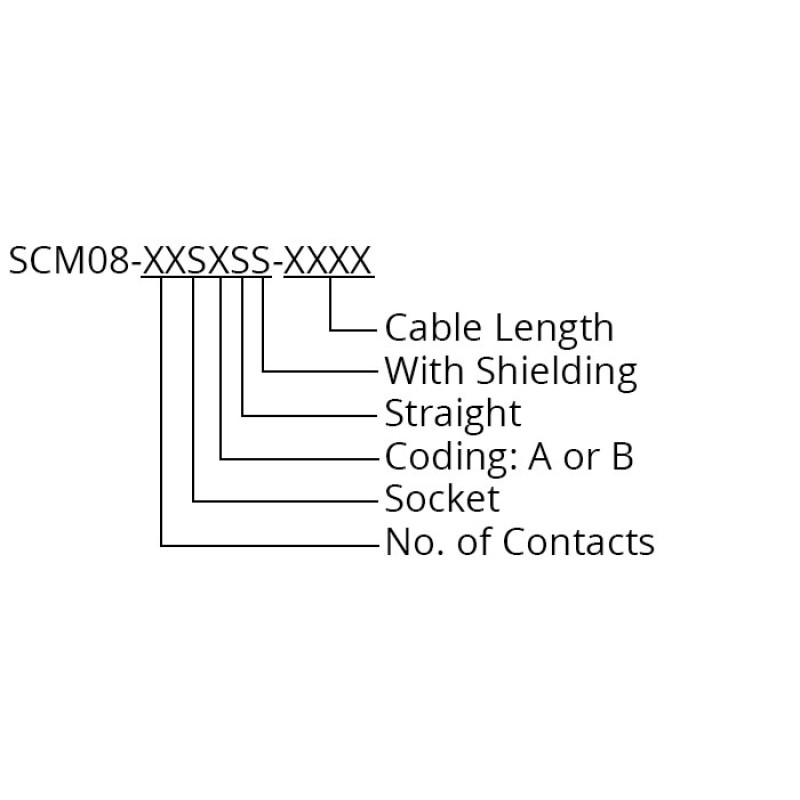

Product Code: SCM08-XXSXSS-XXXX

The SCM08-XXSXSS-XXXX is an M8 shielded over-moulded socket cable assembly with a stub end for completion with a termination of your choice. The M8 socket is available in an A or B coding with 2 to 8 pin options. The cable is available in standard lengths of 0.5, 1, 1.5 and 2 metres, but we can offer a bespoke cable assembly to any length and with any termination.

Features

Can be used for Power or signal pins
IP67 Waterproof rating
Suitable for a wide range of applications
Available in standard lengths of 0.5, 1, 1.5 and 2 metres.
Can be supplied as a bespoke cable assembly with or without terminations to the other end.

Electrical

Current Rating	3A AC/DC (2 to 5 Pins), 1A AC/DC (6 to 8 Pins)
Voltage Rating	60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	Cable ≥10MΩ, Connector ≥100MΩ
Connector Type	Female

Environmental

Operating Temperature	-40 to 80oC
Waterproof Rating	IP67

General Information

Coding	A, B

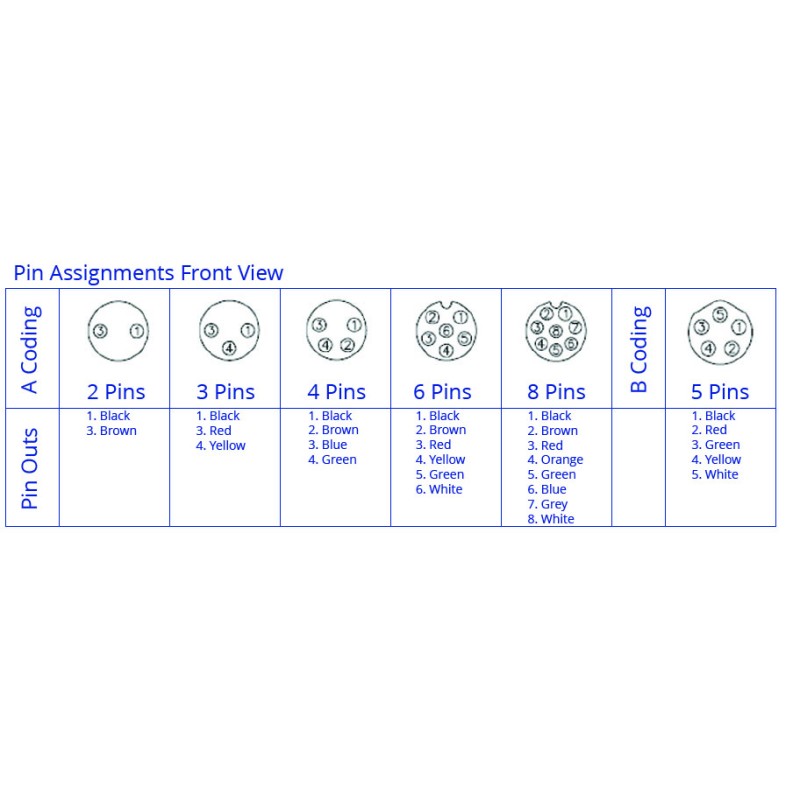

Contact	2, 3, 4, 5, 6, 8
Connector Part Number	CC08-XXP-X-MMS
Mounting Type	Cable
