TLG124 - Hand Crimp Tool for Coaxial Connectors (Turquoise)

XBT-1069-NGXX – BNC Plug for 12G Applications (Standard Version)

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while
meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve peak design performance we recommend using Cambridge Connectors 12GHz CoaxVision™ BNC plug and socket.

The XBT-1069-NGXX connector is a cable mounted plug which can be used with Belden cable types 1694A, 4694R, 4855R, 4505R and 4794R.

The following tools are recommended for use with this connector:
XBT-1069-NGAB = TLG 109
XBT-1069-NGAS = TLG 124
XBT-1069-NGBA = TLG 109 or TLG 110
XBT-1069-NGDE = TLG 109 or TLG 110

XPT-D004-NGAS – Micro BNC Cable Terminated Plug for 12G Applications

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection.

The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs, designed for use with 12GHz cable (such as Belden 1694A, 4694R with a maximum diameter of 7.95mm).

The XPT-D004-NGAS connector is a cable mounted Micro BNC plug, is a streamlined slimmer body version of our XPT-D001-NGAS.

The following tools are recommended for use with this connector:
XPT-D004-NGAS = TLG 124

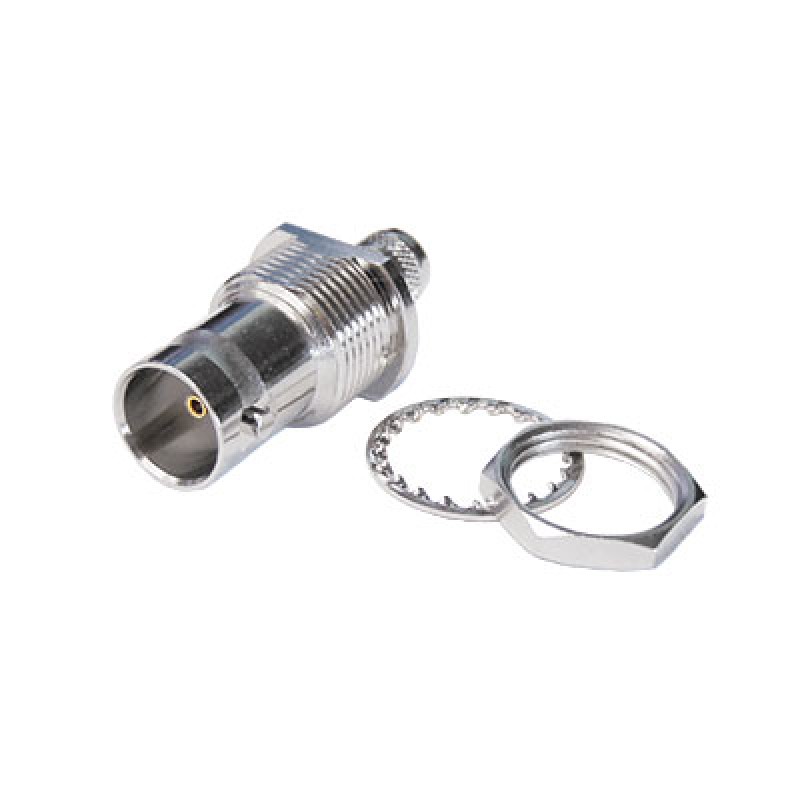

XBT-1071-NGAS – BNC Bulkhead Cable Mounted Socket

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and meeting the JIIA CoaXPress specification. These high
performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz BNC plugs, designed for use with in the AS cable group such as Belden 1694A and 4694R.

The XBT-1071-NGAS connector is a cable mounted BNC plug, which can be used with Belden cables for 12G applications.

The following tool is recommended for this connector:
XBT-1071-NGAS = TLG124
