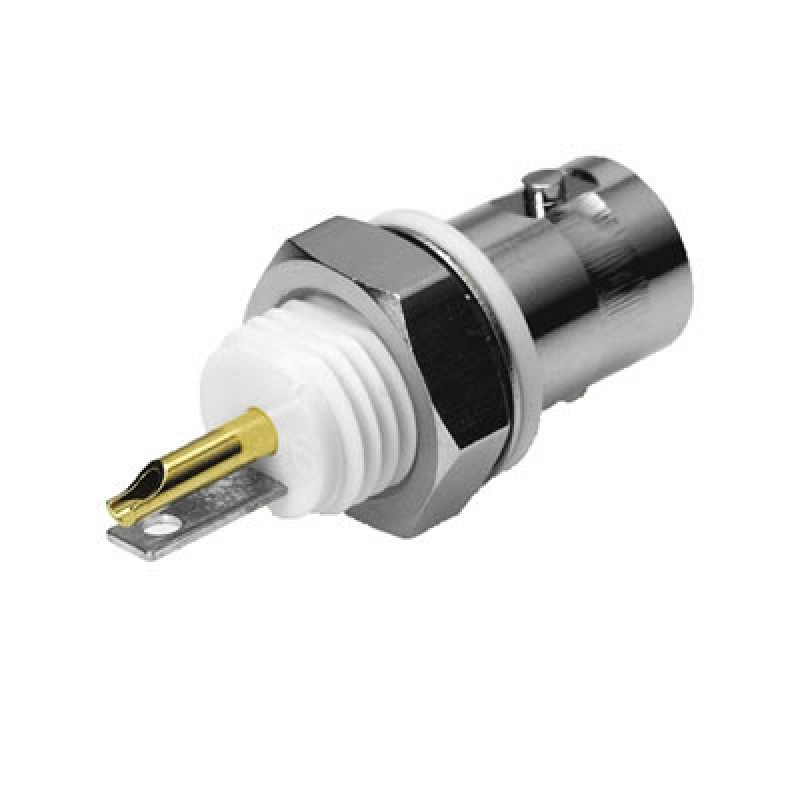

This BNC Bulkhead socket is a 75Ω Connector, which supports frequencies up to 1GHz and has a socket bucket termination to the cable. The connector is supplied with nut and washer.
| Impedance | 75Ω |
| Frequency Range | 0 – 1GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Au plated |
| Insulators | Derlin |
| Cable Types | Cable Group AB RG59, Belden 1505A, RG140/U, Belden 4505R |
