The TLG111 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1066-NGBA
XBT-1064-NGBA
XGT-8000-NGAS

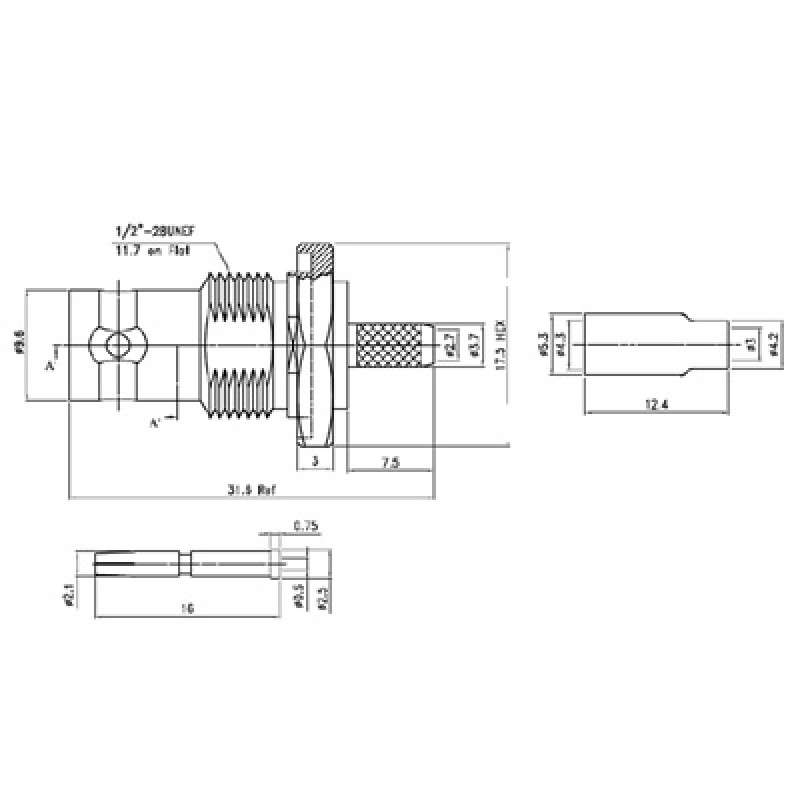

The XBD-1014-NGAF is a bulkhead mounting socket for cable group AF, which includes RG179 and is suitable for frequencies up to 1GHz and with an impedance of 75Ω. The connector is supplied with nut and washer.
The following tools are recommended for this connector:
XBD-1014-NGAF = TLG 111
| Impedance | 75Ω |
| Frequency Range | 0 – 1GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Au plated |
| Insulators | Delrin |
| Cable Types | Cable Group AF RG179 |
The TLG111 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1066-NGBA
XBT-1064-NGBA
XGT-8000-NGAS
