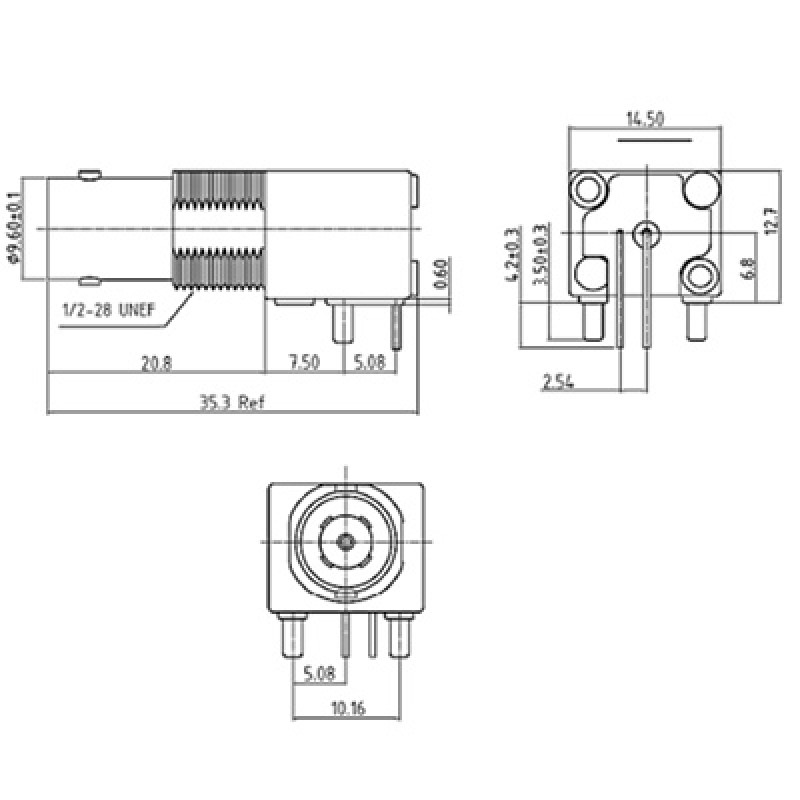

Download Engineering Drawing
Request 3D Model / Engineering Data
Request Quotation / Sample

XBL-1048-NGAY – PCB Right Angle Mounted Bulkhead Connector

Product Code: XBL-1048-NGAY

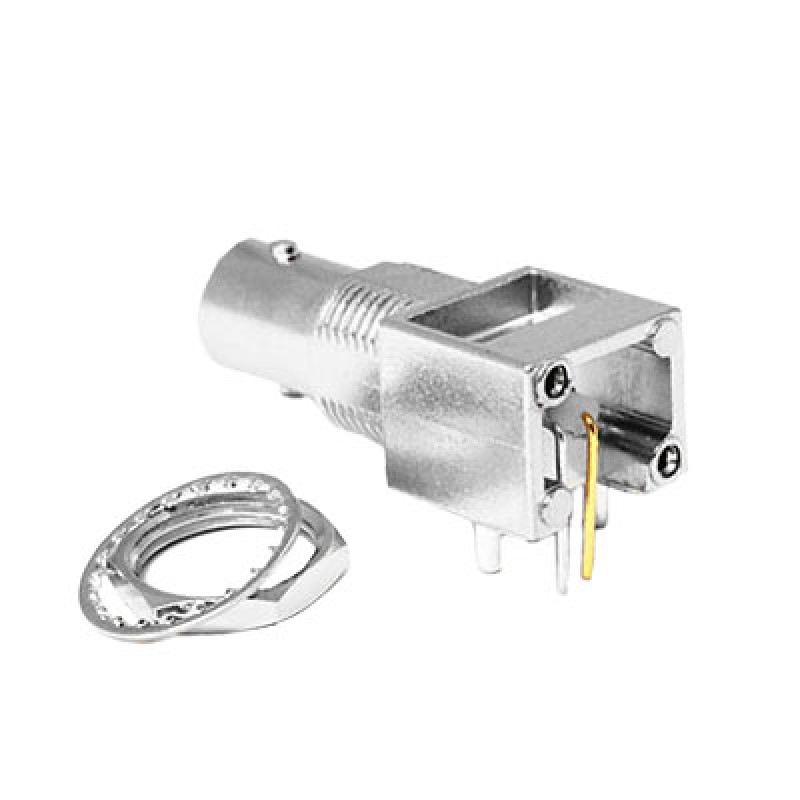

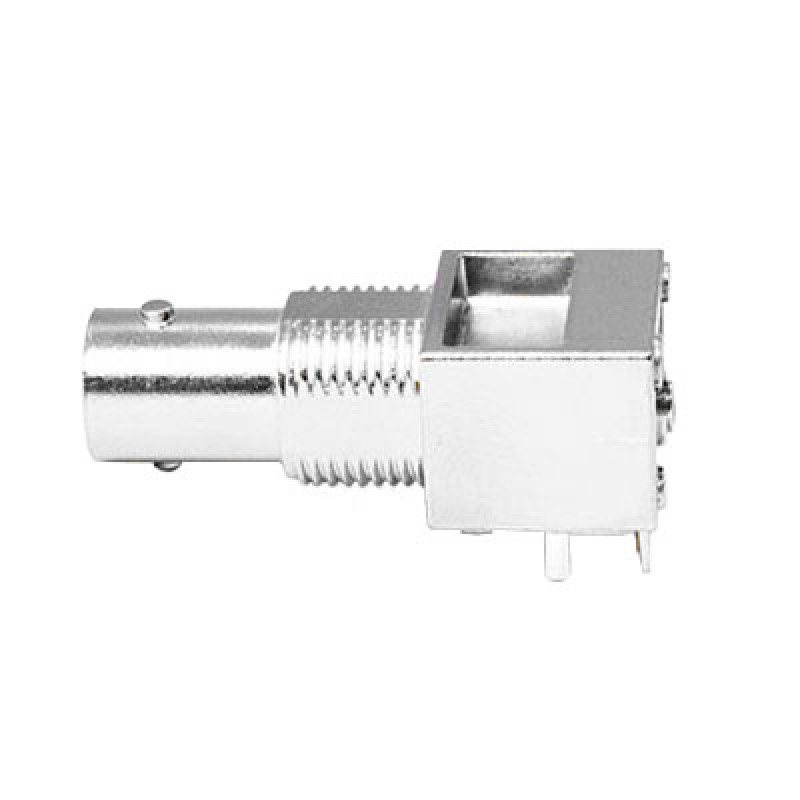

The XBL-1048-NGAY is a PCB right angle mounted BNC bulkhead connector which is suitable for frequencies up to 1GHz. The connector is supplied with nut and washer.

Impedance 75Ω
Frequency Range 0 – 1GHz
