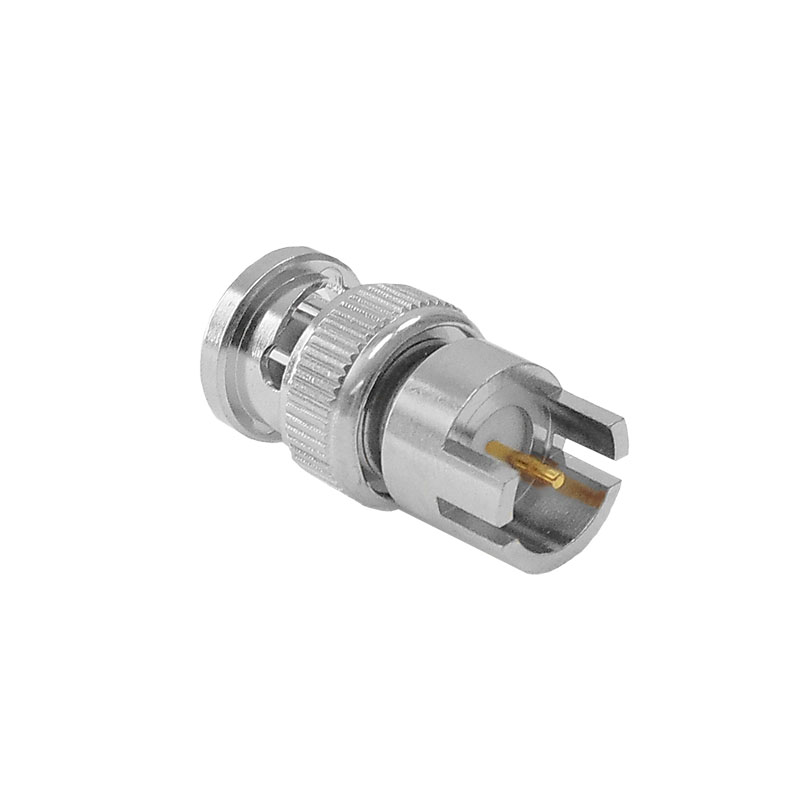

This PCB edge-mounted BNC plug features a brass and gold plated centre pin with an impedance of 75Ω.
This connector used to be sold as part number C-SX-102
| Impedance | 75Ω |
| Frequency Range | 0 – 1GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Au plated |
| Insulators | PTFE |
| Mounting Type | Edge Mounted |
| Board Thickness | 1.5mm |
| Hardware | None |
