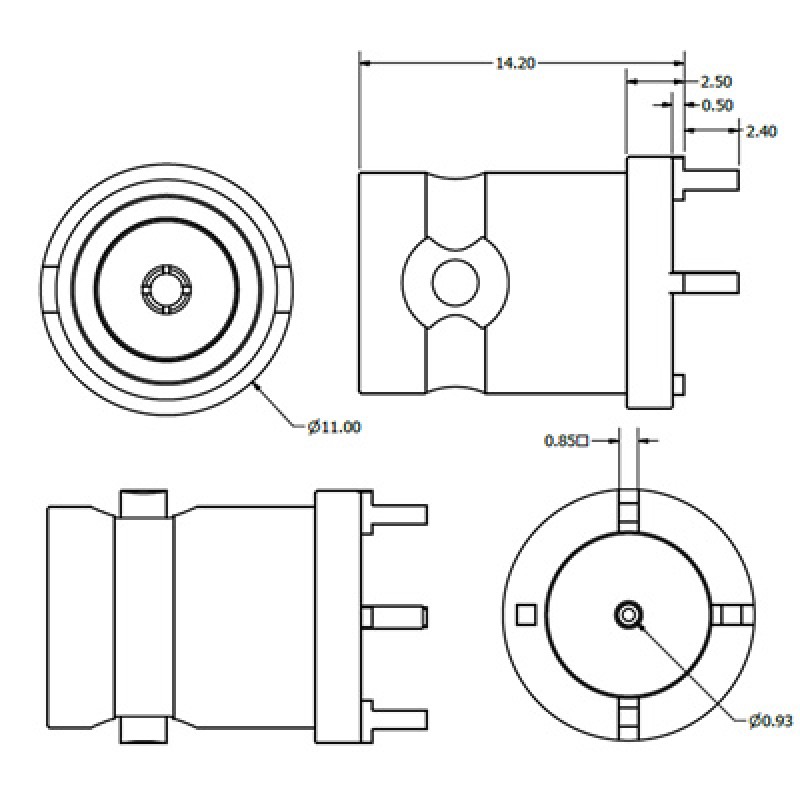

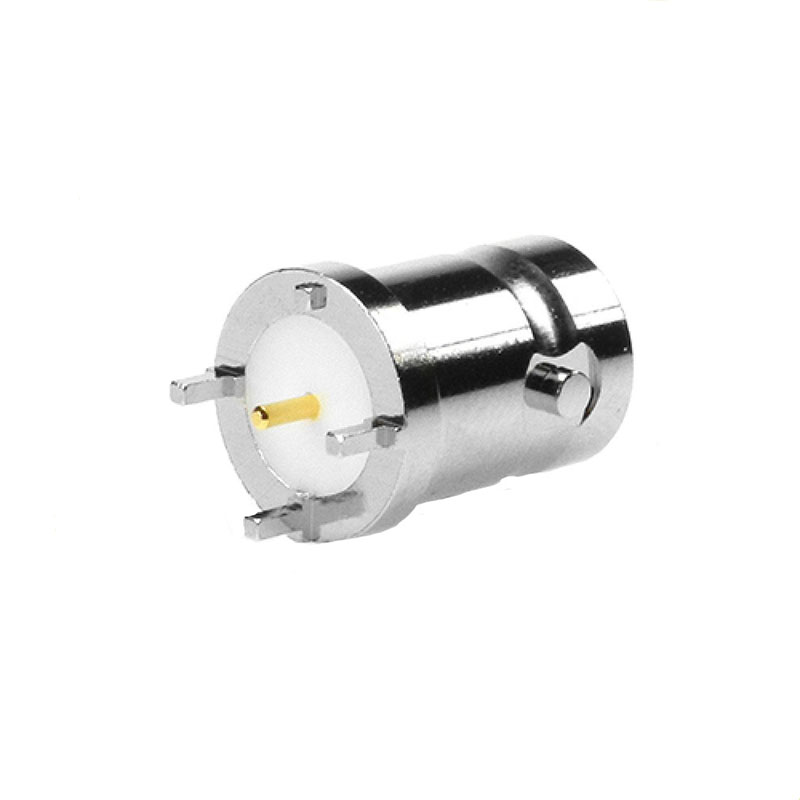

The XBS-03-TE24-NNI is a round based, top entry, mounting BNC connector, which meets the SMPTE 424M standard, allowing bit-rates of 2.970Gbit/s over a single coaxial connection. This connector is ideal for use in industrial process control and data acquisition and is compliant with Picture in Picture applications.
This connector was formerly sold as:
C-SX-118 as a connector only product
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.02 (max) DC – 1.5GHz 1.10 (max) 1.5 – 3.0GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | 5000mΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Processing | Maximum wave and hand soldering temperature 265°C |
| Mounting Type | Top Entry |
| Leg Length | 2.4mm |
| Hardware | None |
