XBS-03-TE39-NNI – 75Ω BNC Socket 3GHz Top Entry, 3 x 3.9mm Legs
XBS-03-TE39-NNI – 75Ω BNC Socket 3GHz Top Entry, 3 x 3.9mm Legs

XBS-03-TE39-NNI – 75Ω BNC Socket 3GHz Top Entry, 3 x 3.9mm Legs

Product Code: XBS-03-TE39-NNI

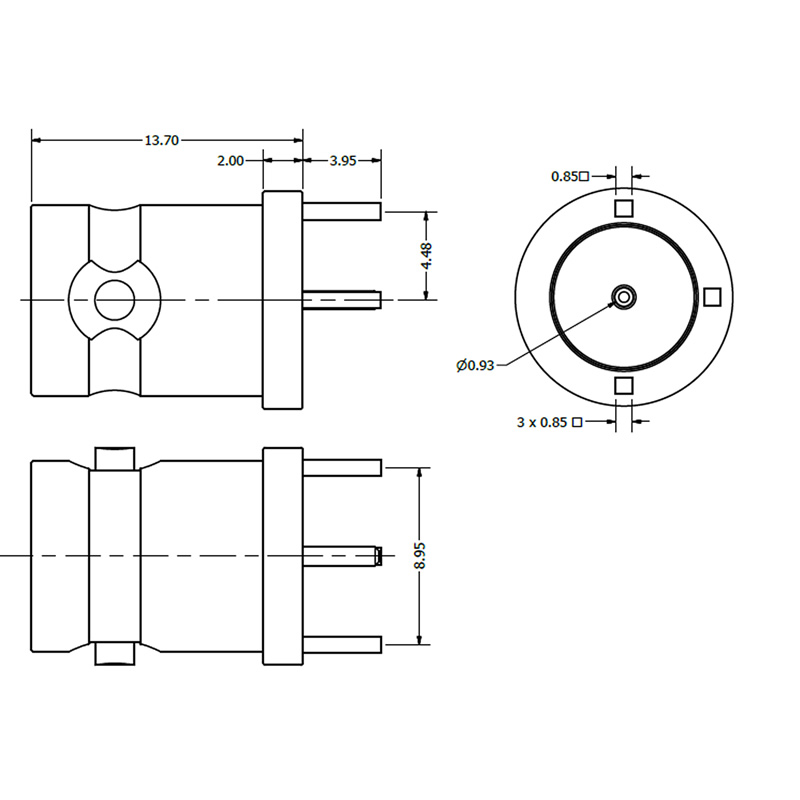

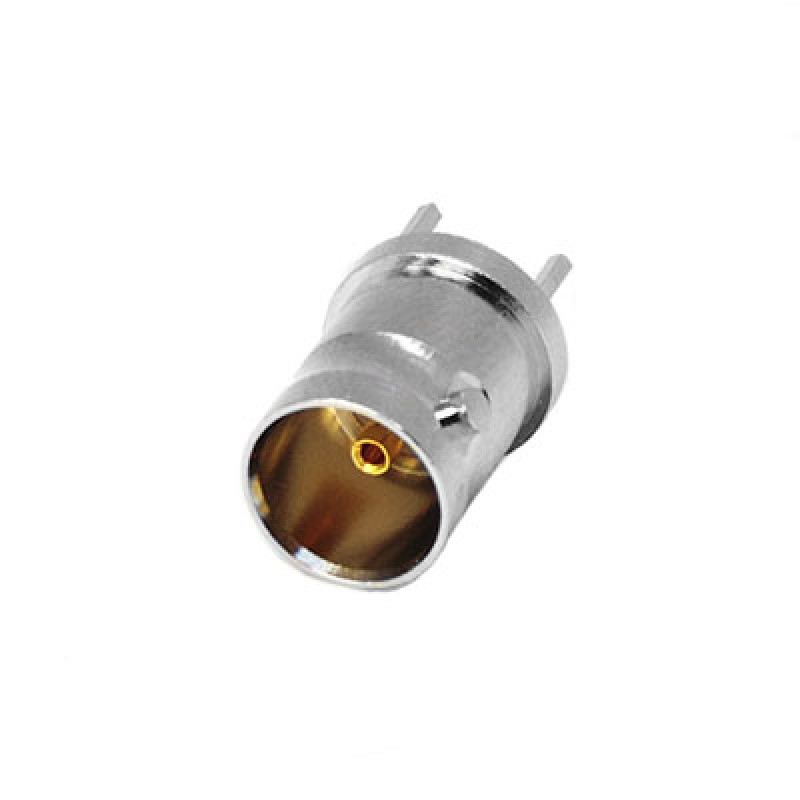

The XBS-03-TE39-NNI precision 75Ω BNC Connector is a top entry four pin PCB mounted connector. Cambridge Electronic Industries’ precision BNC range are compatible with all other standard BNC connectors, but peak performance is achieved when mated with other connectors in our range.



Impedance 75Ω
Frequency Range 0 – 3GHz
Working Voltage 500Vrms
Dielectric Withstanding Voltage 1500Vrms
Reflection Factor (VSWR) 1.02 (max) DC – 1.5GHz 1.10 (max) 1.5 – 3GHz
Contact Resistance Centre contact 1.5mΩ Outer contact 1.0mΩ
Insulation Resistance 5000mΩ
Connector Type Female
Metal Parts Brass / Ni
Centre Pin Phosphor Bronze / 10µ Au
Insulators PTFE
Temperature Range -65 to +85°C
Mating Cycles 250

XBS-03-TE39-NNI is a connector only part (formerly C-SX-100).

Processing Maximum wave and hand soldering temperature 265°C
Mounting Type Top Entry
Leg Length 3.95mm
