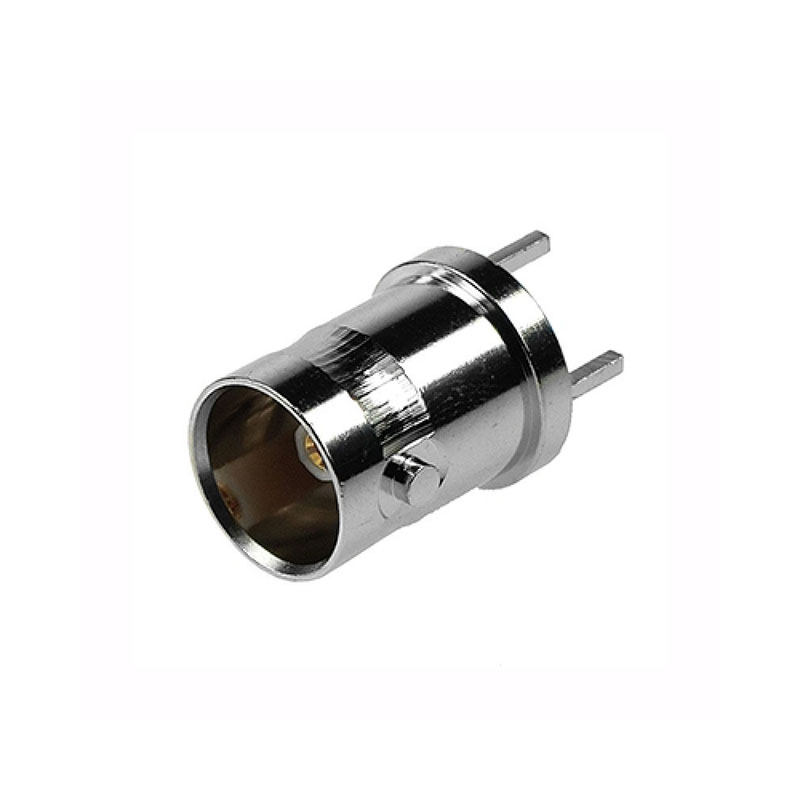

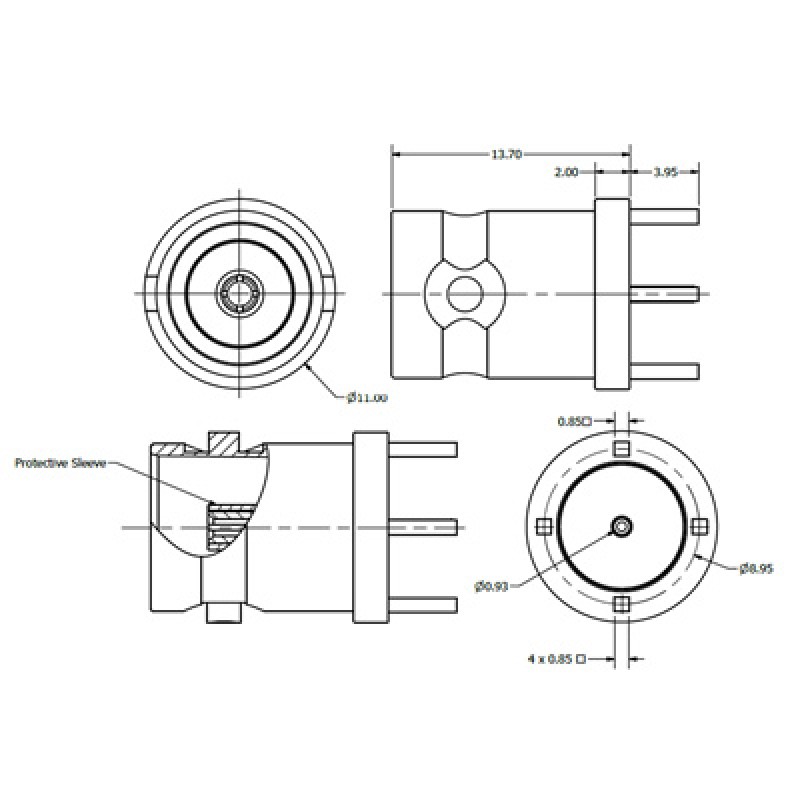

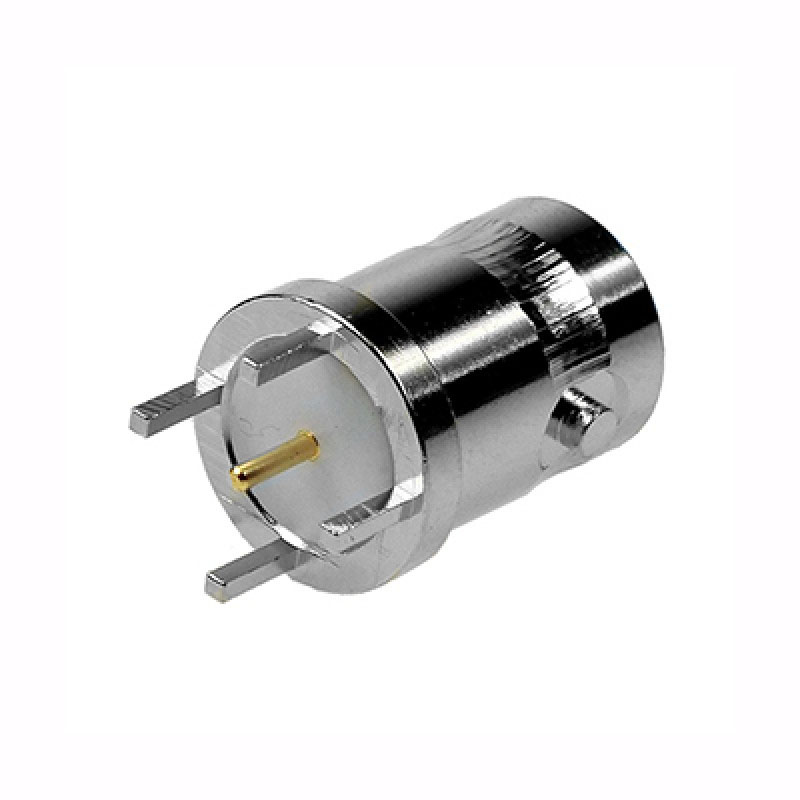

The XBS-03-TE39-NNU Precision 75Ω BNC top entry PCB mounted connector with a protective insulator sleeve around the centre contact. The centre contact is a thickness of 0.93mm.
This connector was formerly sold as:
C-SX-119 as a connector only product
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.04 (max) DC – 1.5GHz 1.11 (max) 1.5 – 3.0GHz |
| Insulation Resistance | 5000mΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Processing | Maximum wave and hand soldering temperature 265°C |
| Mounting Type | Top Entry |
| Leg Length | 3.95mm |
| Hardware | None |
