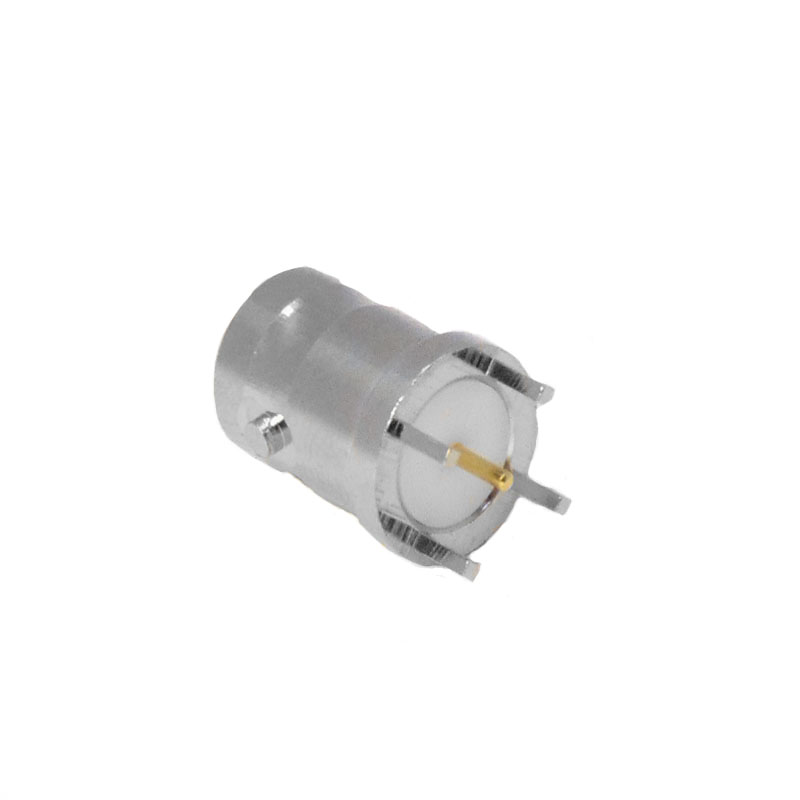

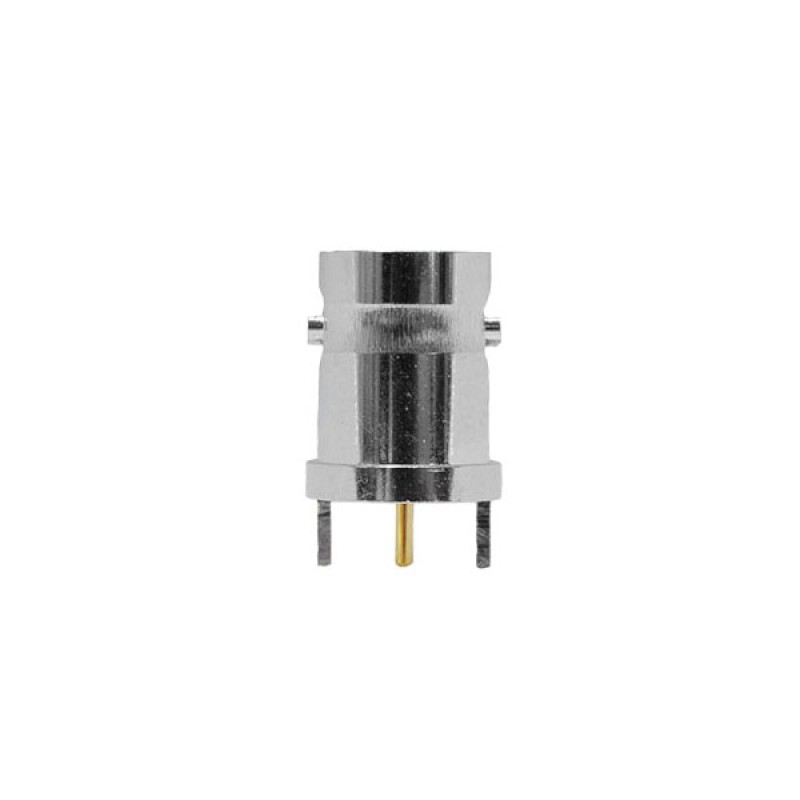

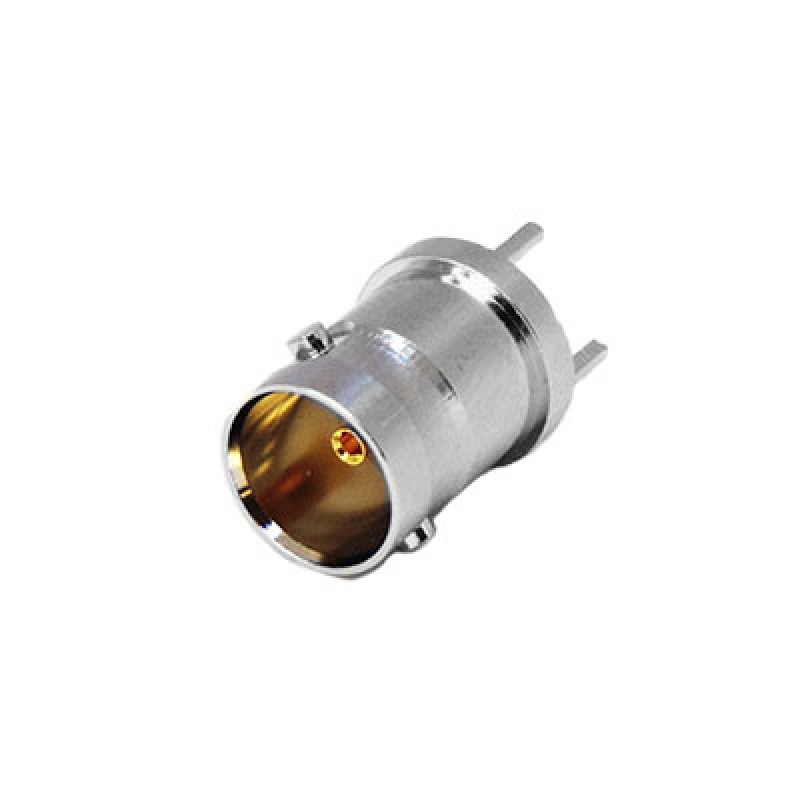

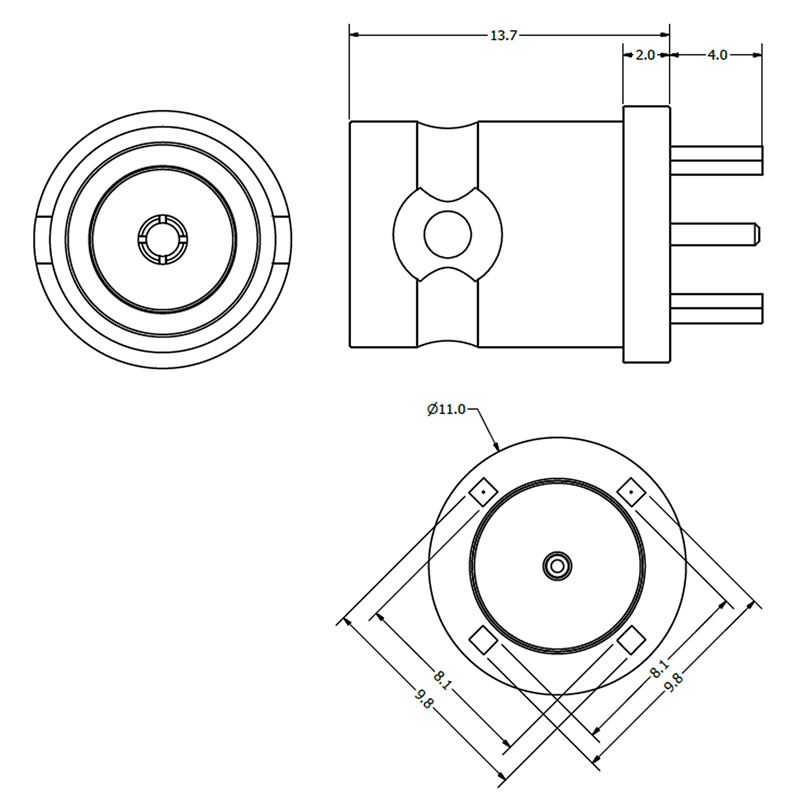

The XBS-03-TE40-NN precision 75Ω BNC Connector is a top entry PCB mounted connector. Cambridge Connectors precision BNC range are compatible with all other standard BNC connectors, but peak performance is achieved when mated with other connectors inour range.
This connector was formerly sold as:
C-SX-063 as a connector only product
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.08 (max) DC – 1.5GHz 1.16 (max) 1.5 – 3GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | 5000mΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | Teflon® |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Processing | Maximum wave and hand soldering temperature 265°C |
| Mounting Type | Top Entry |
| Leg Length | 4.0mm |
