Up to 12GHz

XBS-12-TE20-NNLQ – Square Based Top Entry BNC Connector (Long Body)

Product Code: XBS-12-TE20-NNLQ

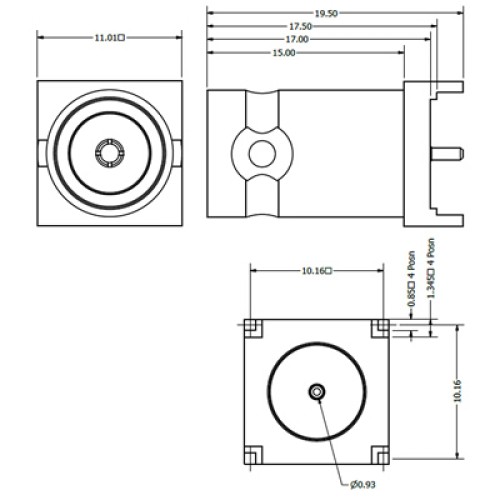

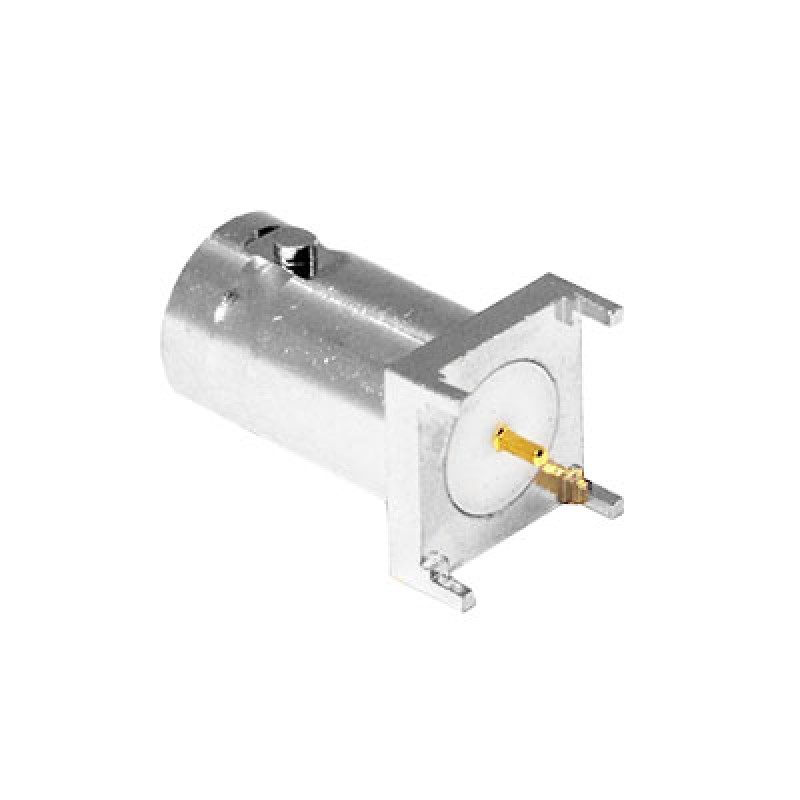

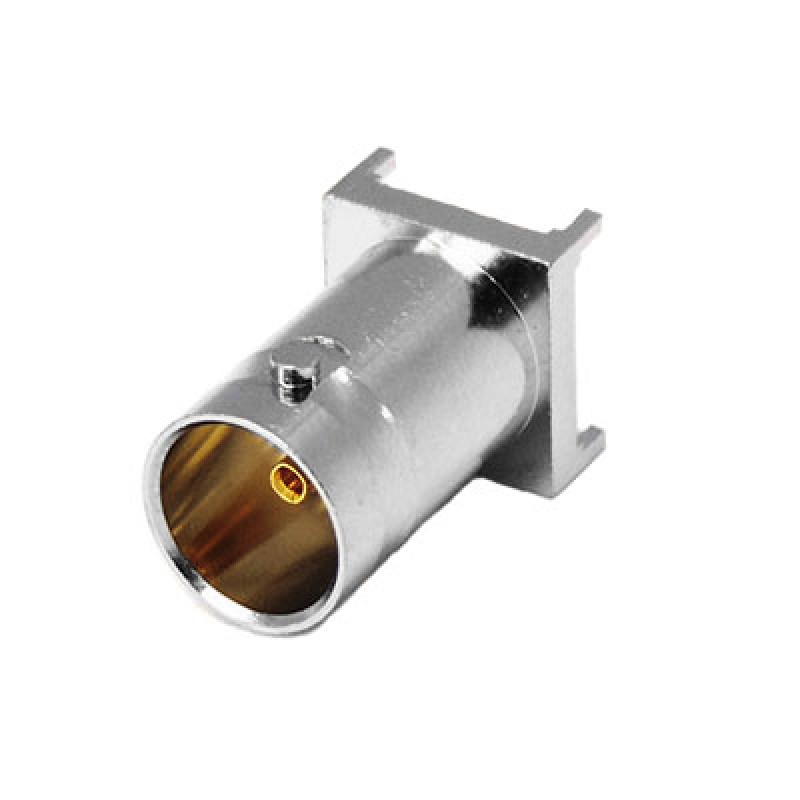

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XBS-12-TE20-NNLQ connector is a top entry BNC connector with a square base. The connector is made for PCB thicknesses up to 1.9mm.

This connector was formerly sold as:
C-SX-123 as a connector only part and only rated up to 3GHz

Electrical

Impedance	75Ω
Frequency Range	0 – 12GHz
Working Voltage	500Vrms
Dielectric Withstanding Voltage	1500Vrms
Contact Resistance	Centre contact 1.5mΩ Outer contact 1.0mΩ
Insulation Resistance	5000mΩ
Reflection Factor (VSWR)	1.24 (max) 0-6GHz 1.60 (max) 6-12GHz
Connector Type	Female
