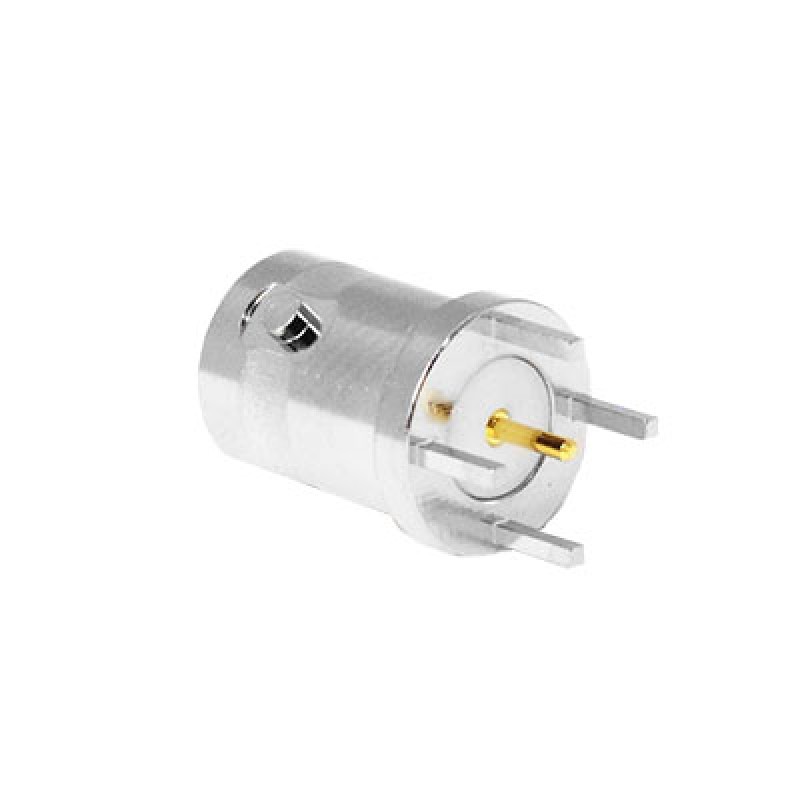

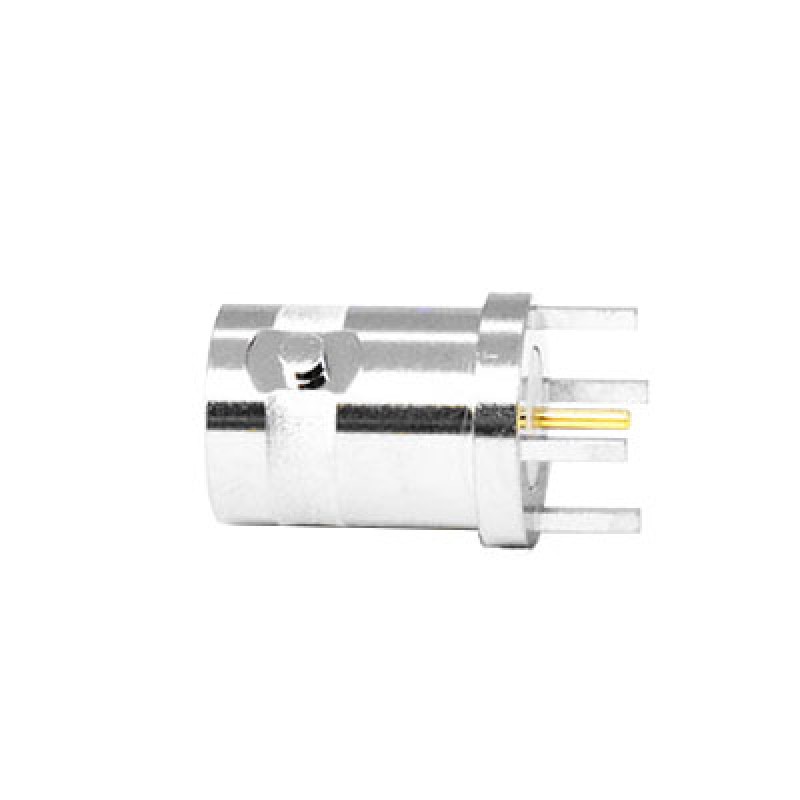

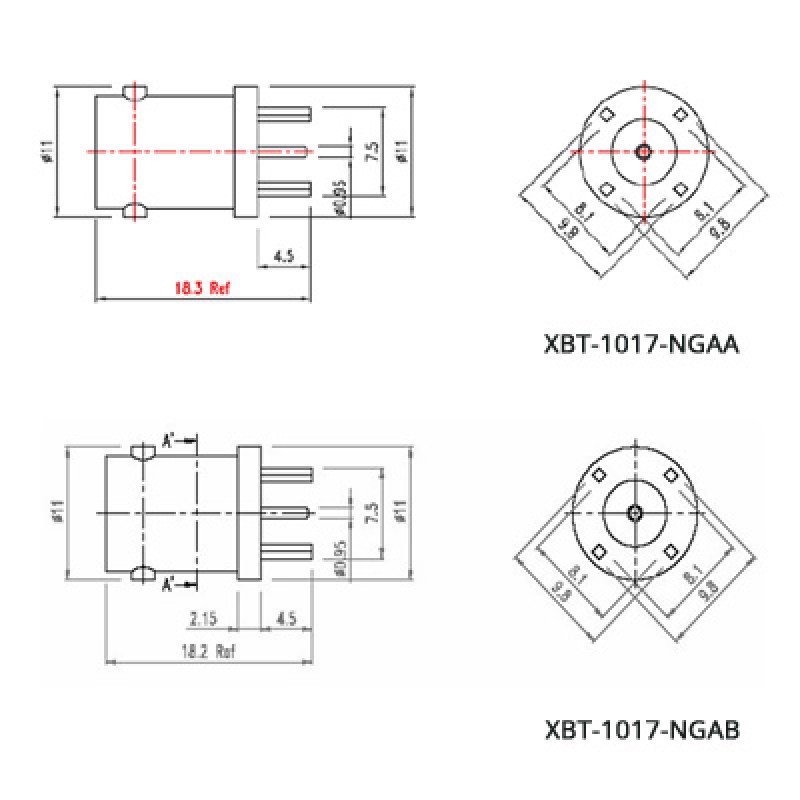

The XBT-1017-NGXX is a top entry BNC mounted socket.
The XBT-1017-NGAA is suitable for frequencies up to 4GHz and the XBT-1017-NGAB is suitable for frequencies up to 1GHz.
| Impedance | XBT-1017-NGAA =50Ω XBT-1017-NGAB =75Ω |
| Frequency Range | XBT-1017-NGAA =0 – 4GHz XBT-1017-NGAB =0 – 1GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 3µ”Au, Phosphor Bronze / 3µ"Au, Phosphor Bronze / 3µ"Au, Phosphor Bronze / 3µ”Au |
| Insulators | PTFE |
| Mounting Type | Top Entry |
| Leg Length | 4.5mm |
