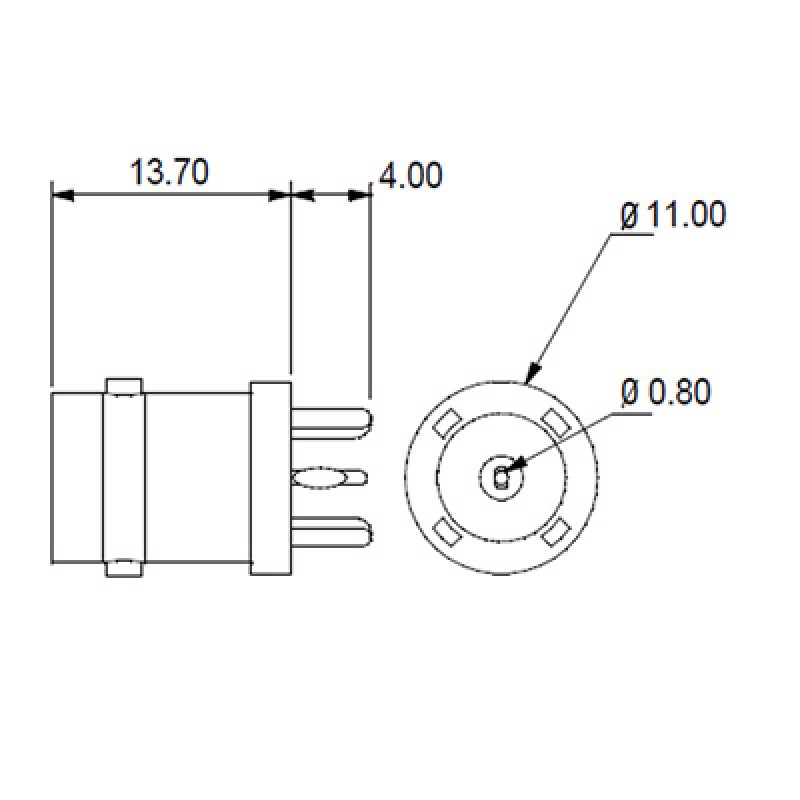

The XBT-1052-NGAY is a top entry PCB mounted BNC socket and is suitable for frequencies up to 1GHz. The connector has an extended insulator which protects the contact and is recommended for PCB’s with a thickness of 3.6mm.
| Impedance | 75Ω |
| Frequency Range | 0 – 1GHz |
| Leg Length | 4.0mm |
