The XBT-1060-NGAY is a PCB edge mounting connector inner for the 2 part BNC 3GHz connector system, which is available for use in a number of board thicknesses.

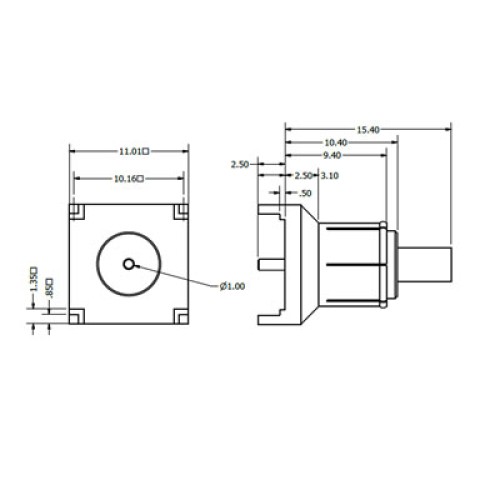

The XBT-1065-NGAY is a square based PCB top entry mounting connector inner for the 2 part BNC 3GHz connector system.
| Impedance | 75Ω |
| Frequency Range | 0 – 3.2GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ”Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Mounting Type | Top Entry |
| Leg Length | 2.0mm |
| Processing | Maximum hand and wave soldering temperature 265°C |
The XBT-1060-NGAY is a PCB edge mounting connector inner for the 2 part BNC 3GHz connector system, which is available for use in a number of board thicknesses.
The 71X-0037-33 is a BNC outer circlip bulkhead mount connector body for use with one of the inners of the 2 part system. It is made from brass with a nickel plating. It is supplied without circlip, which can be ordered as a separate item (part number 71X-0036-33).
The 71X-0038-33 is a BNC outer rear mounted bulkhead connector body for use with one of the inners of the 2 part system. It is made from brass with a nickel plating. It is supplied with nut and crinkle washer.
The 71X-0039-33 is a BNC outer front mounted bulkhead connector body for use with one of the inners of the 2 part system. It is made from brass with a nickel plating. It is supplied with nut and crinkle washer.
The 71X-0040-33 is a BNC outer connector body for PCB mounting and use with one of the inners of the 2 part system. It is made from brass with a nickel plating.
The 71X-0042-33 is a BNC outer rear mounted bulkhead connector body with flats for use with one of the inners of the 2 part system. It is made from brass with a nickel plating. It is supplied with nut and crinkle washer.
The 71X-0044-33 is a BNC outer rear mounted bulkhead connector body with screws for use with one of the inners of the 2 part system. It is made from brass with a nickel plating.
The 71X-0036-33 is an external 12mm circlip for use with the two part connector system.
