XBT-1069-NGXX – BNC Plug for 12G Applications (Standard Version)

Product Code: XBT-1069-NGXX

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while
meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve peak design performance we recommend using Cambridge Connectors 12GHz CoaxVision™ BNC plug and socket.

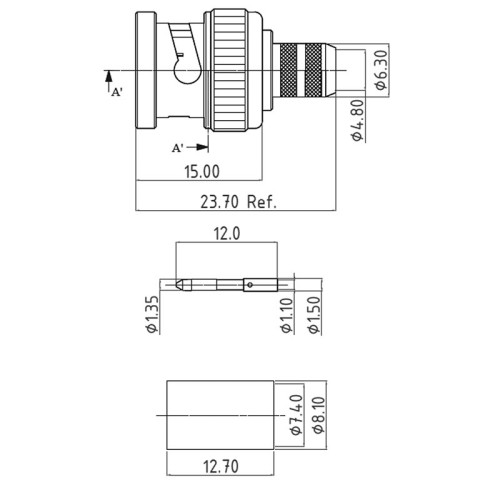

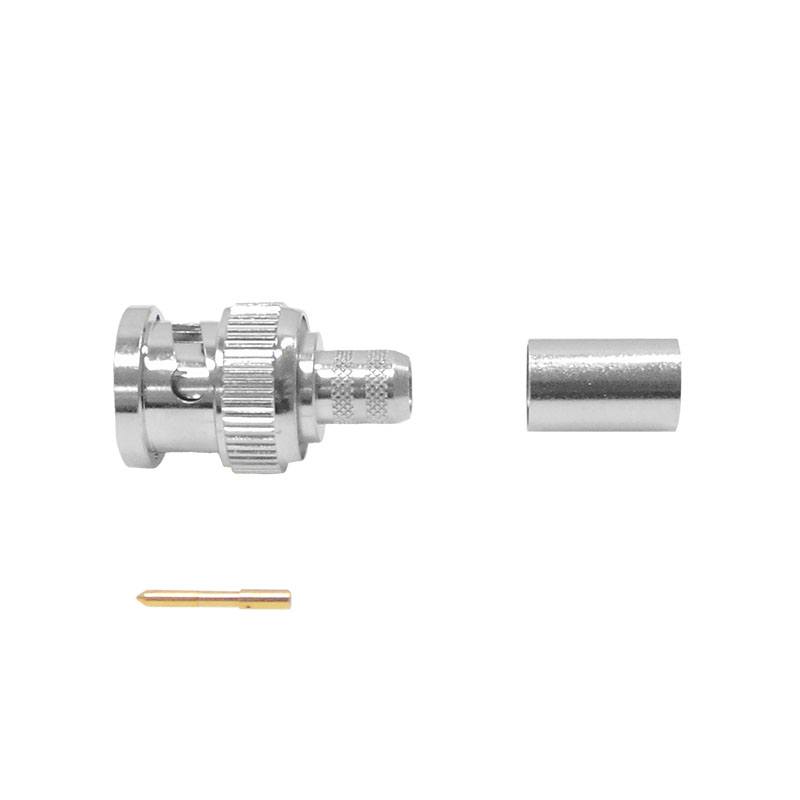

The XBT-1069-NGXX connector is a cable mounted plug which can be used with Belden cable  types 1694A, 4694R, 4855R, 4505R and 4794R.

The following tools are recommended for use with this connector:
XBT-1069-NGAB = TLG 109

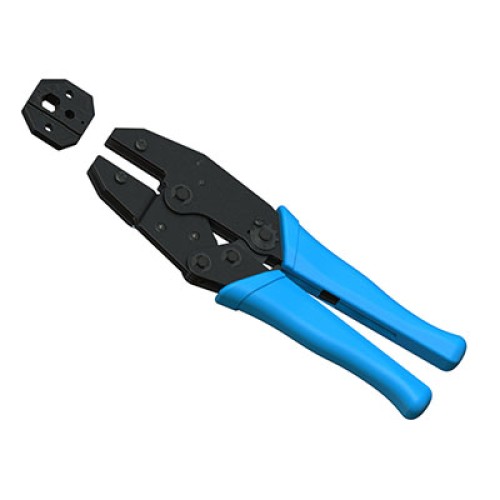

XBT-1069-NGAS = TLG 124
XBT-1069-NGBA = TLG 109 or TLG 110
XBT-1069-NGDE = TLG 109 or TLG 110

Impedance 75Ω
Frequency Range 0 – 12 GHz
Working Voltage ≥500Vrms
Dielectric Withstanding Voltage ≥1500Vrms
Contact Resistance Centre Contact 1.5 m Ω
Outer contact 1.0 m Ω
Body Finish Standard – Brass / Ni
Centre Pin Brass / 2µ Au
Insulators PTFE
Temperature Range -65 to +165°C
Mating Cycles 500
Mounting Type Cable Mounted
Cable Types Cable Group AB (RG59 – 1505A – RG140/U- 4505R)
Cable Group AS (RG6 – 1694A – 4694R)
Cable Group BA (1855A – mini RG59 – 4855R – RG180BU)
Cable Group DE (CFKOAX1 HF75-0.3/1.6 – RG179)

Related Products

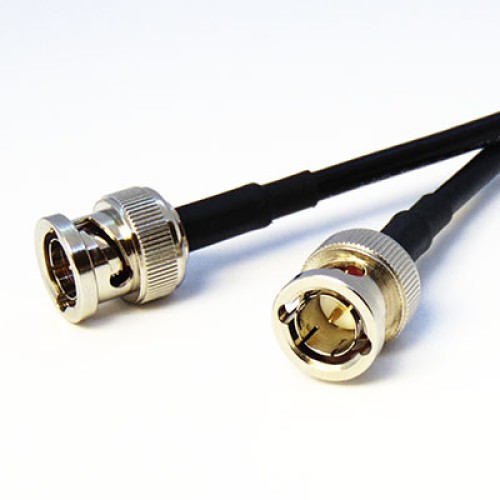

12GHz BNC (m) to BNC (m) Coaxial Cable Assembly- Belden 4855R Cable

To ensure signal integrity over the 12G-SDI transmission path it is essential for interconnection systems to be constructed with 12G-SDI compliant components. At Cambridge Electronic Industries, we use our precision 12GHz connectors coupled with high-quality cables from world-leading branded manufacturers. All our 12GHz cable assemblies meet the needs of the Broadcast, HDTV and other high speed, high definition vision applications, as well as meeting the CXP-12 CoaXPress standards.

The CA-BZPBZP-WO-XXXXX is a BNC plug to BNC plug patch cable made with Belden 4855R cable, which can be made to any length required. We have no minimum order quantities for special length cables and they can be further customised with colour coding, bespoke labelling and special marking to suit custom applications.

If you are looking for a long distance cable, but are being prohibited due to maximum transmission distances, take a look at our Xtensa CXP repeater range which when used in conjunction with our cables can vastly extend the range of your signal over coaxial cable.

View product
12GHz BNC (m) to BNC (m) Coaxial Cable Assembly – Belden 4694R Cable

To ensure signal integrity over the 12G-SDI transmission path it is essential for interconnection systems to be constructed with 12G-SDI compliant components. At Cambridge Electronic Industries, we use our precision 12GHz connectors coupled with high quality cables from world leading branded manufacturers. All our 12GHz cable assemblies meet the needs of the Broadcast, HDTV and other high speed, high definition vision applications.

The CA-BZPBZP-XO-XXXXX is a BNC plug to BNC plug patch cable made with Belden 4694R cable, which can be made to any length required. We have no minimum order quantities for special length cables and they can be further customised with colour coding, bespoke labelling and special marking to suit custom applications.

If you are looking for a long distance cable, but are being prohibited due to maximum transmission distances, take a look at our Xtensa CXP repeater range which when used in conjunction with our cables can vastly extend the range of your signal over coaxial cable.

View product

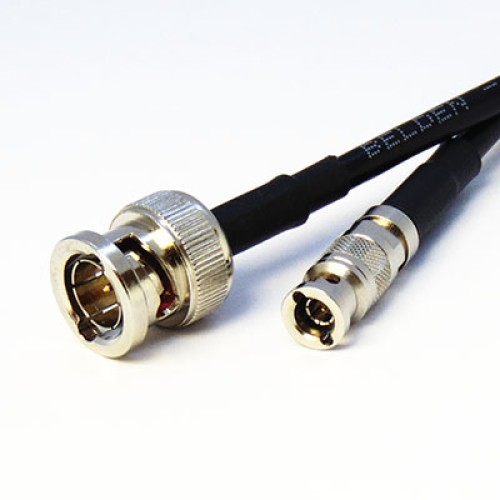

12GHz BNC (m) to Micro BNC (m) Coaxial Cable Assembly – Belden 4855R Cable

To ensure signal integrity over the 12G-SDI transmission path it is essential for interconnection systems to be constructed with 12G-SDI compliant components. At Cambridge Electronic Industries, we use our precision 12GHz connectors coupled with high-quality cables from world-leading branded manufacturers. All our 12GHz cable assemblies meet the needs of the Broadcast, HDTV and other high speed, high definition vision applications, whilst also meeting the CXP-12 CoaXPress standards.

The CA-BZPHBP-WO-XXXXX is a BNC plug to Micro BNC plug patch cable made with Belden 4855R cable, which can be made to any length required. We have no minimum order quantities for special length cables and they can be further customised with colour coding, bespoke labelling and special marking to suit custom applications.

If you are looking for a long distance cable, but are being prohibited due to maximum transmission distances, take a look at our Xtensa CXP repeater range which when used in conjunction with our cables can vastly extend the range of your signal over coaxial cable.

View product

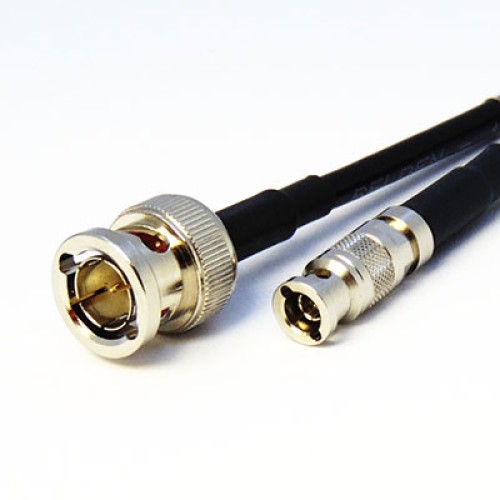

12GHz BNC (m) to Micro BNC (m) Coaxial Cable Assembly- Belden 4694R Cable

To ensure signal integrity over the 12G-SDI transmission path it is essential for interconnection systems to be constructed with 12G-SDI compliant components. At Cambridge Electronic Industries, we use our precision 12GHz connectors coupled with high-quality cables from world-leading branded manufacturers. All our 12GHz cable assemblies meet the needs of the Broadcast, HDTV and other high speed, high definition vision applications, as well as meeting the CXP-12 CoaXPress standards.

The CA-BZPHBP-XO-XXXXX is a BNC plug to Micro BNC plug patch cable made with Belden 4694R cable, which can be made to any length required. We have no minimum order quantities for special length cables and they can be further customised with colour coding, bespoke labelling and special marking to suit custom applications.

If you are looking for a long distance cable, but are being prohibited due to maximum transmission distances, take a look at our Xtensa CXP repeater range which when used in conjunction with our cables can vastly extend the range of your signal over coaxial cable.

View product

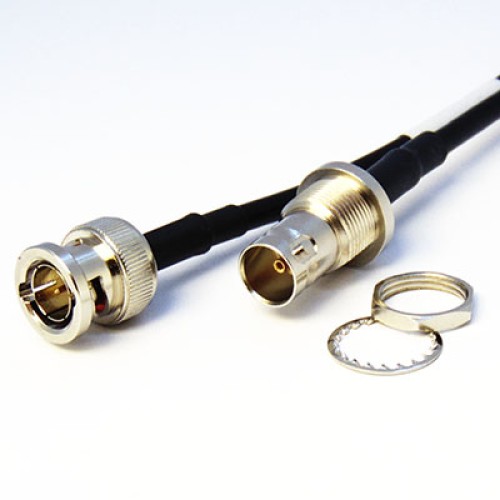

12GHz BNC (m) to BNC Bulkhead (f) Coaxial Cable Assembly – Belden 4855R Cable

To ensure signal integrity over the 12G-SDI transmission path it is essential for interconnection systems to be constructed with 12G-SDI compliant components. At Cambridge Electronic Industries, we use our precision 12GHz connectors coupled with high-quality cables from world-leading branded manufacturers. All our 12GHz cable assemblies meet the needs of the Broadcast, HDTV and other high speed, high definition vision applications, as well as meeting the CXP-12 CoaXPress standard.

The CA-BZPBCP-WO-XXXXX is a BNC plug to BNC Bulkhead socket patch cable made with Belden 4855R cable, which can be made to any length required. We have no minimum order quantities for special length cables and they can be further customised with colour coding, bespoke labelling and special marking to suit custom applications.

If you are looking for a long distance cable, but are being prohibited due to maximum transmission distances, take a look at our Xtensa CXP repeater range which when used in conjunction with our cables can vastly extend the range of your signal over coaxial cable.

View product

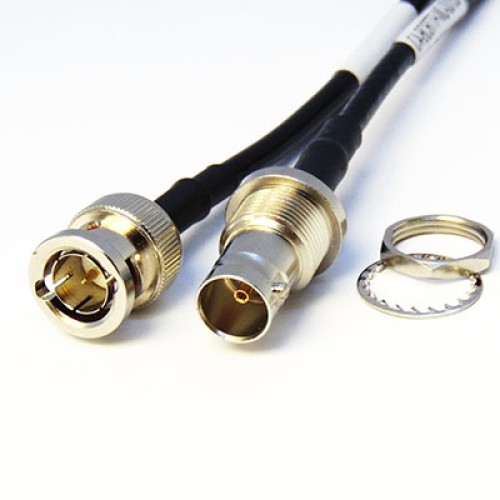

12GHz BNC (m) to BNC Bulkhead (f) Coaxial Cable Assembly – Belden 4694R Cable
