Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and meeting the JIIA CoaXPress specification. These high
performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz BNC plugs, designed for use with in the AS cable group such as Belden 1694A and 4694R.

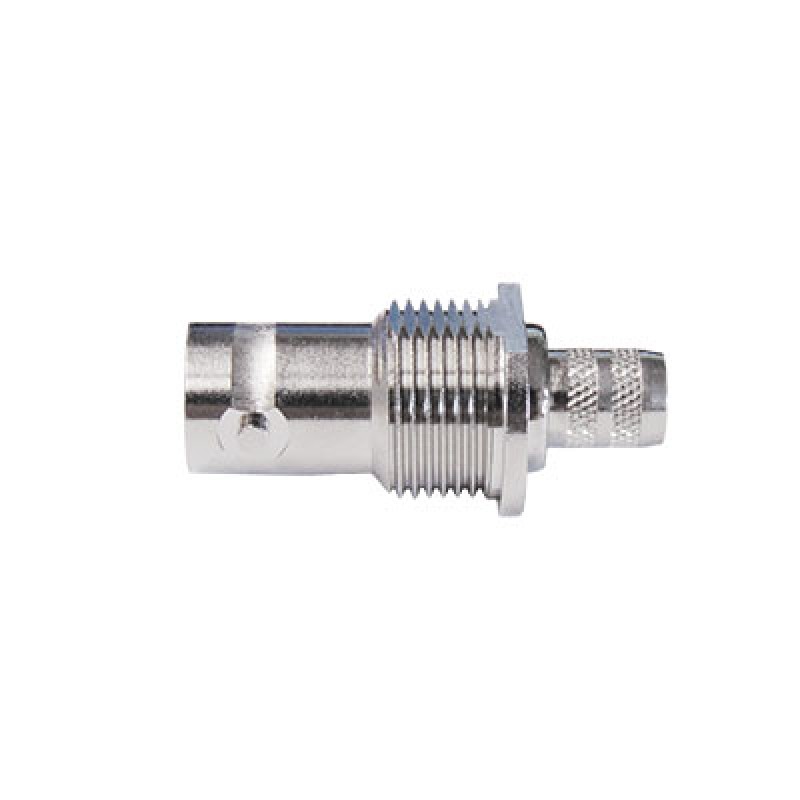

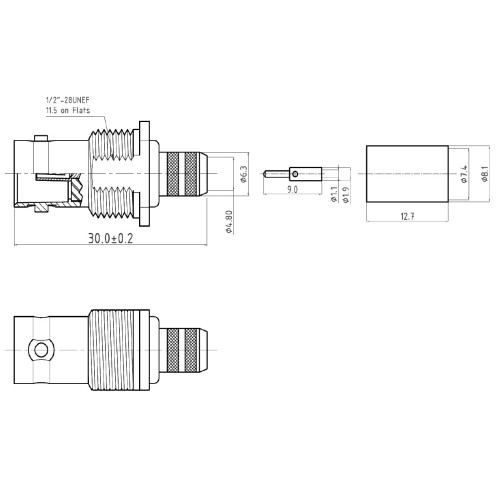

The XBT-1071-NGAS connector is a cable mounted BNC plug, which can be used with Belden cables for 12G applications.
The following tool is recommended for this connector:
XBT-1071-NGAS = TLG124
| Impedance | 75Ω |
| Frequency Range | 0 – 12 GHz |
| Working Voltage | ≥500Vrms |
| Dielectric Withstanding Voltage | ≥1500Vrms |
| Contact Resistance | Centre Contact 1.5 m Ω Outer contact 1.0 m Ω |
| Reflection Factor (VSWR) | ≤1.2 (0-6GHz) ≤1.3 (6-12GHz) |
| Body Finish | Brass / Ni or Au Plating |
| Centre Pin | Brass / 2µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +165°C |
| Mating Cycles | 500 |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group BA (1855A – mini RG59 – 4855R – RG180BU) |
