The TLG111 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1066-NGBA
XBT-1064-NGBA
XGT-8000-NGAS
Our range of 12GHz Precision BNC coaxial connectors conform to the SMPTE ST 2028-1 broadcast standard and are optimised for use in 6G SDI applications, whilst also meeting the JIIA CoaXPress specification. These high-performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 6GHz BNC plugs, designed for use with in the BA cable group such as Belden 1855A and 4855R.

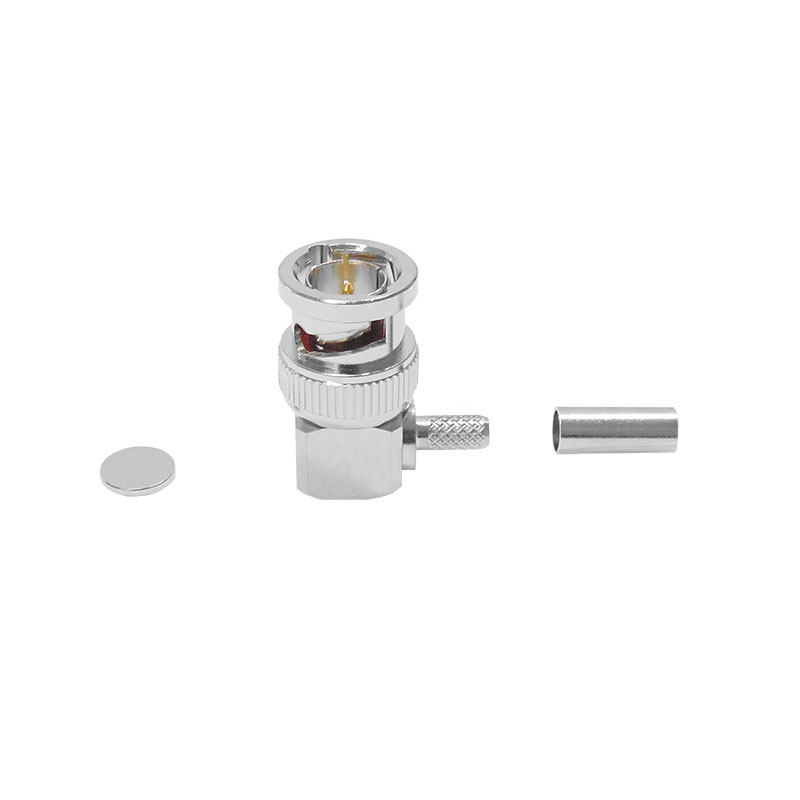

The XBT-1072-NGBA connector is a right angle cable mounted BNC plug, which can be used with Belden cables for 6G applications.
The following tool is recommended for this connector:
XBT-1072-NGBA = TLG 111
| Impedance | 75Ω |
| Frequency Range | 0 – 12 GHz |
| Dielectric Withstanding Voltage | ≥1500Vrms |
| Contact Resistance | Centre Contact 1.5 m Ω Outer contact 1.0 m Ω |
| Body Finish | Brass / Ni Plating |
| Centre Pin | Brass / 2µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +165°C |
| Mating Cycles | 500 |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group BA (1855A – mini RG59 – 4855R – RG180BU) |
The TLG111 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
