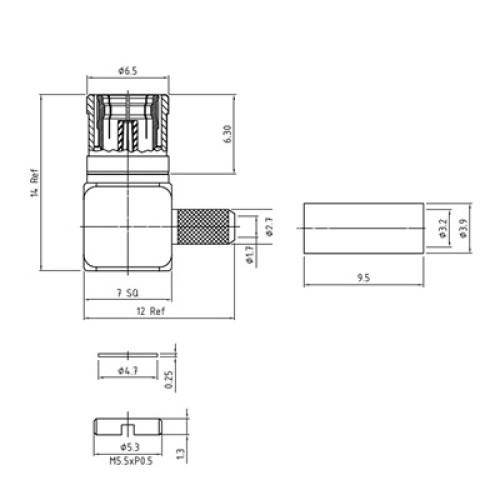

The XDT-6304-GGAF is a right angle cable mounted SMB plug that supports frequencies up to 2GHz. The connector is suitable for cables in the AF cable group which includes RG179.
The following tools are recommended for use with the connector:
XDT-6304-GGAF = TLG 116
| Impedance | 75Ω |
| Frequency Range | 0 – 2GHz |
| Metal Parts | Brass / Au plated |
| Centre Pin | BeCu / 2µ Au |
| Insulators | PTFE |
| Cable Types | Cable Group AF (RG179 – RG187 AU) |
| Mounting Type | Right Angled Cable Mounted |
