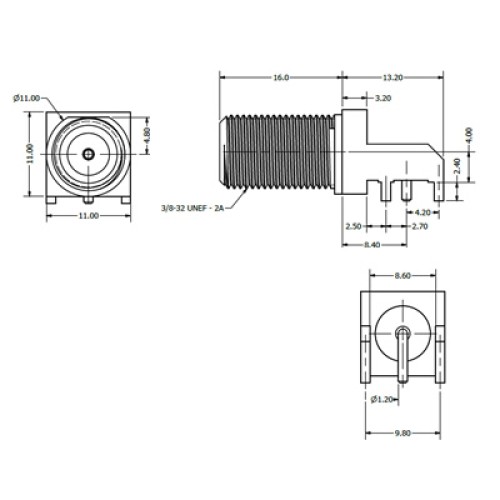

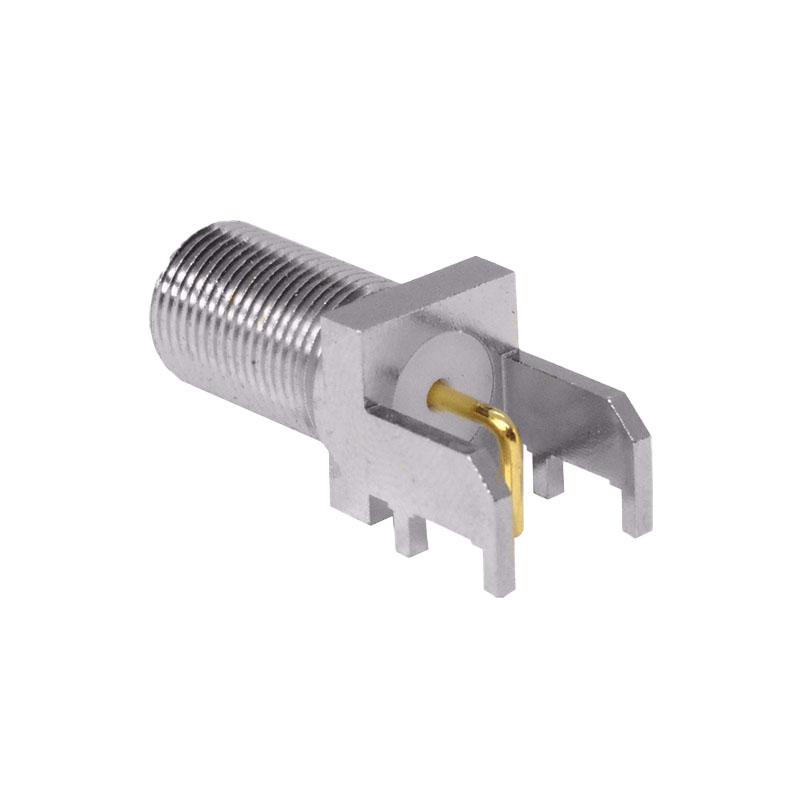

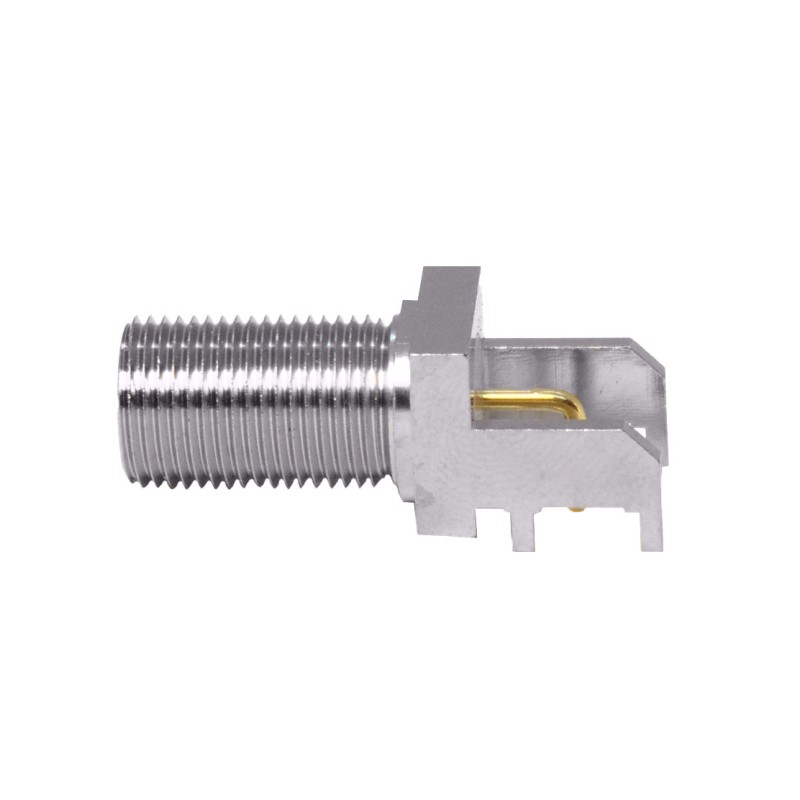

This precision 75Ω F Connector is a right angle mounted PCB connector which is suitable for frequencies up to 3GHz. The connector is part of the 3G Coaxvision range and meets the SMPTE 424M standard for 2.970Gbits/s over a single channel.
This connector was previously sold as C-SX-163
| Impedance | 75Ω |
| Frequency Range | 0 – 3.2GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Reflection Factor (VSWR) | 1.30 (max) DC – 3.2GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ"Au, Phosphor Bronze / 10µ”Au |
| Insulators | PTFE |
| Temperature Range | -20 to +85°C |
| Mating Cycles | 200 |
| Mounting Type | Right Angled |
| Leg Length | 2.4mm |
| Hardware | None |
| Processing | Maximum wave and hand soldering temperature 265°C |
