The ANG-C2-BBN-2.30 is a standard 1.0 / 2.3 nut which is 2.30mm thick and made from Brass with nickel plating.
This nut was previously sold as part number 71X-0048-33.

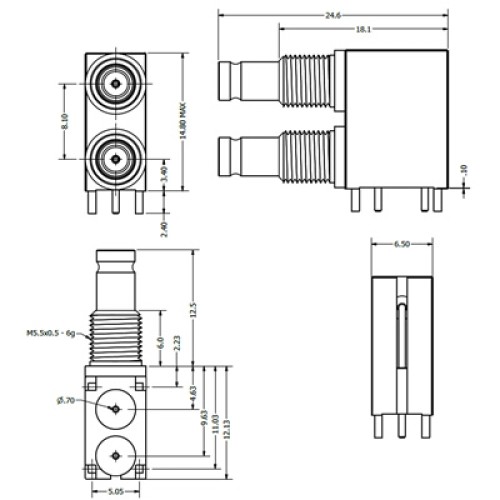

The XGS-06-RB24-GGD precision 75Ω 1.0/2.3 dual port right angle PCB mounted connector is designed for Multi Layer PCB applications which require a shorter leg length of 2.4mm. The connectors offers the full DIN 1.0/2.3 frequency of 6GHz.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.07 (max) DC – 1.5GHz 1.14 (max) 1.5 – 3.0GHz 1.16 (max) 3.0 – 3.2GHz 1.31 (max) 3.2 – 6.0GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:
XGS-06-RB24-GGD as a connector only part (formerly C-SX-171G)
XGS-06-RB24-GGD-AZ when supplied with 2 x 2 slot circular nuts (formerly C-SX-137G)
| Mounting Type | Right Angled |
| Leg Length | 2.4mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 265°C |
The ANG-C2-BBN-2.30 is a standard 1.0 / 2.3 nut which is 2.30mm thick and made from Brass with nickel plating.
This nut was previously sold as part number 71X-0048-33.
The ANG-C2-BBN-1.80 is a circular DIN 1.0 / 2.3 nut which is 1.8mm thick and made from Brass with nickel plating.
This part was previously sold as part number 71X-0053-33.
