XGS-06-TE27-GG – PCB Top Entry 1.0 / 2.3 Connector

XGS-06-TE27-GG – PCB Top Entry 1.0 / 2.3 Connector

Product Code: XGS-06-TE27-GG

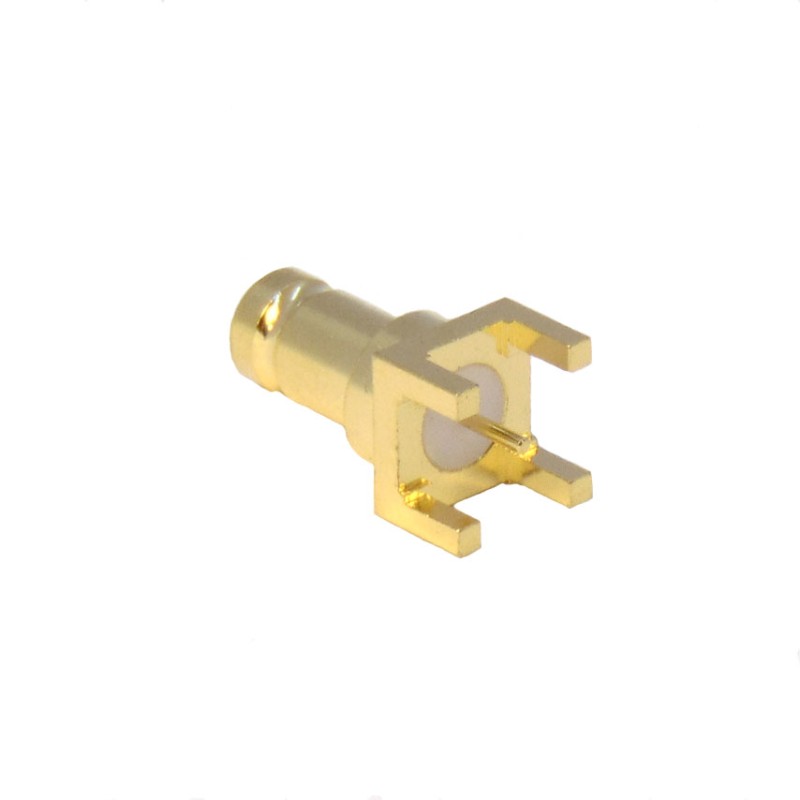

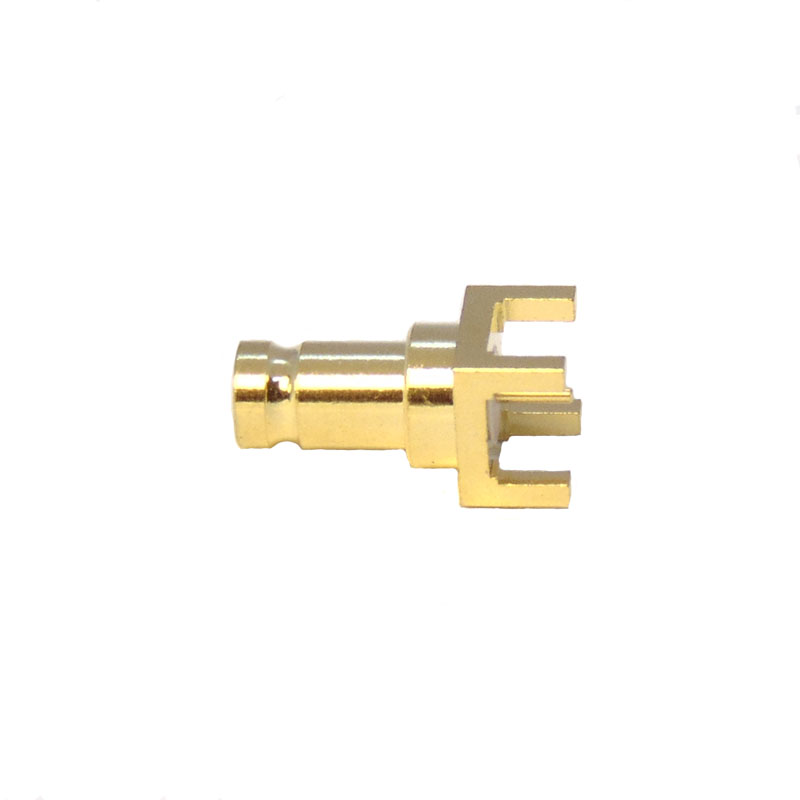

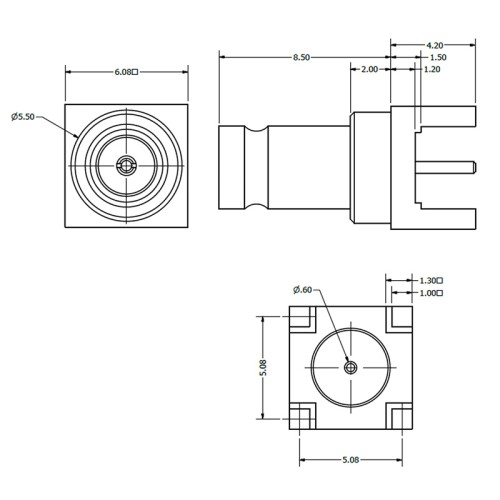

The XGS-06-TE27-GG is a top entry PCB bulkhead mounted connector with a short body which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has 4 legs which are 2.7mm.

This connector has the same profile as the C-SX-097G but has improved performance at 3GHz and extends its potential working to the full 6GHz range for DIN 1.0/2.3 connectors.

Electrical

Impedance	75Ω
Frequency Range	0 – 6 GHz
Working Voltage	250Vrms
Dielectric Withstanding Voltage	750Vrms
Contact Resistance	Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance	1000MΩ
Reflection Factor (VSWR)	1.01 (max) 0-3GHz 1.02 (max) 3-6GHz
Connector Type	Female
