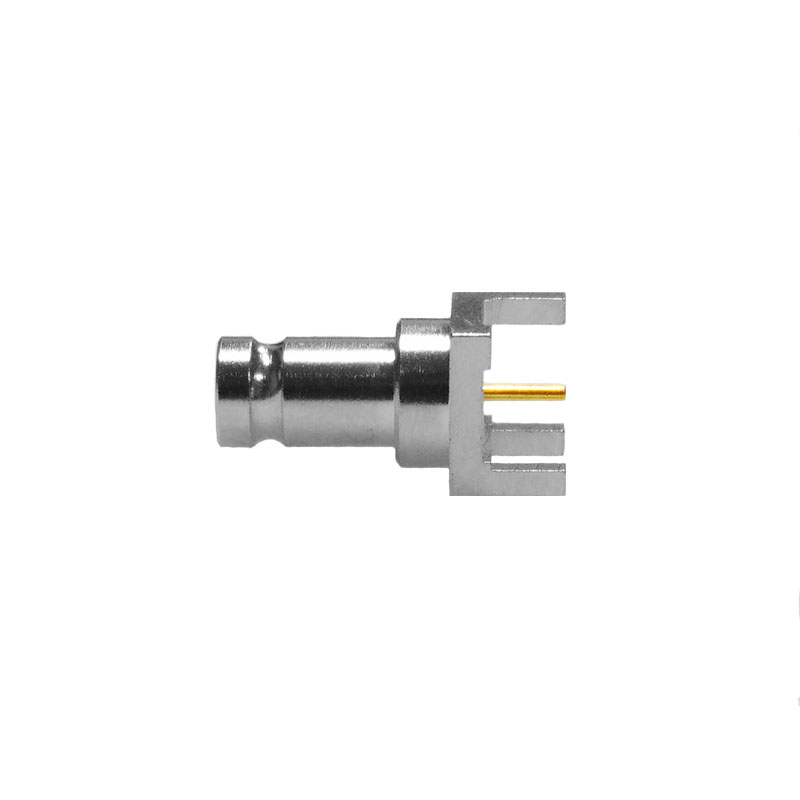

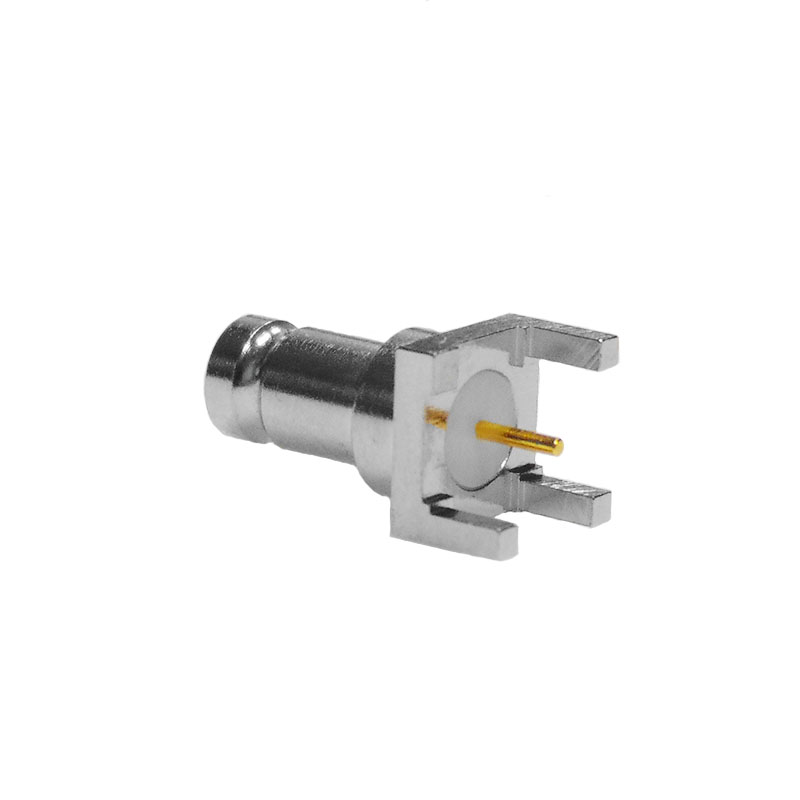

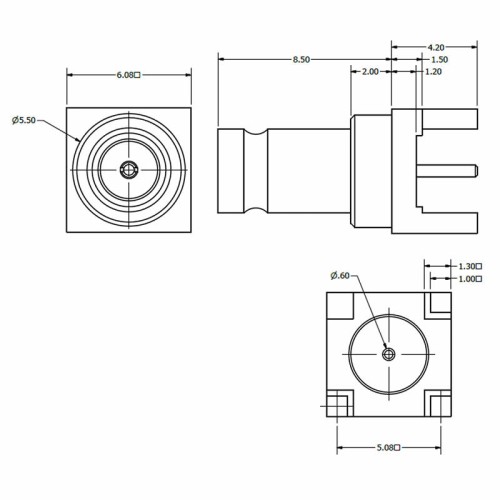

The XGS-06-TE27-NNI is a top entry PCB mounted, short body connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector features 3 legs with a leg length of 2.7mm.
This connector was previously sold as C-SX-134N
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.18 (max) DC – 3GHz 1.32 (max) 3 – 6GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Mounting Type | Top Entry |
| Leg Length | 2.7mm |
| Processing | Maximum wave and hand soldering temperature 265°C |
