The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF

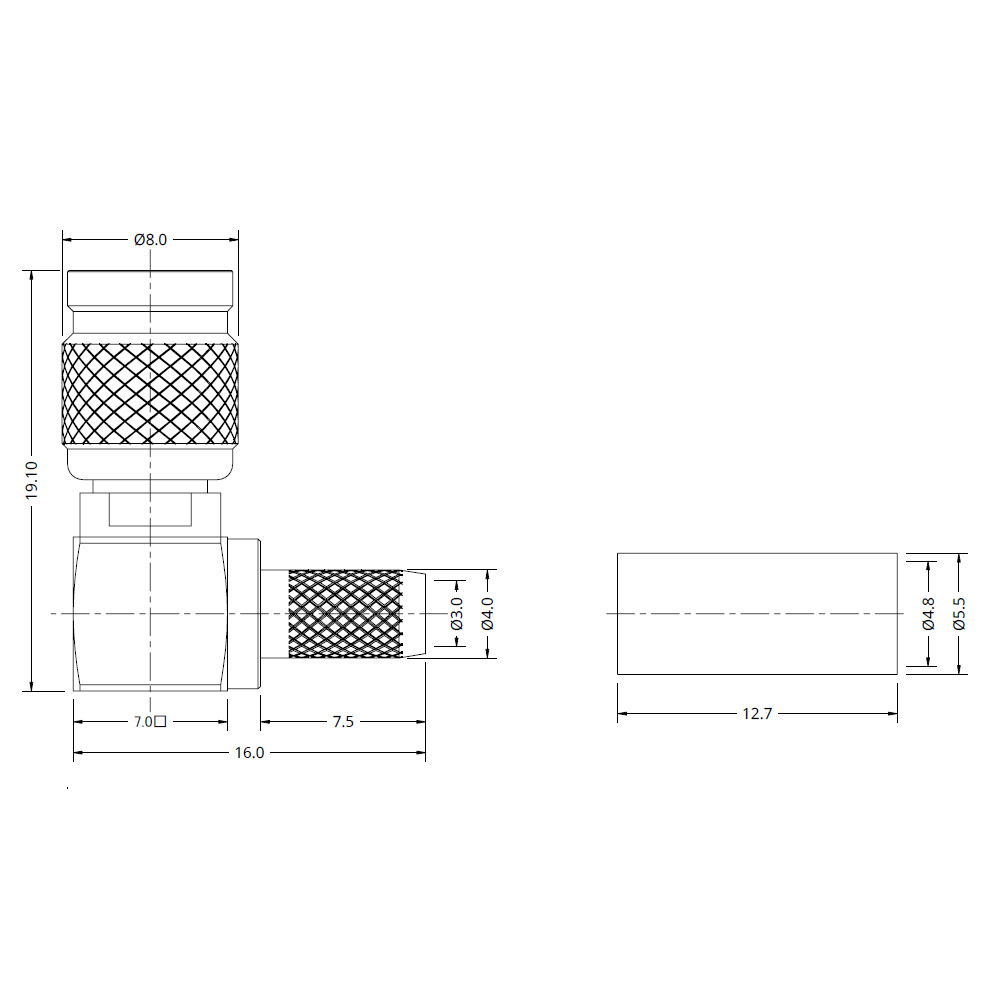

The XGT-8004-NGBA is a right angle cable mounted plug, which is suitable for frequencies up to 6GHz and is designed for cables in the BA group which includes Mini RG59 and Belden 1855A.
The following tools are recommended to use with this connector:
XGT-8004-NGBA = TLG 109 or TLG 110
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Metal Parts | Brass / Ni |
| Insulators | PTFE |
| Mounting Type | Right Angled Cable Mounted |
| Cable Types | Cable Group BA (1855A – mini RG59 – 4855R – RG180BU) |
The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF
The TLG110 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1062-NGAB
XBT-1062-NGBA
XBT-1062-NGAS
XBT-1068-NGAS
