The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF

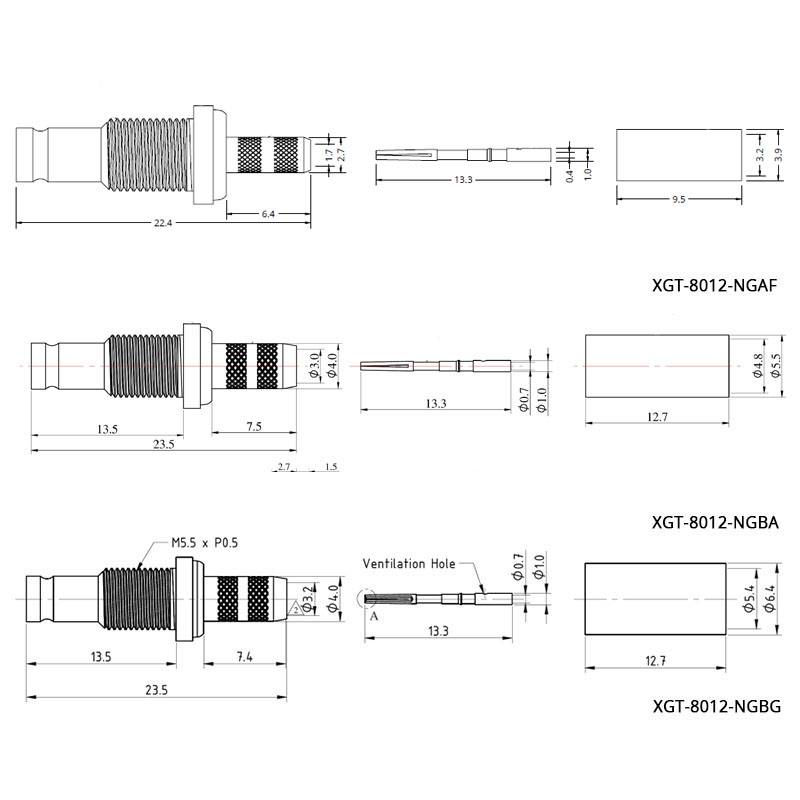

The XGT-8012-NGXX is a cable-mounted socket for frequencies up to 6GHz, depending on the cable type selected. Made for cable of 75Ω rating, the connector is suitable for cable groups AF (RG179B/U) and BA (1855A, 4855R and mini RG59) and BG (UHD 0.6/2.6 B1855A & B4855R & B1855ENH).
The following tools are recommended for use with this connector:
XGT-8012-NGAF = TLG 116
XGT-8012-NGBA = TLG 109 or TLG 110
XGT-8012-NGBG = TLG 116
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / Au plated |
| Insulators | PTFE |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Groups AF (RG179 – RG187 AU) Cable Groups BA (1855A – mini RG59 – 4855R – RG180BU) Cable Groups BG (UHD 0.6/2.6, B1855A, B4855R, B4855F, B1855ENH) |
The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF
The TLG110 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1062-NGAB
XBT-1062-NGBA
XBT-1062-NGAS
XBT-1068-NGAS
Crimp tool frame with die set to assemble XGT-8004-NGAF
