The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF

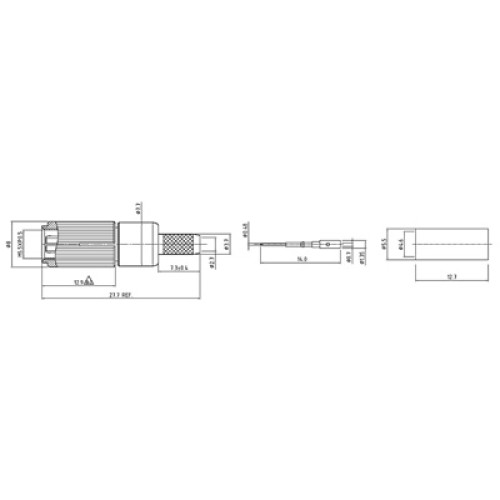

The XGT-8015-NGBA is a cable mounted DIN 1.0 / 2.3 which features a screw on locking system. The connector is suitable for cables in the BA group of cables including 1855A, 4855R and mini RG59. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be acheived over a single connection.
The following tools is recommended for use with this connector:
XGT-8015-NGBA = TLG 109 or TLG 110
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Au plated |
| Insulators | PTFE |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group BA (1855A – mini RG59 – 4855R – RG180BU) |
The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF
The TLG110 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1062-NGAB
XBT-1062-NGBA
XBT-1062-NGAS
XBT-1068-NGAS
