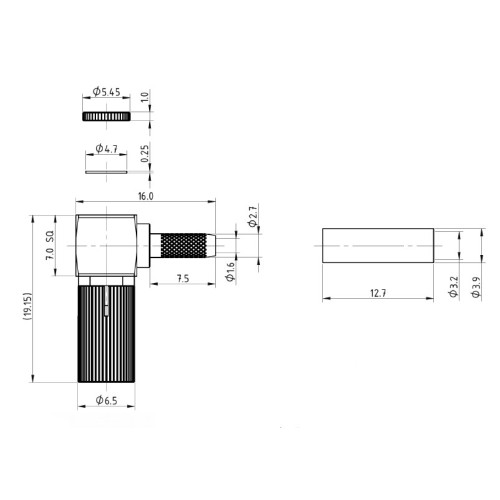

The XGT-8016-NGAF is a right-angled cable mounted DIN 1.0 / 2.3 which features a screw-on locking system. The connector is suitable for cables in the AF group of cables including RG179 and RG187 AU. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be achieved over a single connection.
The following tool is recommended for use with this connector:
XGT-8016-NGAF = TLG 116
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Ni / Au plated |
| Insulators | PTFE |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AF (RG179 and RG187 AU) |
