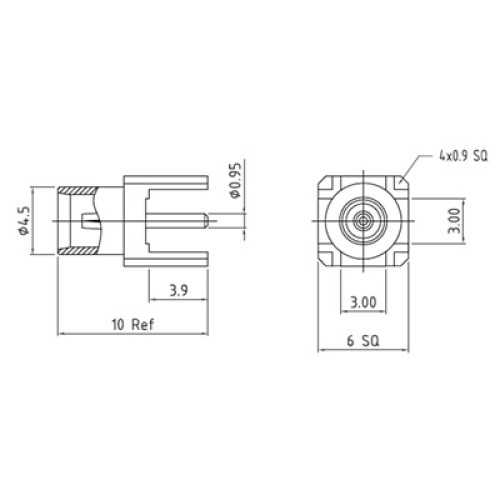

The XJT-A006-GGAY is a top entry PCB mounted MCX socket which supports frequencies up to 3GHz. The connector is compatible with the SMPTE 424M for 3G-SDI with bitrates of 2.970Gbits/s over a single channel.
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Metal Parts | Brass / Au |
| Centre Pin | Brass / 3µ Au |
| Insulators | PTFE |
