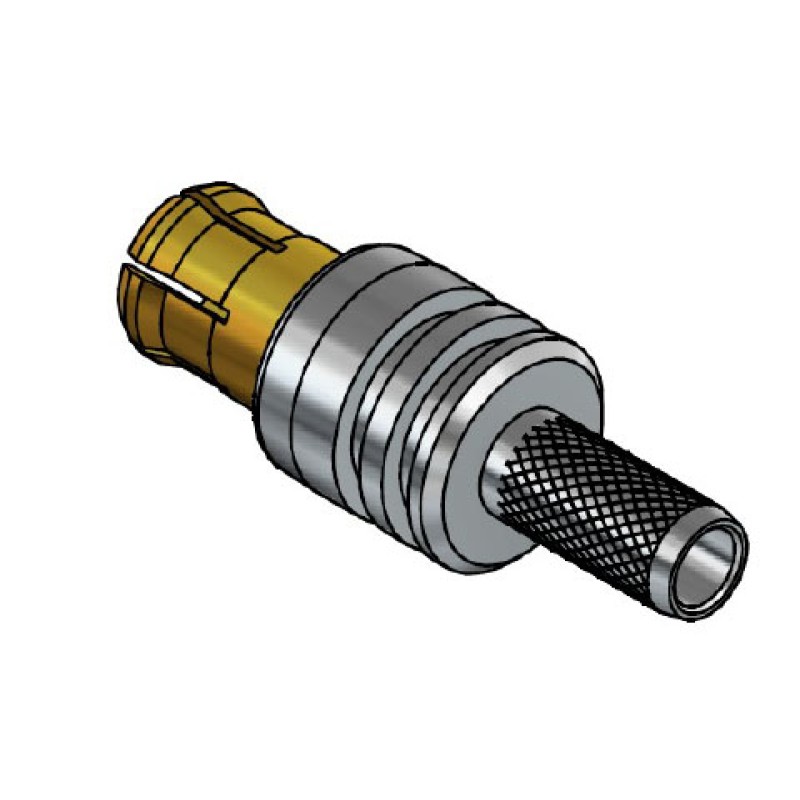

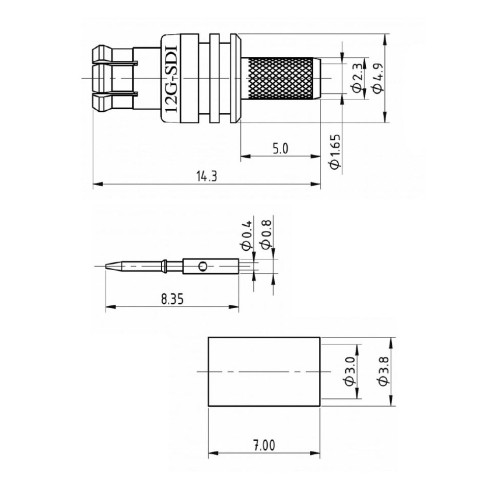

The XJT-A009-GGAF connector is a straight cable mounted plug, designed for use up to 12GHz. The connector is suitable for cables in the group AF including RG179 and RG187 AU.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 335Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Centre Contact Resistance | less than 5mΩ |
| Outer Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1GΩ |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | Brass / Ni / Au |
| Insulators | PTFE |
| Temperature Range | -65 to +165°C |
