Our range of Precision Micro BNC coaxial connectors are optimised for 12GHz, 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress CXP-12 specification. These high performance connectors allow you to achieve up to 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using CEI connectors CoaxVisionTM Micro BNC Connectors in both halves.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 500Vrms |
| Contact Resistance | Centre contact 5.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.01(max) DC – 6GHz 1.01(max) 6 – 12GHz 1.04 (max) 12 – 25GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:

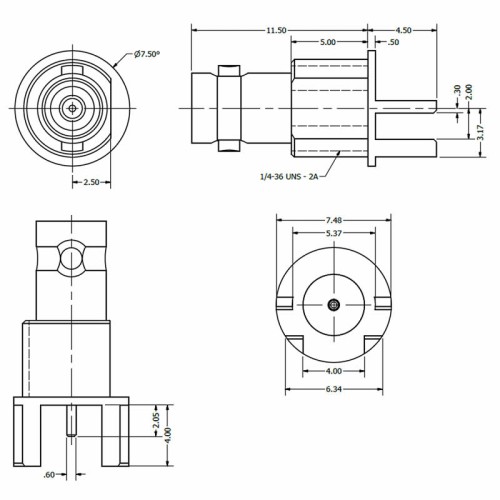

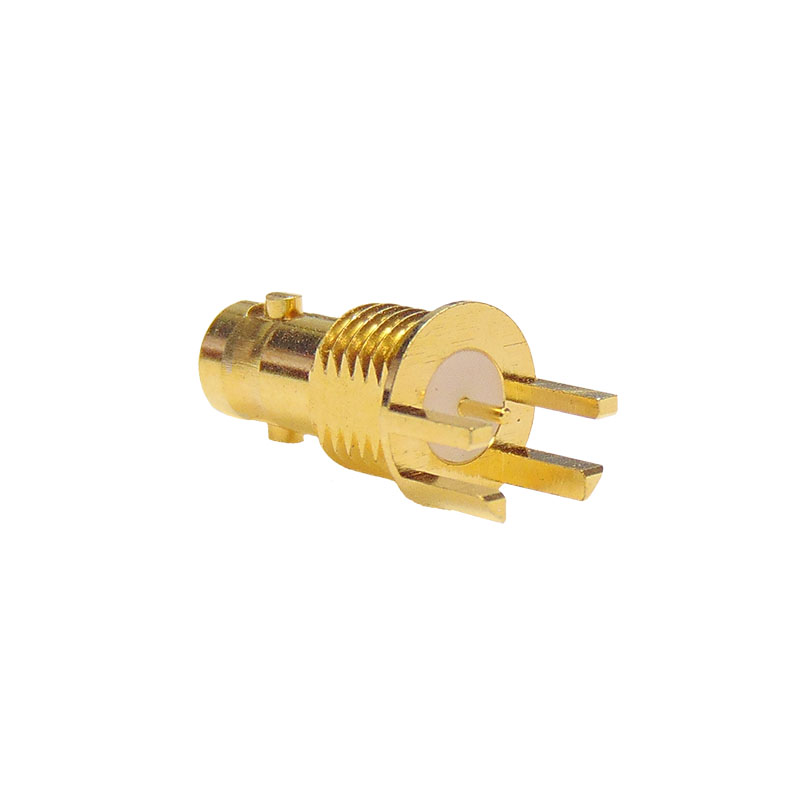

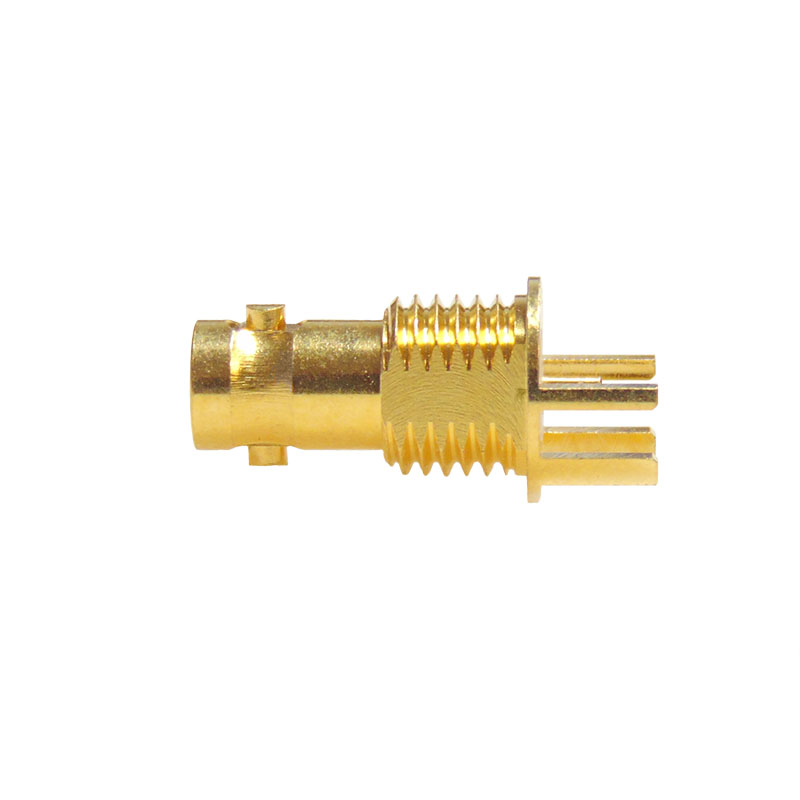

XPS-12-EB16-GG is the connector only part
XPS-12-EB16-GG-AZ supplied with a 2 slot circular nut (formerly C-SX-147)
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | Available separately |
| Processing | Hand soldering to a maximum temperature of 245°C |

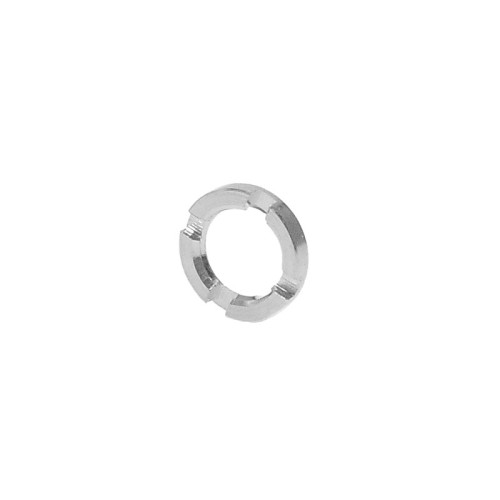

The ANP-C4-CSN-1.50 is a 4 slot circular Micro BNC nut which is 1.5mm thick and made from mild steel with a nickel plating. This nut is for use with single port Micro BNC with a thread size of 1/4-36 UNS – 2B. The nut can also be used with our magnetic Micro BNC nut driver, TLG 121.
This part was previously sold as part number 71X-0064-33.

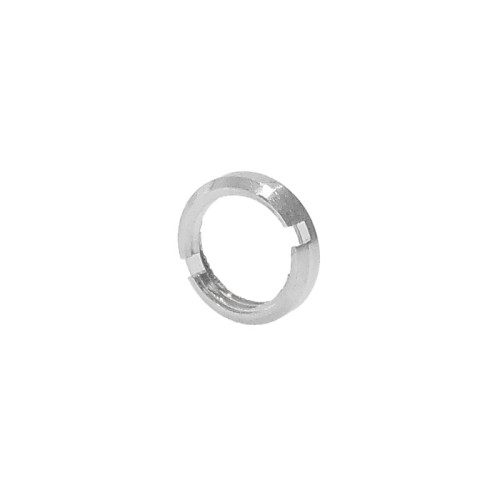

The ANP-C2-CBN-1.60 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
This part was previously sold under part number 71X-0067-33.
The ANP-C2-CBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
