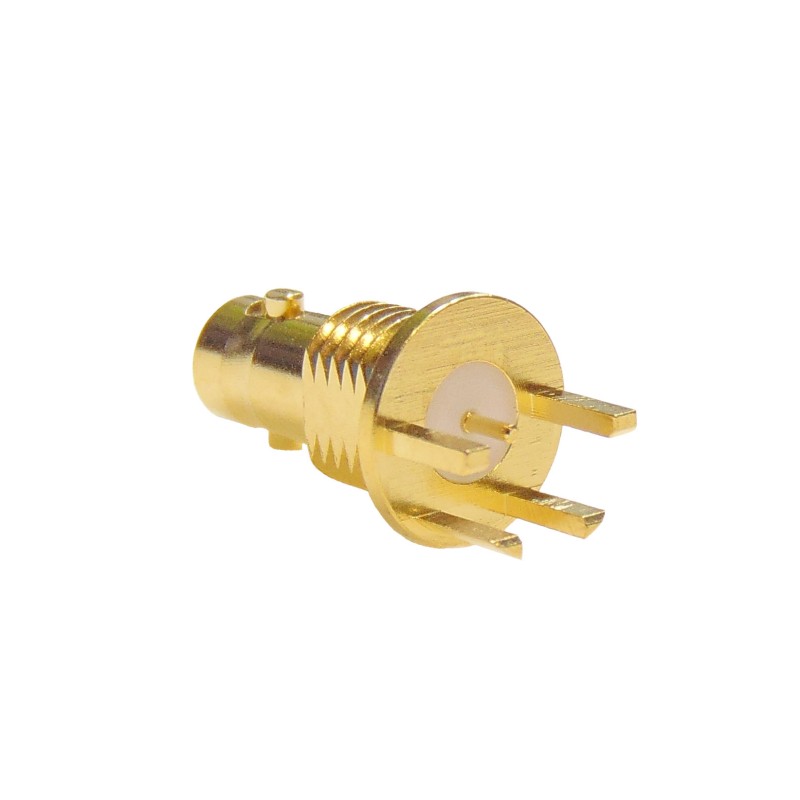

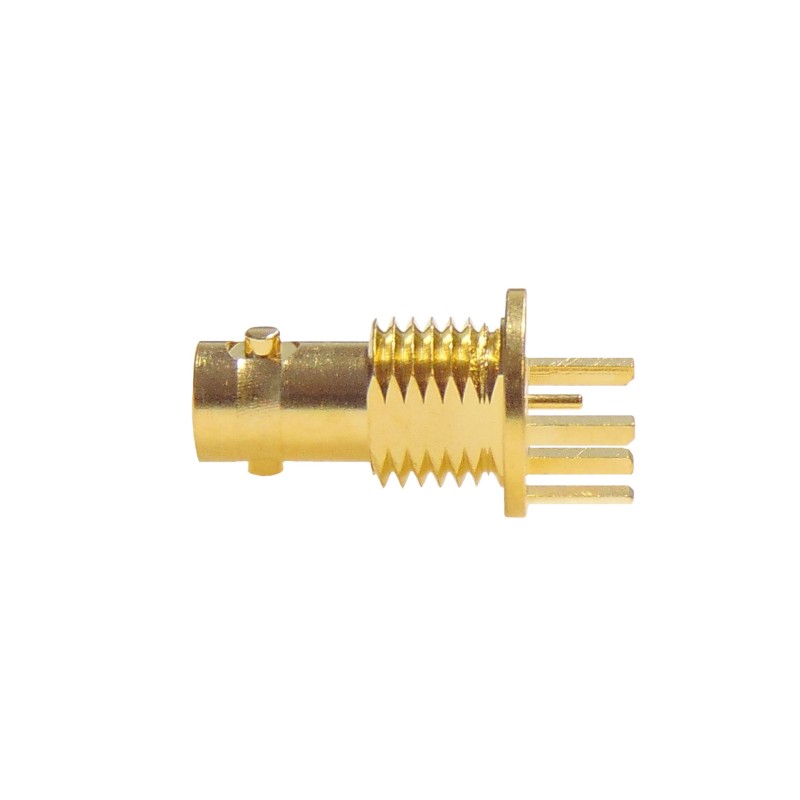

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/ Quad HD and Ultra HD Broadcast applications while also meeting the JIIA CoaXPress CXP12 specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz Micro BNC Connectors in both halves. The XPS-12-EB23-GGO connector is a PCB edge mounting Micro BNC bulkhead socket for PCB thicknesses of 2.3mm and has an enlarged flange.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 500Vrms |
| Contact Resistance | Centre contact 5.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.07 (max) DC – 12.0GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:
XPS-12-EB23-GGO as a connector only part
XPS-12-EB23-GGO-AZ when supplied with a 2 slot circular nut (formerly C-SX-176)
| Mounting Type | Edge Mounted |
| Board Thickness | 2.3mm |
| Hardware | Available separately |
| Processing | Maximum hand soldering temperature 265°C |
The ANP-C4-CSN-1.50 is a 4 slot circular Micro BNC nut which is 1.5mm thick and made from mild steel with a nickel plating. This nut is for use with single port Micro BNC with a thread size of 1/4-36 UNS – 2B. The nut can also be used with our magnetic Micro BNC nut driver, TLG 121.
This part was previously sold as part number 71X-0064-33.
The ANP-C2-CBN-1.60 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
This part was previously sold under part number 71X-0067-33.
The ANP-C2-CBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
