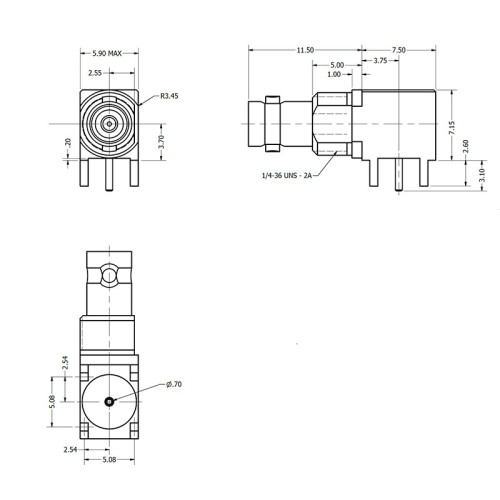

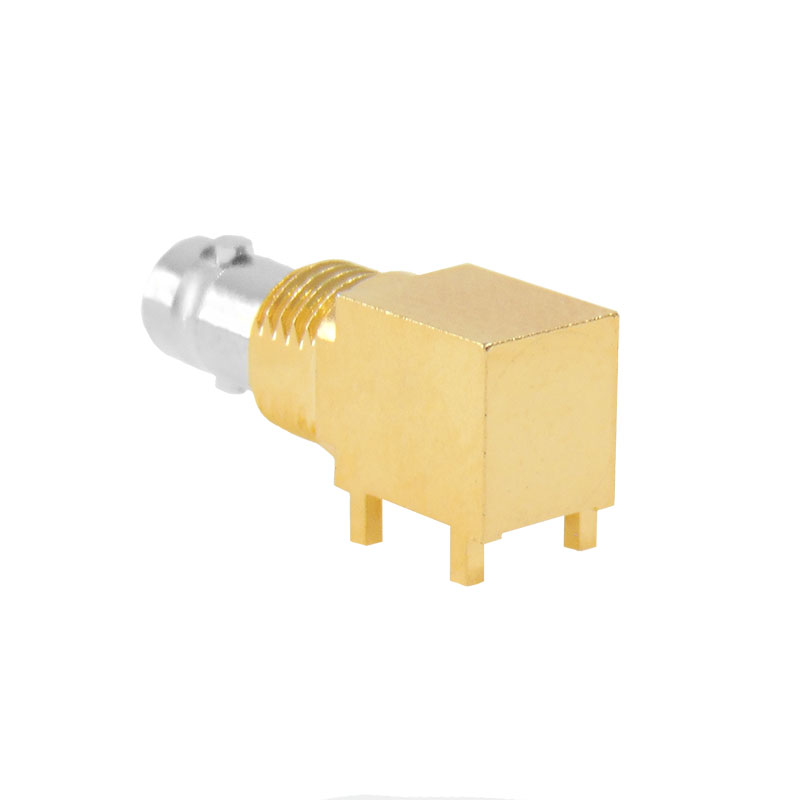

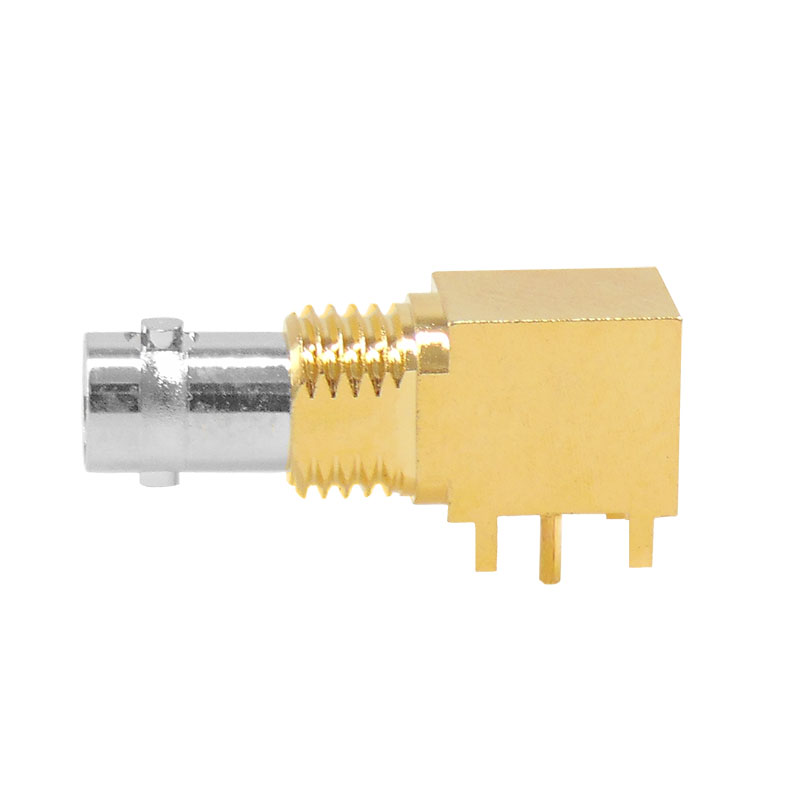

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-RB26-GN is a right angle slim body PCB Bulkhead Micro BNC socket with a 3.1mm leg length. The connector as been optimised to work in conjunction with our XPS-12-RA20-NND dual port micro BNC connector.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 500Vrms |
| Contact Resistance | Centre contact 5.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.09 (max) DC – 6GHz 1.19 (max) 0 – 12GHz |
| Connector Type | Female |
| Metal Parts | Brass/Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:
XPS-12-RB26-GNA as a connector only part
XPS-12-RB26-GNA-AZ when supplied with a 2 slot circular nut (formerly C-SX-208)
| Mounting Type | Right Angled |
| Leg Length | 2.6mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 245°C |
The ANP-C4-CSN-1.50 is a 4 slot circular Micro BNC nut which is 1.5mm thick and made from mild steel with a nickel plating. This nut is for use with single port Micro BNC with a thread size of 1/4-36 UNS – 2B. The nut can also be used with our magnetic Micro BNC nut driver, TLG 121.
This part was previously sold as part number 71X-0064-33.
The ANP-C2-CBN-1.60 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
This part was previously sold under part number 71X-0067-33.
The ANP-C2-CBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
