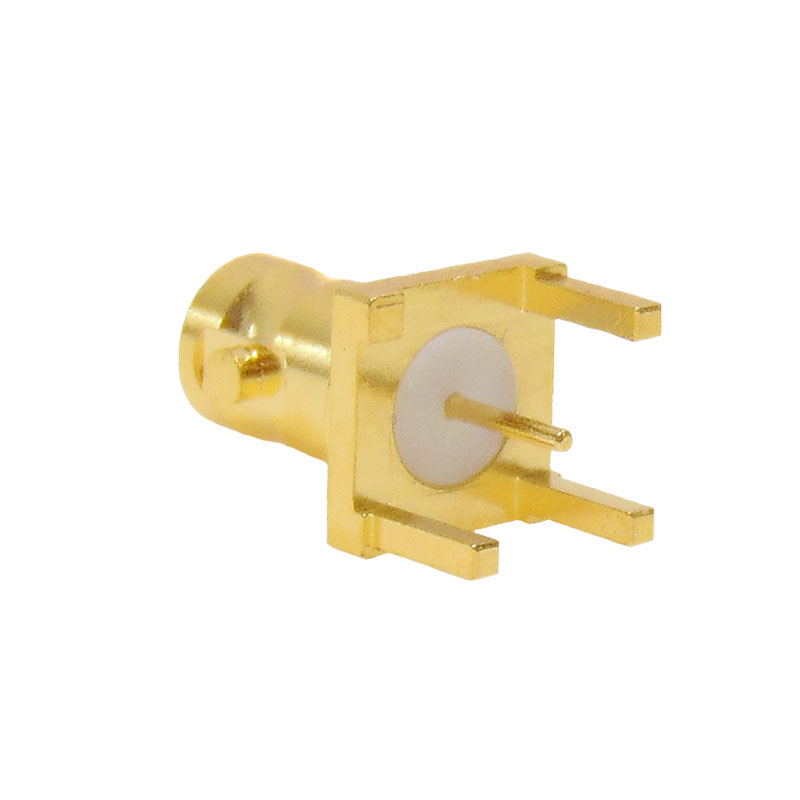

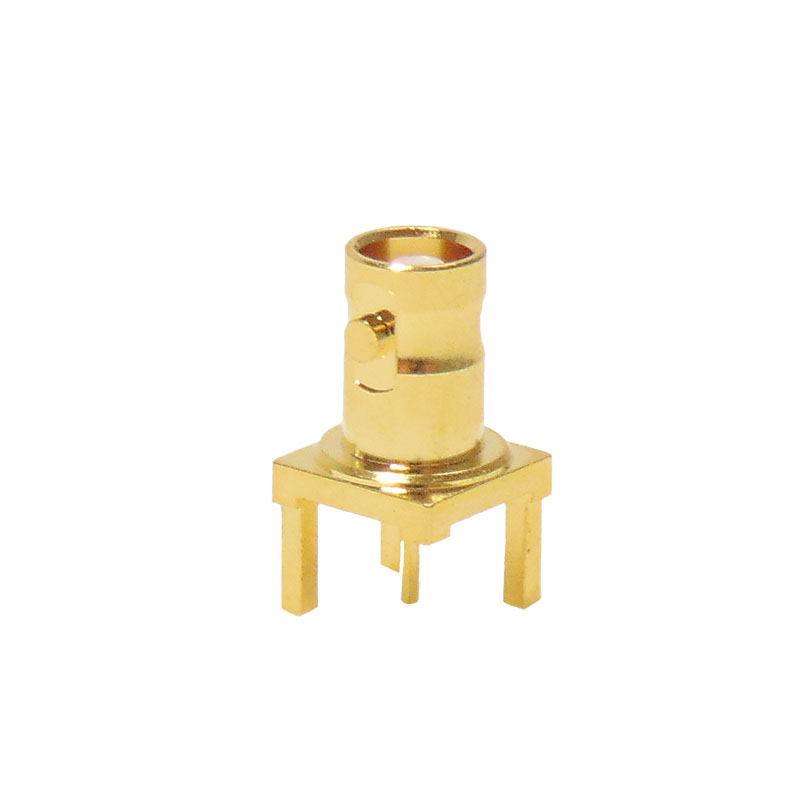

XPS-12-TE37-GGI – 75Ω Micro BNC Socket 12GHz Top Entry, 3 x 3.7mm Leg
XPS-12-TE37-GGI – 75Ω Micro BNC Socket 12GHz Top Entry, 3 x 3.7mm Leg

XPS-12-TE37-GGI – 75Ω Micro BNC Socket 12GHz Top Entry, 3 x 3.7mm Leg

Product Code: XPS-12-TE37-GGI

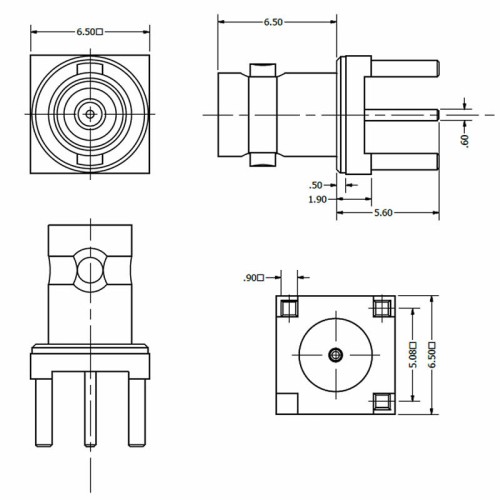

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-TE25-GGIL connector is a PCB top entry Micro BNC bulkhead which features 3 mounting pins and has a short body profile. The connector is suitable for PCB’s up to 3.6mm thick.

This connector was formerly sold as:
C-SX-140

Impedance 75Ω
Frequency Range 0 -12GHz
Working Voltage 170Vrms
Dielectric Withstanding Voltage 500Vrms
Contact Resistance Centre contact ≤5.0mΩ
Outer contact ≤2.5mΩ
Insulation Resistance ≥1000MΩ
Reflection Factor (VSWR) 1.04(max) DC – 6GHz
1.08(max) 6 – 12GHz
Connector Type Female
Metal Parts Brass / Au
Centre Pin BeCu / 10µ Au
Insulators PTFE
Temperature Range -65 to +85°C
Mating Cycles 500
Mounting Type Top Entry
Leg Length 3.7mm
Processing Maximum hand soldering temperature 245°C
Features 3 Legs
