Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are
mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs, designed for use with 12GHz cable (such as Belden 1855A).

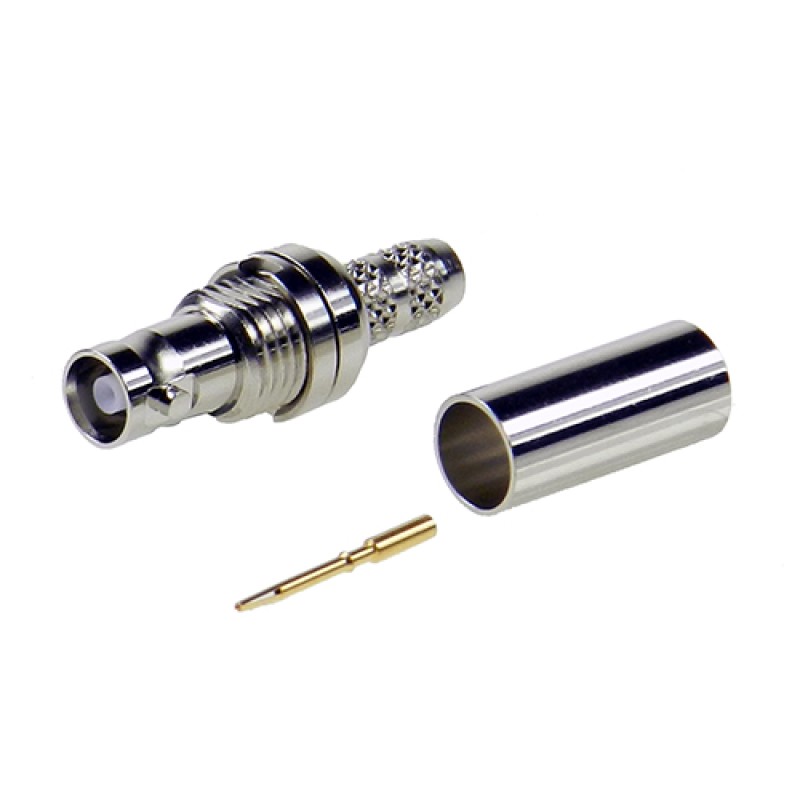

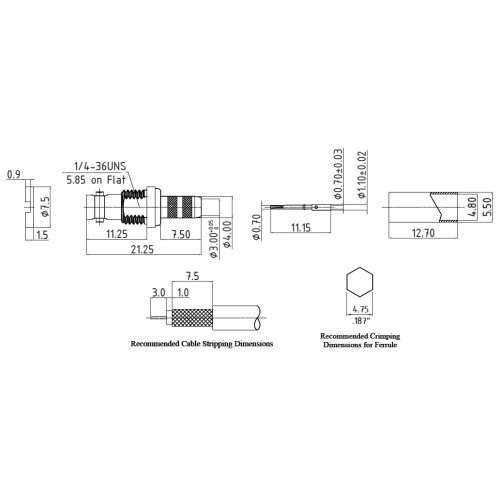

The XPT-D002-NGBA connector is a cable mounted Micro BNC bulkhead socket, which can be used with Belden cables for 12G applications and has a bayonet coupling.
The following tools are recommended for use with this connector:
XPT-D003-NGBA = TLG 109 or TLG 110
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1000Vrms |
| Contact Resistance | Centre contact ≤3mΩ Outer contact ≤2.5mΩ |
| Insulation Resistance | ≥5G Ω |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | BeCU /Ni/ 3µ Au |
| Temperature Range | -65 to +165°C |
| Mating Cycles | 500 |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group BA (1855A – mini RG59 – 4855R – RG180BU) |
The TLG109 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XGT-8000-NGAF
XGT-8000-BGAB
XGT-8000-NGBA
XGT-8012-NGAF
XBT-1062-NGAF
The TLG110 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1062-NGAB
XBT-1062-NGBA
XBT-1062-NGAS
XBT-1068-NGAS
