Product Code: ZBP-00-CST-NNAD

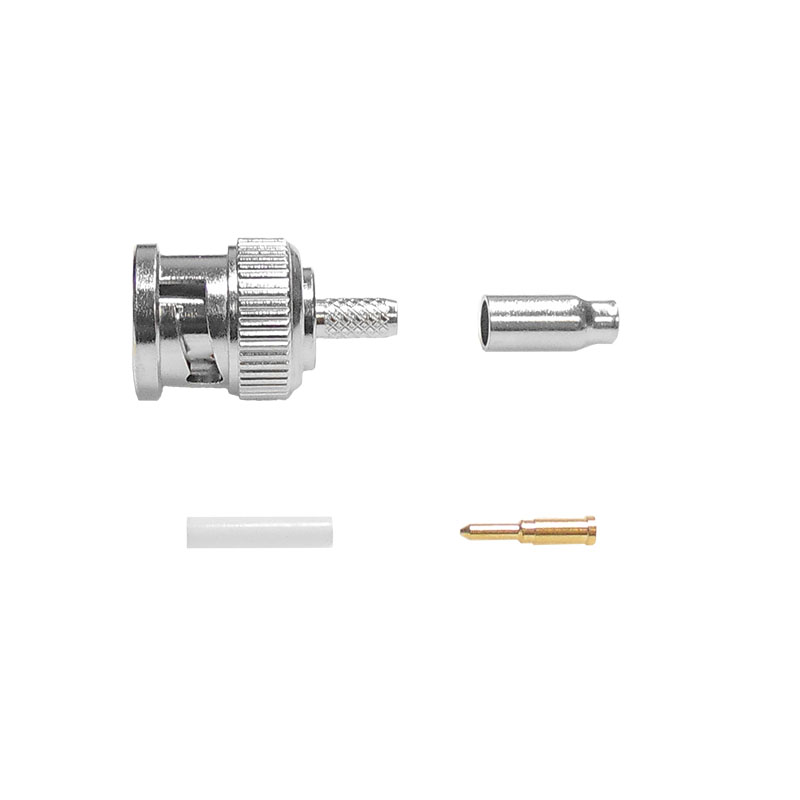

The ZBP-00-CST-NNAD cable mounted BNC plug is a 50 ohm connector offering speeds of up to 500MHz and is designed for use with an RG 174 cable (cable group AD).

The connector can be purchased as a connector only product or can be offered as part of a complete cable assembly to your design.

Impedance 50Ω
Frequency Range 0 – 500MHz
Mounting Type Cable Mounted
Cable Types Cable Group AD RG188A/U, RG316/U and RG174/U, Cable Group AD RG188A/U, RG316/U and RG174/U
