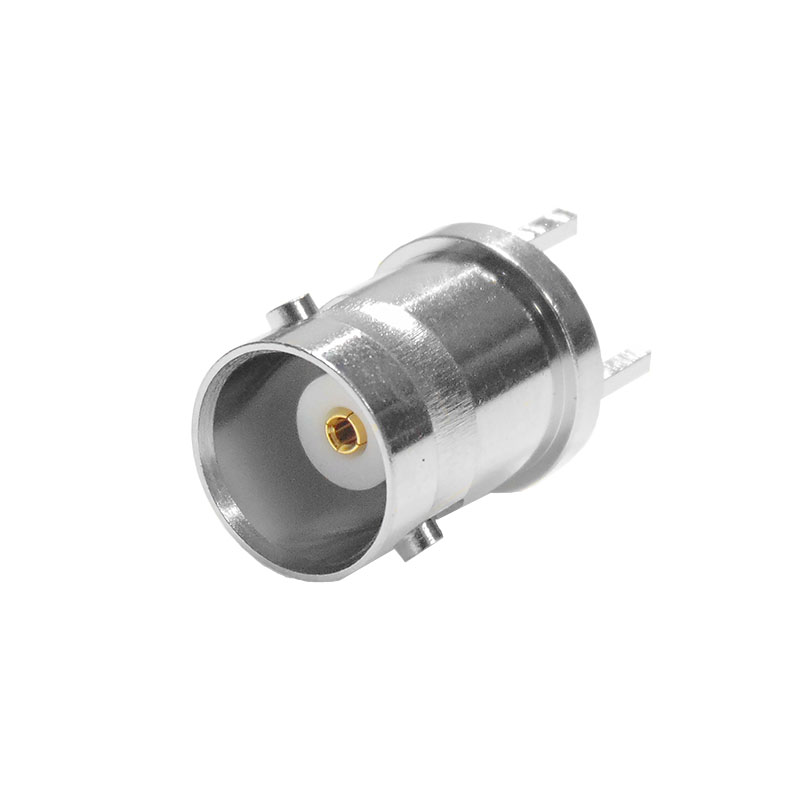

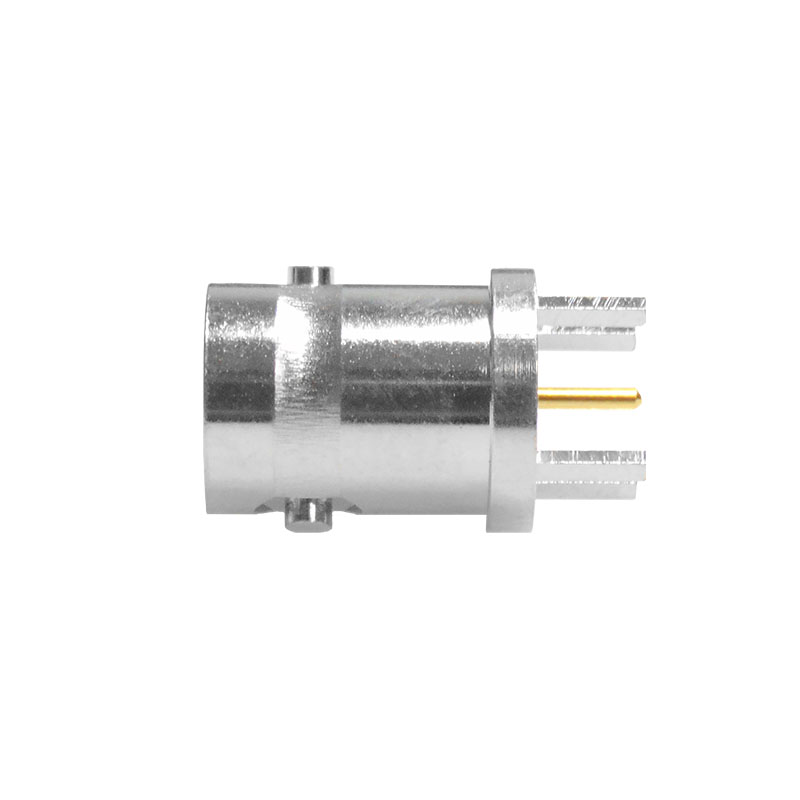

The ZBS-04-TE46-NN is a female top entry BNC connector. This 4 leg board mounted connector offers frequencies up to 4GHz in a 50 ohm format. The connector features a gold plated pin with a protective sleeve around the contact.
| Impedance | 50Ω |
| Frequency Range | 0 – 4GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Brass / Au plated |
| Insulators | PFTE |
| Temperature Range | -65 to 85°C |
| Processing | Hand or wave soldering |
| Mounting Type | Top Entry |
| Leg Length | 4.6mm |
| Hardware | None |
