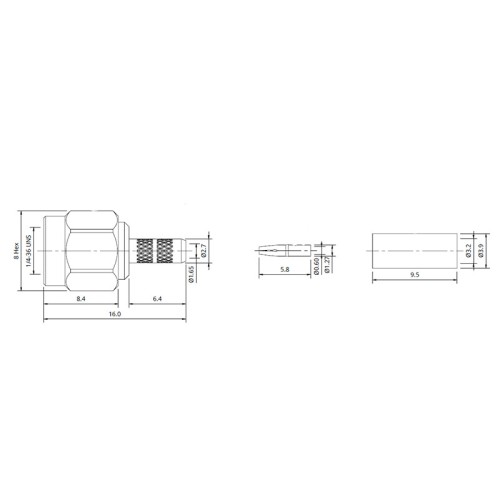

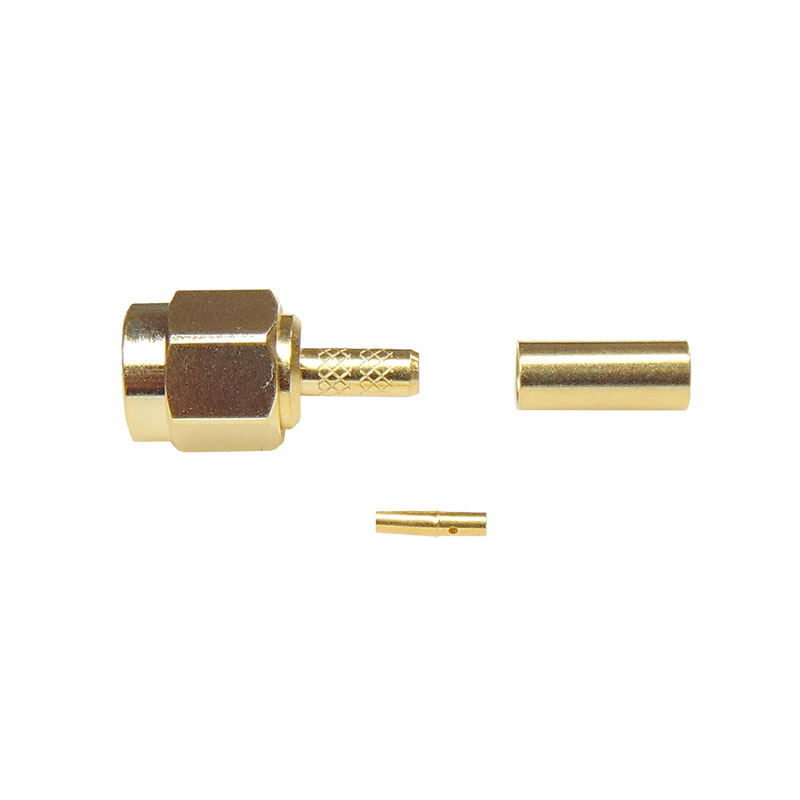

The ZCP-06-CST-GGAD is a cable mounted SMA plug which is design to fit an RG174 cable (cable group AD). The connector works for all frequencies up to 6GHz.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Connector Type | Male |
| Metal Parts | Brass / Au |
| Centre Pin | Brass / 30µ Au |
| Insulators | PTFE |
| Mounting Type | Cable |
| Hardware | None |
| Processing | Crimp |
