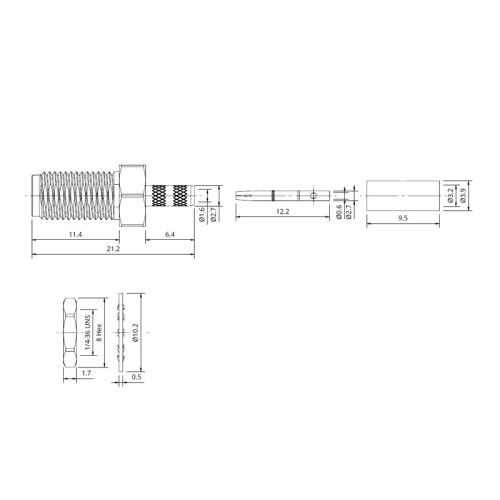

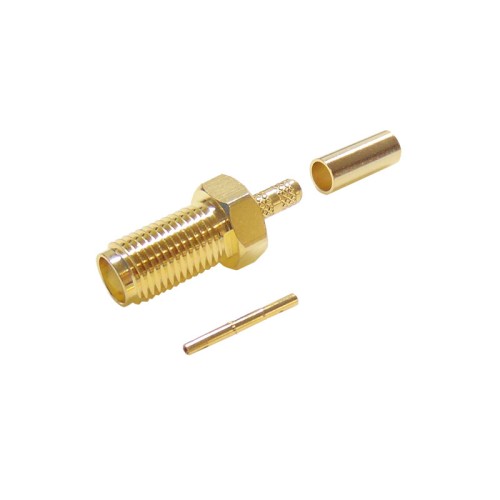

The ZCS-06-CSB-GGAD is a straight bulkhead cable mounted SMA socket which supports speeds up for 6GHz and can be used with cables in the AD group including RG174.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Connector Type | Female |
| Centre Pin | BeCu / 10µ Au |
| Metal Parts | Brass / Au |
| Insulators | PTFE |
| Mounting Type | Cable |
| Hardware | Supplied by hex nut and washer |
| Processing | Crimp |
