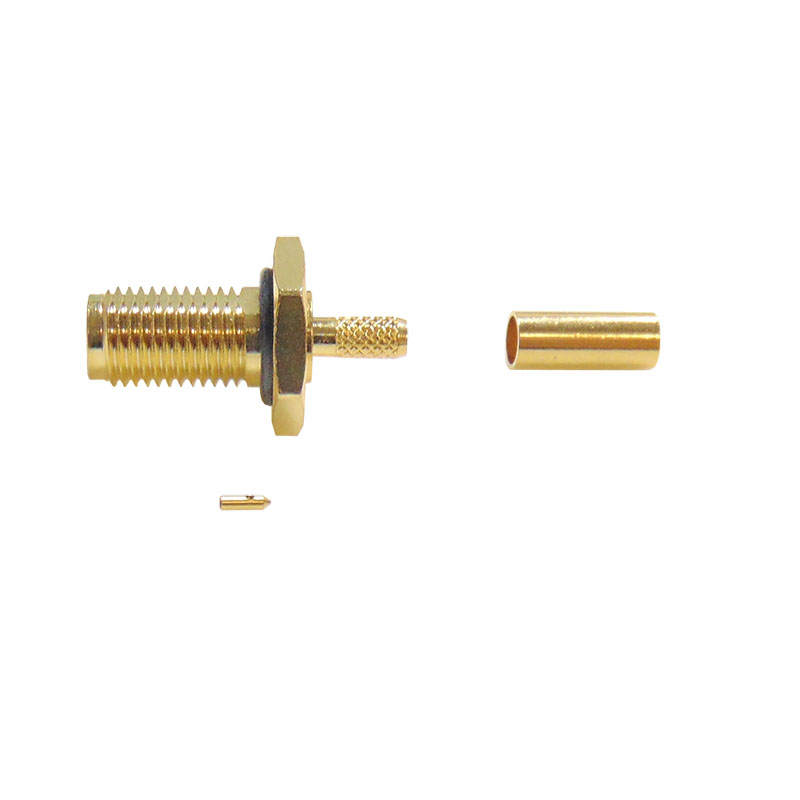

The ZCS-06-CSB-GGAD-EW is a cable mounted SMA socket connector that works up to a speed of 6GHz. The connector features a bulkhead thread and an enlarged flange to set against a bulkhead. The connector is designed for RG405 which is in the AD cable group. The connector also features an o-seal ring which offers protection up to an IP67 rating against moisture and dust.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Seal | Silicon Rubber |
| Mounting Type | Cable |
| Hardware | Supplied by hex nut and washer |
| Processing | Crimp |
