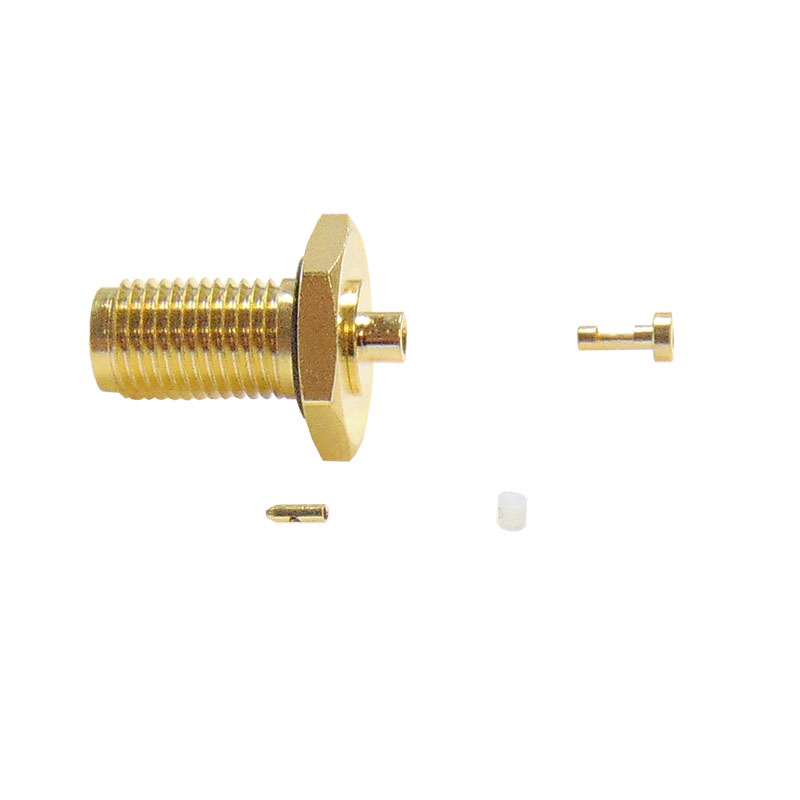

The ZCS-06-CST-GGAW-W is a cable mounted straight SMA socket connector which works for all frequencies up to 6GHz. The connector is designed to be used with all cables in the AW cable group (0.8/1.13/1.32) and features a waterproof seal offering protection up to an IP67 rating.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / Au |
| Insulators | PTFE |
| Seal | Silicon Rubber |
| Mounting Type | Cable |
| Hardware | Supplied by hex nut and washer |
| Processing | Crimp |
