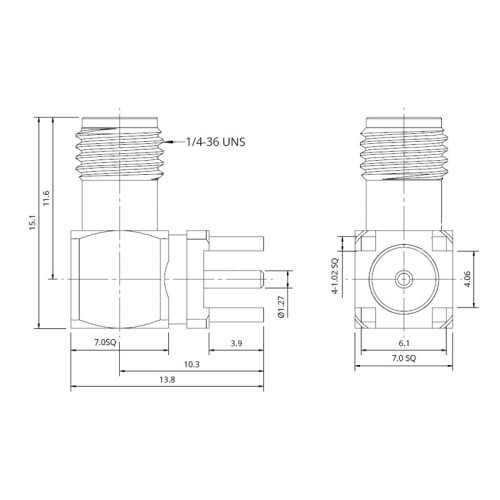

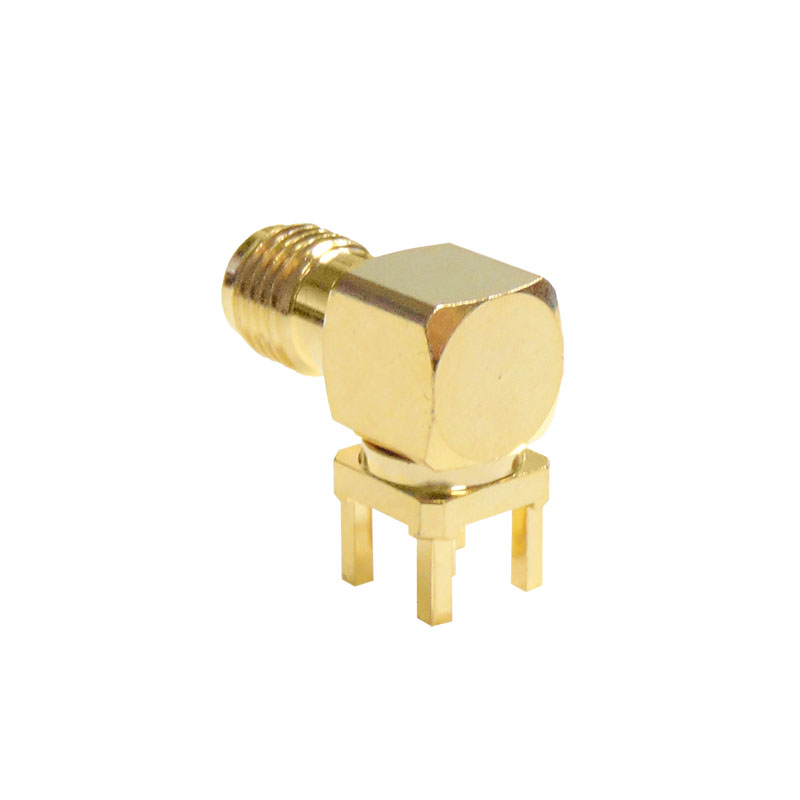

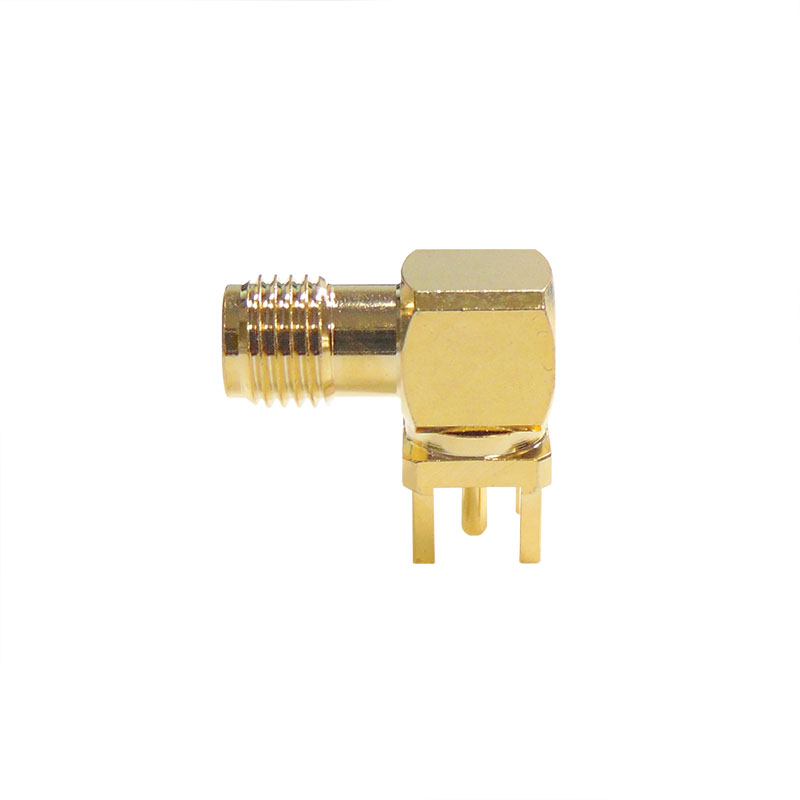

The ZCS-06-RB39-GG is a right angle PCB mounted SMA socket connector that works up to a speed of 6GHz. The connector features a bulkhead and is suitable for boards up to a thickness of 3.8mm.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 30µ Au |
| Insulators | PTFE |
| Mounting Type | Right Angled |
| Processing | Hand or wave soldering |
