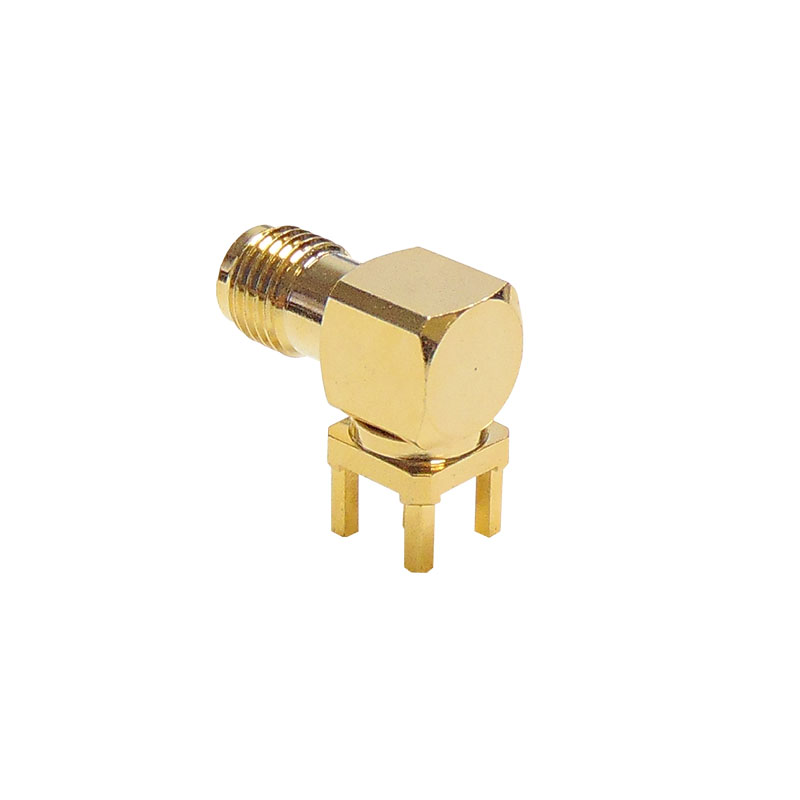

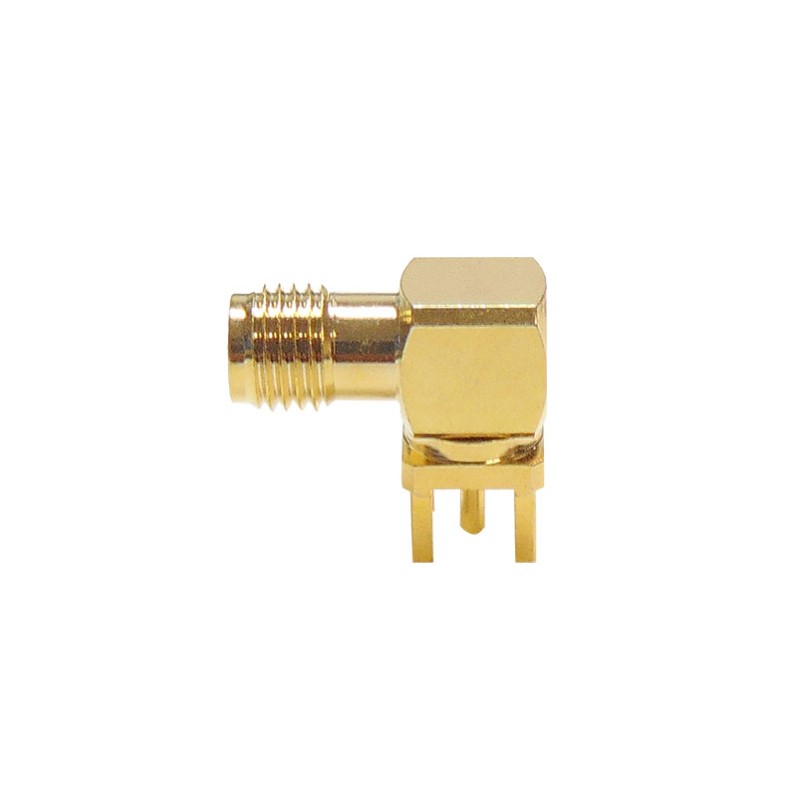

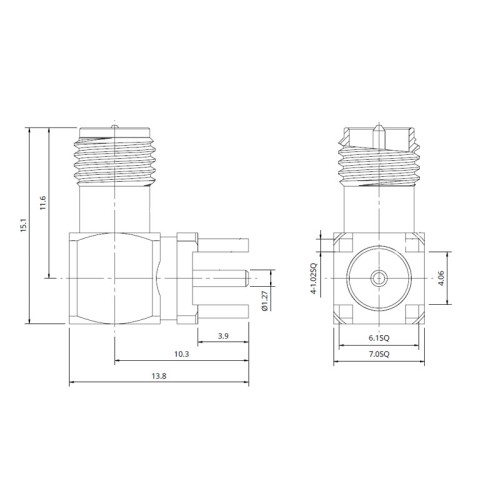

The ZCS-06-RB39-GG-Y is a right-angled PCB mounted SMA connector designed with reverse polarity. The connector features bulkhead mounting and a 3.9mm leg, which allows for mounting on boards up to 3.8mm in thickness. The connector offers all frequencies up to 6GHz.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Mounting Type | Right Angled |
| Processing | Hand or wave soldering |
