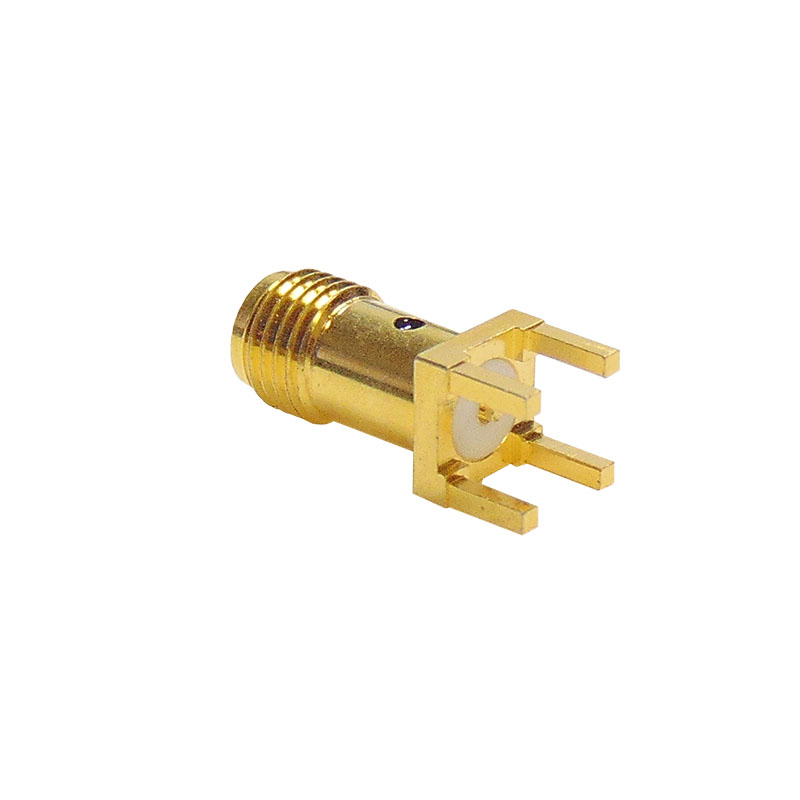

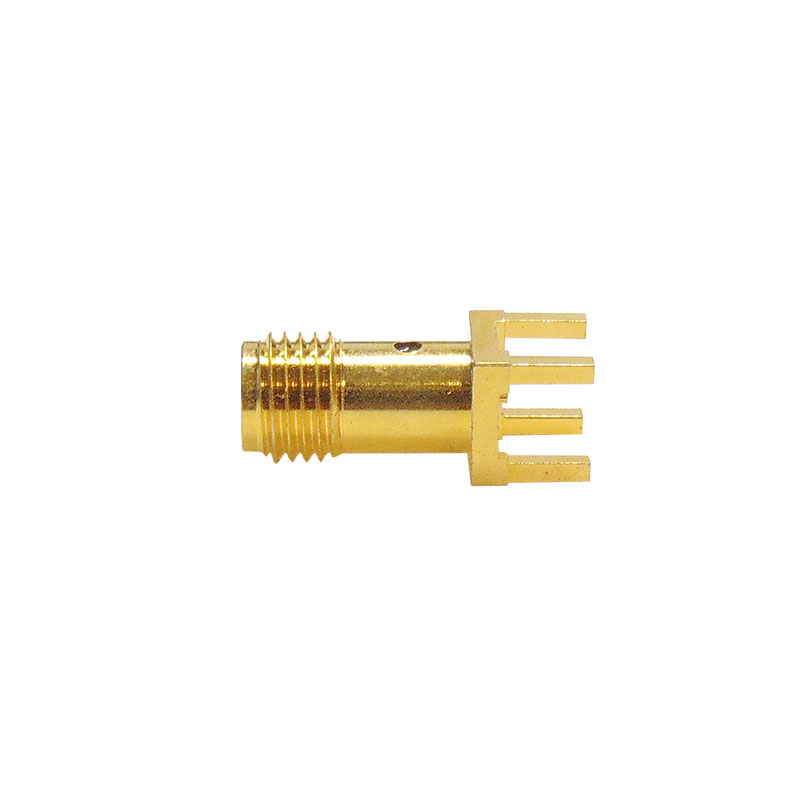

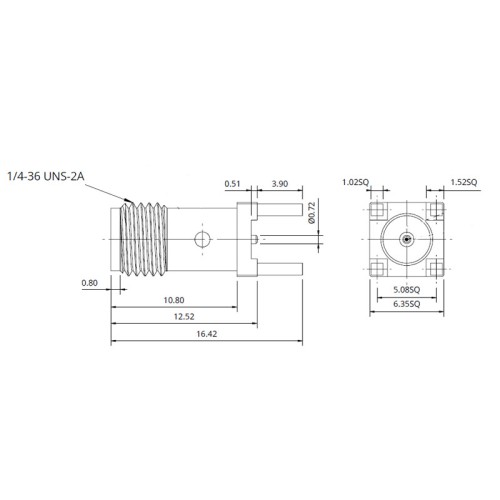

The ZCS-26-TB39-GGN is a top entry PCB mounted SMA socket that works at all frequencies up to 26.5GHz. The connector features a bulkhead thread and is designed for boards up to a thickness of 3.8mm.
| Frequency Range | 0 -26.5GHz |
| Dielectric Withstanding Voltage | 1000Vrms |
| Centre Contact Resistance | less than 3mΩ |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 30µ Au |
| Insulators | PTFE |
| Mounting Type | Top Entry |
