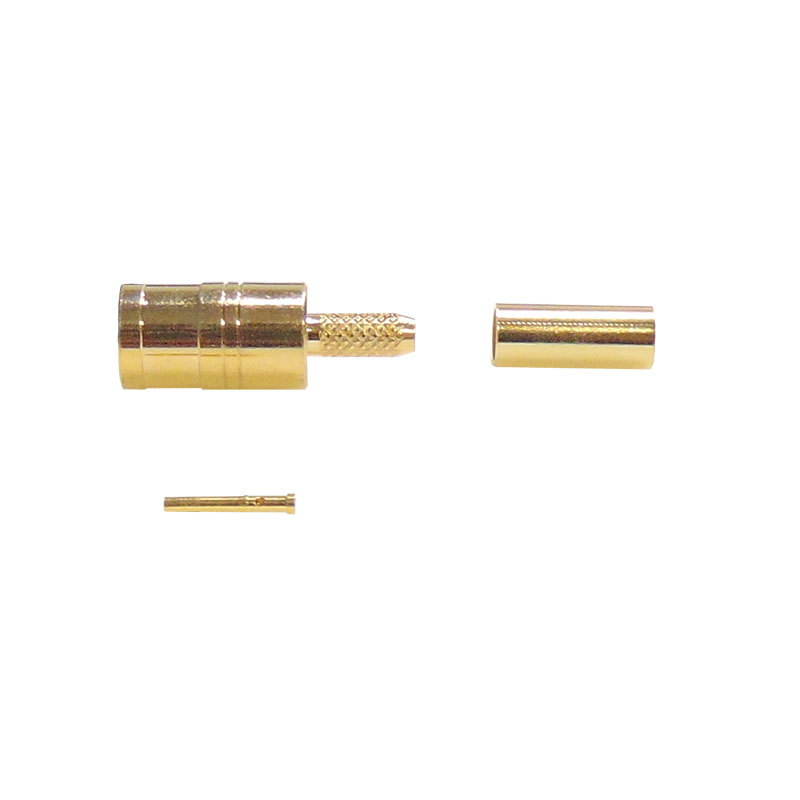

The ZDP-04-CST-GGAD is a straight cable mounted SMB plug which is rated for all frequencies up to 4GHz. The connector is designed for RG174 cable.
| Impedance | 50Ω |
| Frequency Range | 0 – 4GHz |
| Connector Type | Male |
| Metal Parts | Brass / Au |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Mounting Type | Cable |
| Hardware | None |
| Processing | Crimp |
